Installation Instructions:
Refer to the Faber U&C Guides for detailed installation instructions specific to your range hood model.
Pre-Planning Your Installation:
- Electric Cooktops: Install the hood at a minimum of 24" above the cooktop.
- Gas Cooktops: Install the hood at a maximum of 30" above the cooktop.
Important: Always consult the cooktop manufacturer’s recommendations for optimal installation.

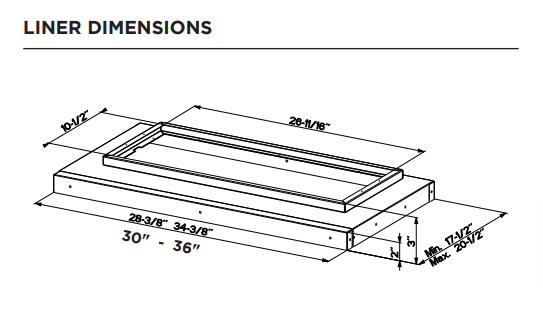

Liner Dimensions:
| Model | Wood Hood Exterior Width | Interior Cabinet/Cut Out Width (X) | Interior Cabinet Depth/Cut Out (Y) | Width (No Back Panel) | Width (With Back Panel) |
|---|---|---|---|---|---|
| LINSPT301228 | 30 inches | 28 3/8" | 17 1/2" - 20 1/2" | 28 1/2" | 17 1/8" - 20 1/8" |
| LINSPT361228 | 36 inches | 34 3/8" | 17 1/2" - 20 1/2" | 34 1/2" |

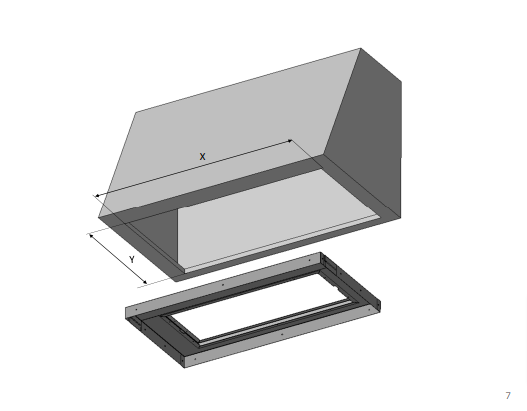

Cabinet Floor Cut-Out: In certain cases, a cut-out may be required on the cabinet floor. Refer to the provided figure to determine the cut-out dimensions based on your specific hood model.
Note: For walls less than 3/4" thick, additional trim may be required.
| Shipping | This item originates and ships within the United States. Will usually ship within 1 business day if in stock. *Note that due to recent supply chain delays, some products may be backordered, please call to confirm!* |
 |
Please allow 1-2 weeks for your order to arrive after shipping confirmation. Product ship times may be longer if freight carrier is required. We source products from US suppliers at the lowest prices. This means sometimes you may have to wait a little longer to get your order but it's always worth it! |
|
Description
Installation Instructions:
Refer to the Faber U&C Guides for detailed installation instructions specific to your range hood model.
Pre-Planning Your Installation:
- Electric Cooktops: Install the hood at a minimum of 24" above the cooktop.
- Gas Cooktops: Install the hood at a maximum of 30" above the cooktop.
Important: Always consult the cooktop manufacturer’s recommendations for optimal installation.
Liner Dimensions:
| Model | Wood Hood Exterior Width | Interior Cabinet/Cut Out Width (X) | Interior Cabinet Depth/Cut Out (Y) | Width (No Back Panel) | Width (With Back Panel) |
|---|---|---|---|---|---|
| LINSPT301228 | 30 inches | 28 3/8" | 17 1/2" - 20 1/2" | 28 1/2" | 17 1/8" - 20 1/8" |
| LINSPT361228 | 36 inches | 34 3/8" | 17 1/2" - 20 1/2" | 34 1/2" |
Cabinet Floor Cut-Out: In certain cases, a cut-out may be required on the cabinet floor. Refer to the provided figure to determine the cut-out dimensions based on your specific hood model.
Note: For walls less than 3/4" thick, additional trim may be required.
