Summit 24" Wide 3.7 cu. ft. Capacity, Field Reversible Doors, Right Hinge, Frost Free Defrost, Sabbath Mode, ADA Compliant - ALFZ53

$1,405.00 $1,790.00
You Save: $385.00 22%
Checkout Secure

Great reasons to buy from us:

  • Image of

    FREE SHIPPING

  • Image of

    GUARANTEED LOWEST PRICE

  • Image of

    FAST ORDER PROCESSING

  • Image of

    30 DAY MONEY BACK GUARANTEE

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.7 cu.ft. (105 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 345.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 82.0 lbs. (37 kg)
Shipping Weight 96.0 lbs. (44 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101075464
Freezer
Door Swing RHD
Reversible Yes
Interior Height 23.5" (60 cm)
Interior Width 18.75" (48 cm)
Interior Depth 15.5" (39 cm)
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.31 oz.
High Side PSI 270.0
Low Side PSI 105.0
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 18.75" (48 cm)
Compressor Step Depth 4.5" (11 cm)
Temperature Range -11°F to 11°F
Sabbath Mode Yes





FEATURES

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your freezer under the counter and flush with other cabinets

Frost-free operation

No-frost convenience eliminates the need to manually defrost the unit

Stainless steel door

Durable construction with a professional look

Digital thermostat

Electronic controls offer easy and intuitive temperature management

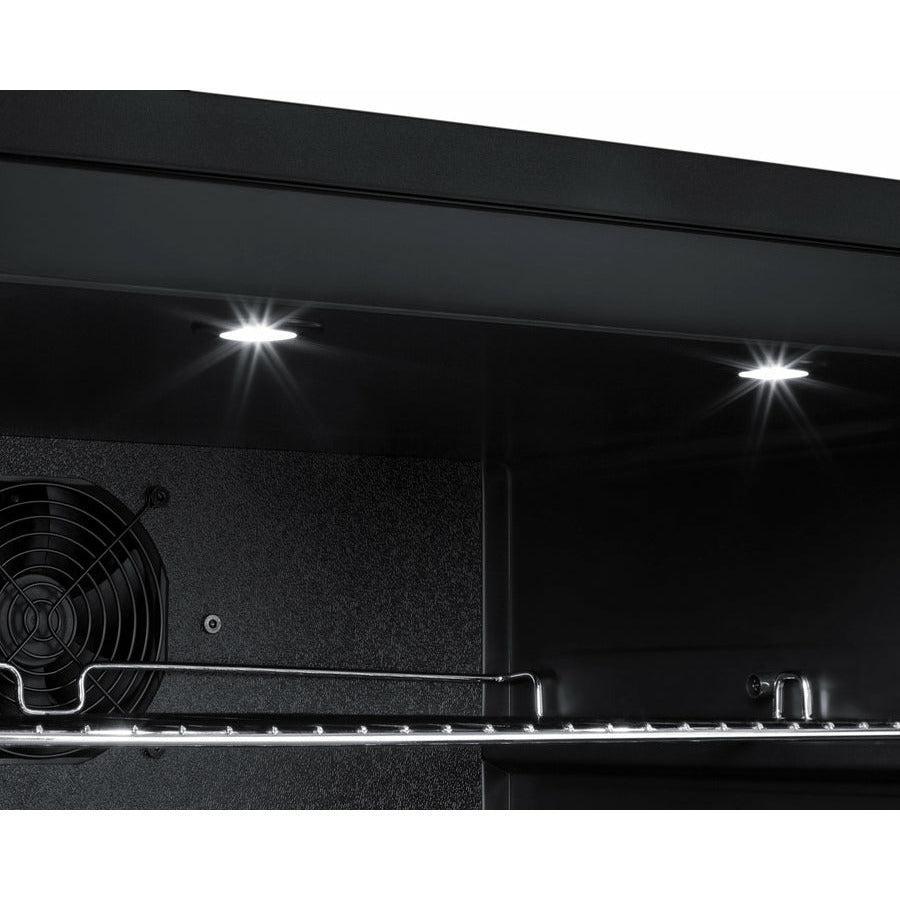

Recessed LED light

Elegant lighting with an on/off switch located on the control panel

Reversible door

User-reversible door swing for added flexibility

Adjustable shelves

Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Factory installed lock

Keyed lock for a secure interior (2 keys included)

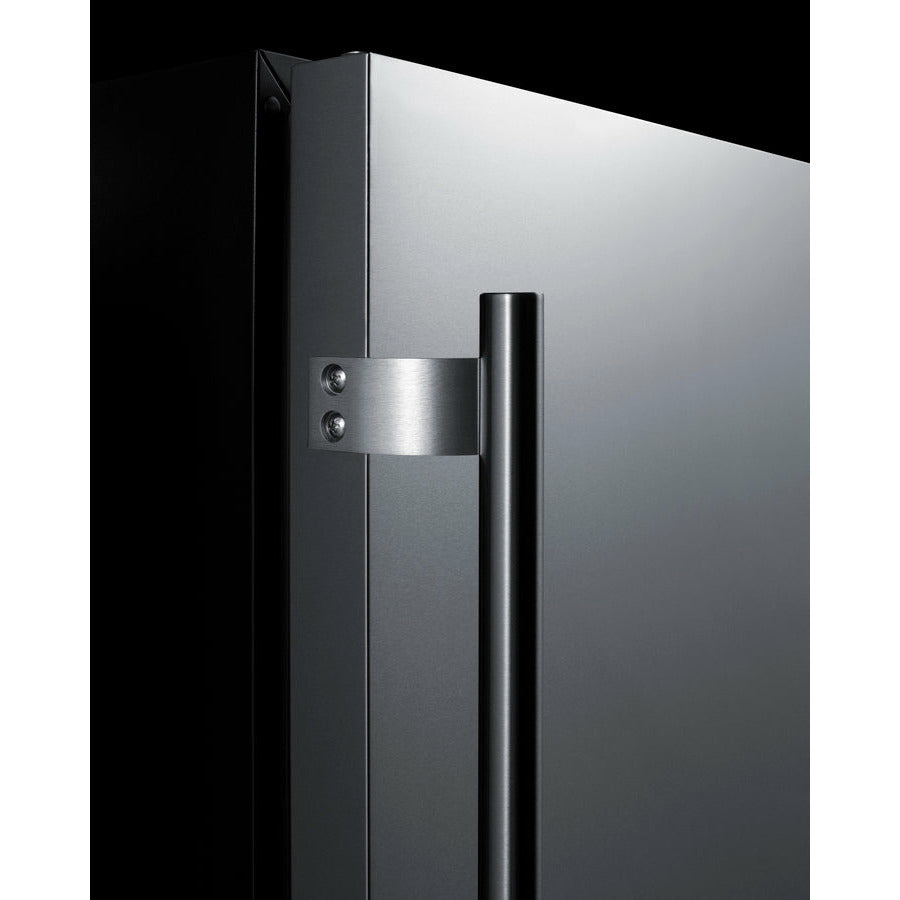

Professional handle

Attractive chrome handle adds a touch of modern style

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils for easier cleanability

Matching refrigerator available

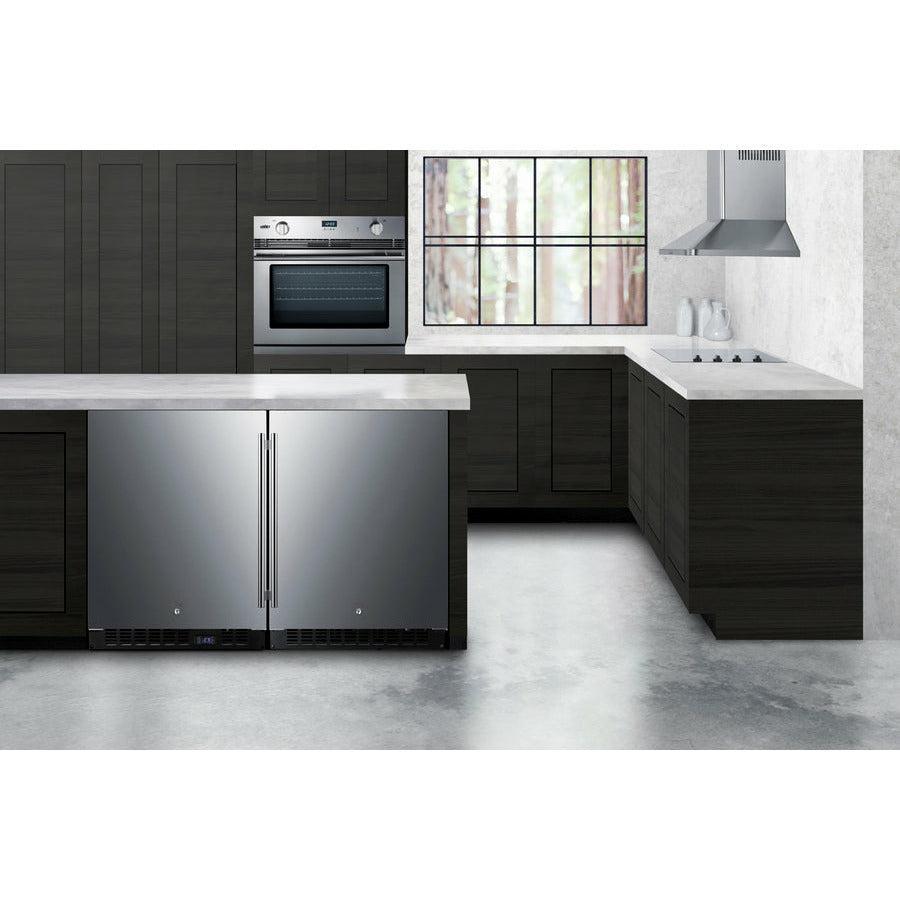

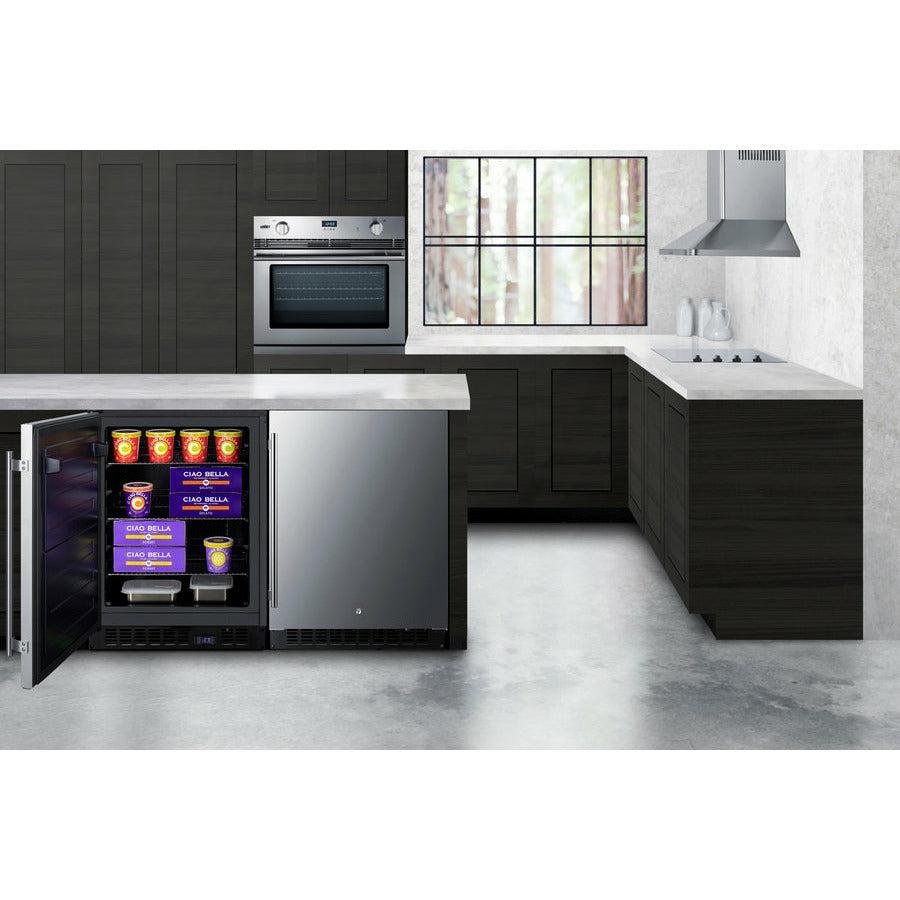

Pair with the AL54 for a matching side-by-side set under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards

Fully finished cabinet

Allows the freezer to be used as a freestanding model

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations





DESCRIPTION

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

Model ALFZ53 is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. This freezer features a jet black cabinet and user-reversible stainless steel door with a pro style handle. A factory-installed lock offers added security with two keys included. This unit comes with a front-breathing system that enables recessed built-in installation, while the fully finished exterior also allows freestanding use as needed. A right angle plug and sealed back design offers added space savings.

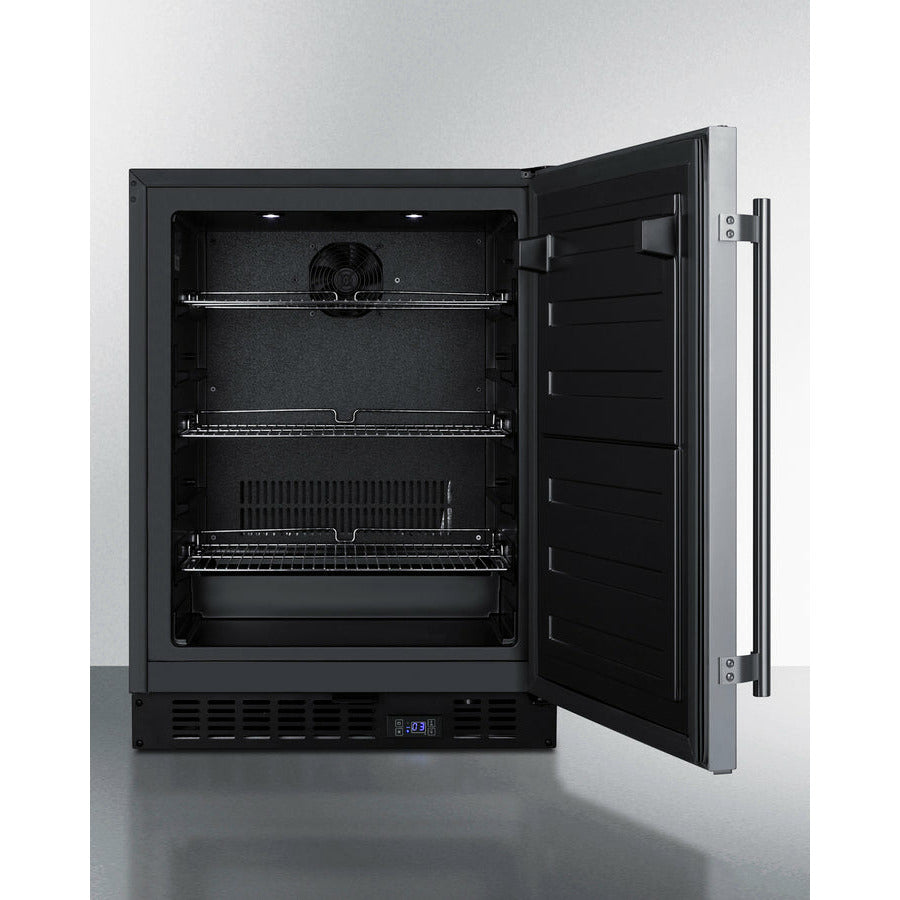

Inside, the ALFZ53 utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls located in the external kickplate.

The ALFZ53 freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. It's a perfect match for our AL54 all-refrigerator. Additional door finishes are available, including panel-ready, black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.





DOWNLOADS

Download

BROCHURE w/ DRAWINGS
ALFZ53.pdf

Download

TECHNICAL DRAWING (.dwg)
-_ALFZ53_FREEZER__A-C-2022_.dwg

Download

ASSEMBLY DRAWING
ALFZ53_ASSEMBLY.pdf

Energy Guide





AVAILABLE UPGRADES

Exterior
SSK - Stainless steel kickplate Latch - Factory-installed door latch requires manual release to open unit
LHD - Left hand door swing








Shipping This item originates and ships within the United States. Will usually ship within 1 business day if in stock. *Note that due to recent supply chain delays, some products may be backordered, please call to confirm!*



Please allow 1-2 weeks for your order to arrive after shipping confirmation. Product ship times may be longer if freight carrier is required. We source products from US suppliers at the lowest prices. This means sometimes you may have to wait a little longer to get your order but it's always worth it!
