SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel or Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 307.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068268 or 761101068787 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
|
Dimensions
|
|
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
FEATURES
32" height to fit under lower ADA compliant counters
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Durable design with lasting elegance
or

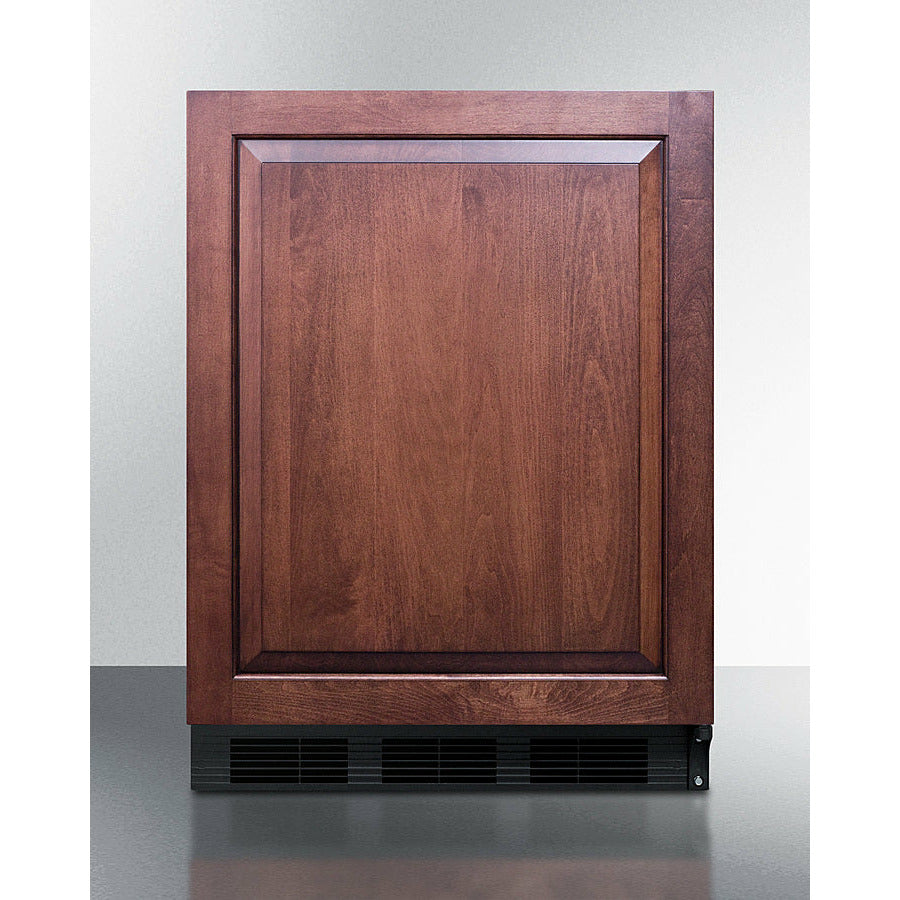

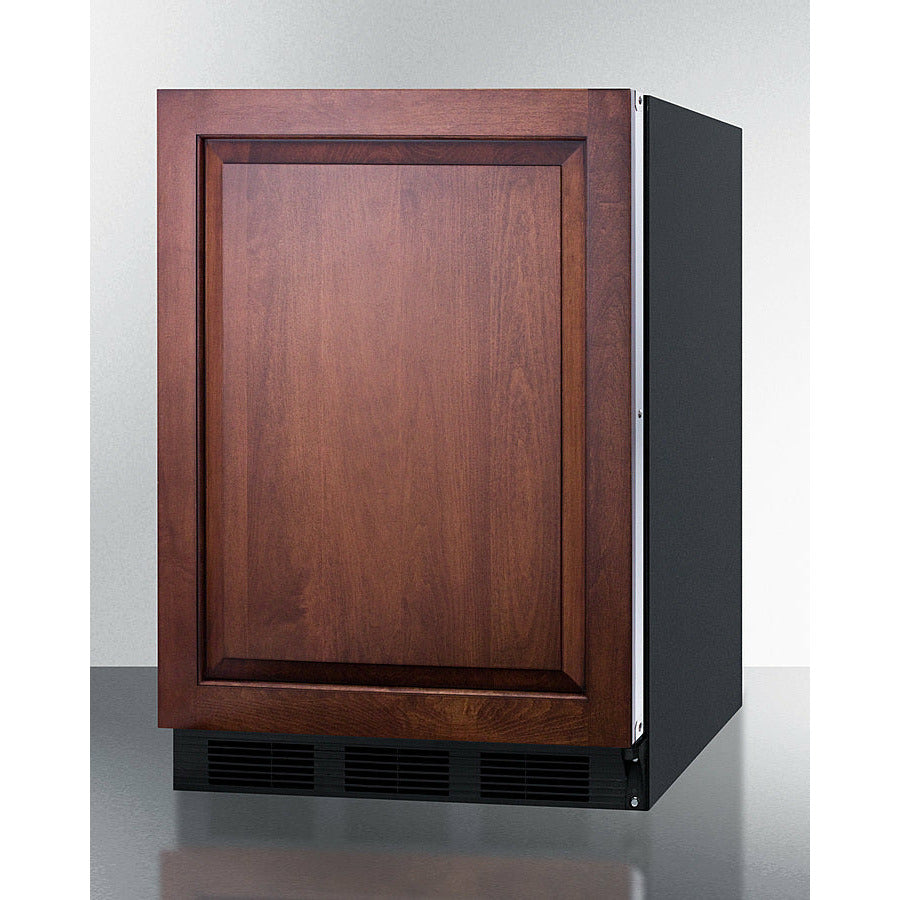

Panel-ready door
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.

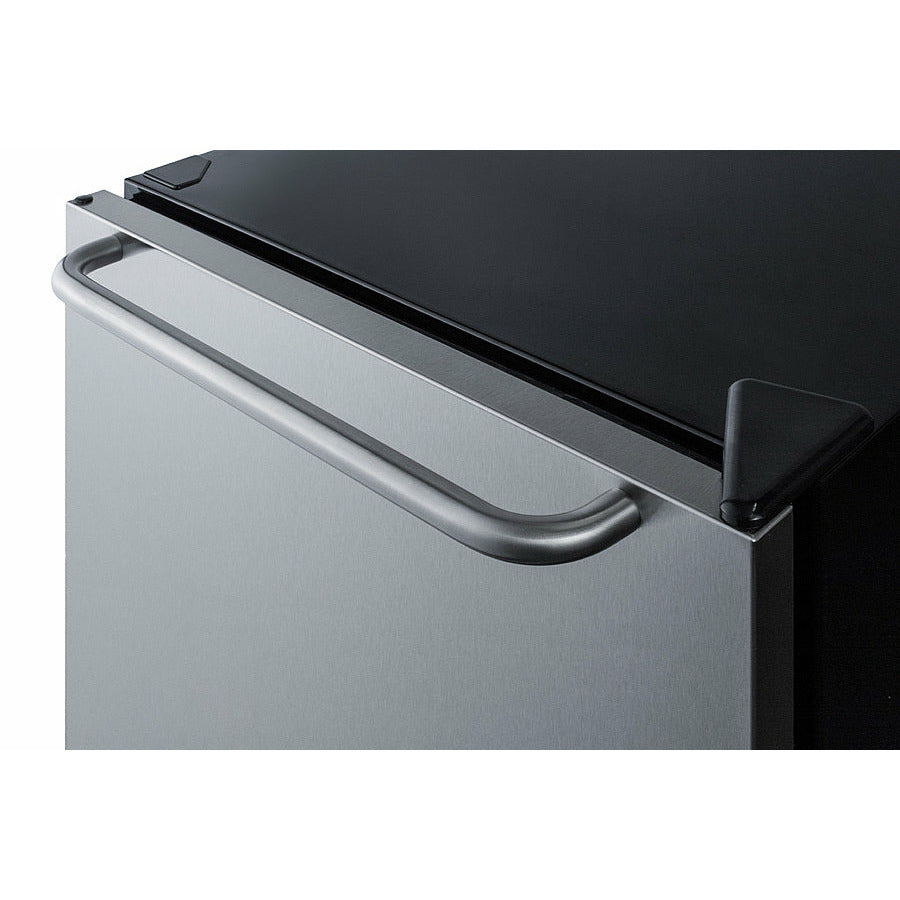

Brushed stainless steel handle is mounted horizontally for an attractive look
Reduced maintenance with auto defrost system
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Store tall bottles and condiments right on the door for convenient access
Removable scalloped wine shelf is included to store champagne and wine bottles
Automatically illuminates when you open the door
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator creates a seamless, easy to clean interior

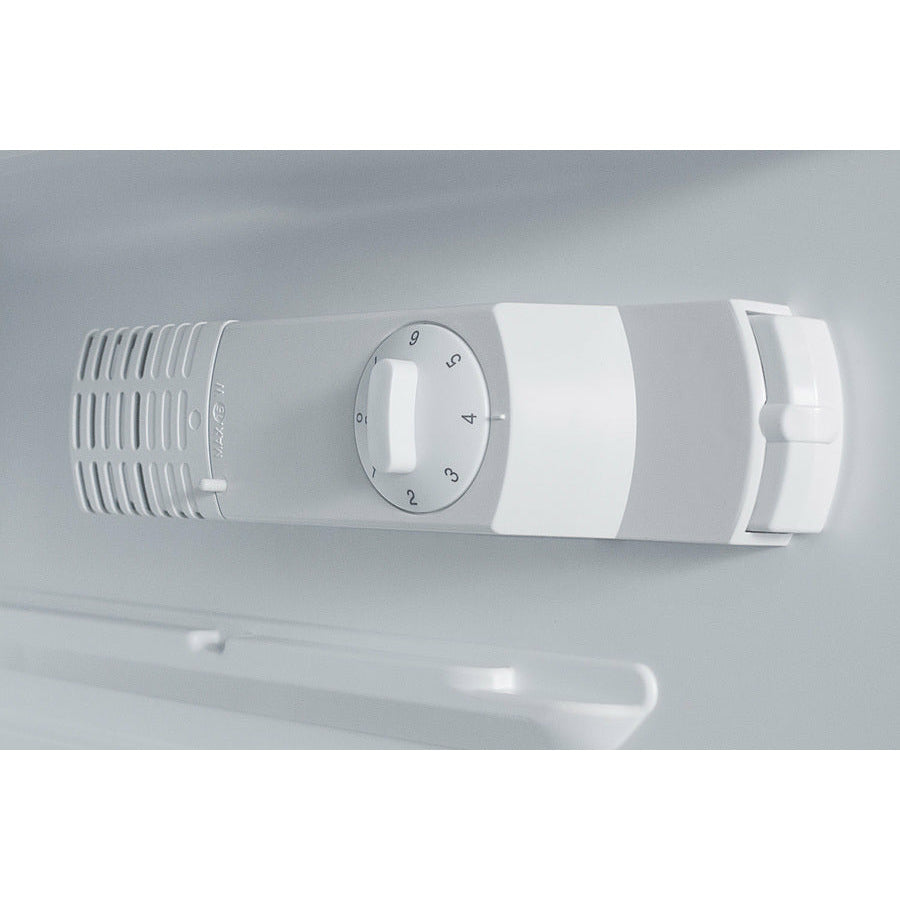

Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
User-reversible door swing for added flexibility
Allows the unit to be used freestanding
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations.

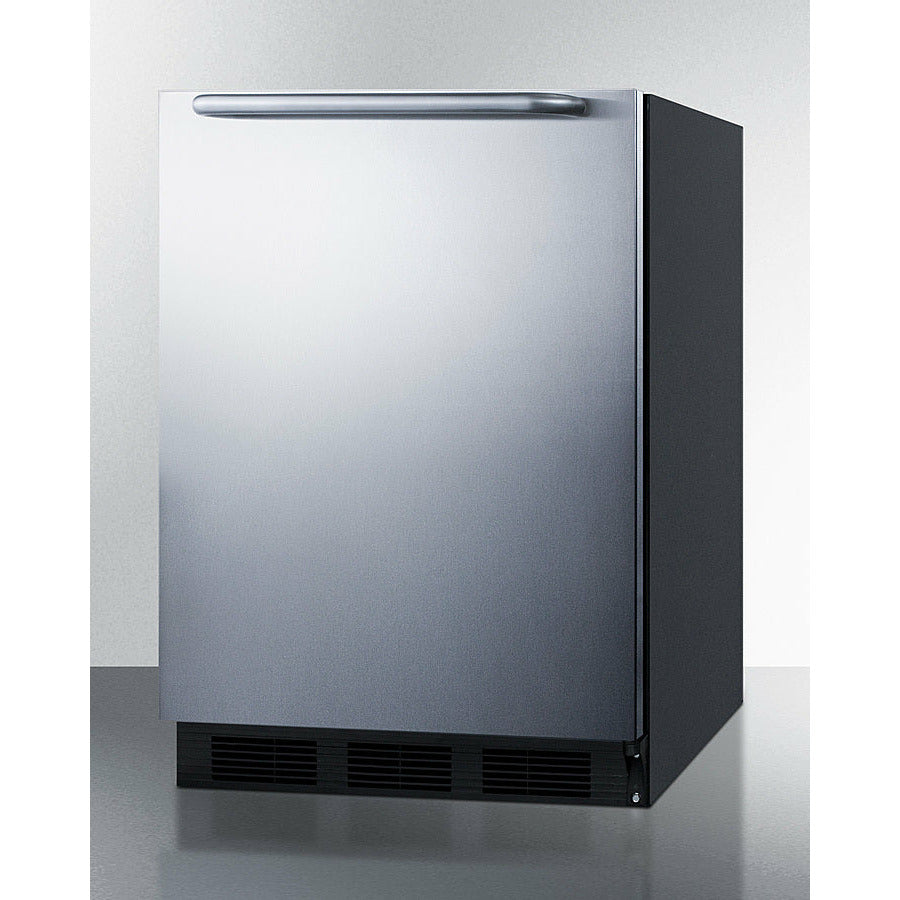

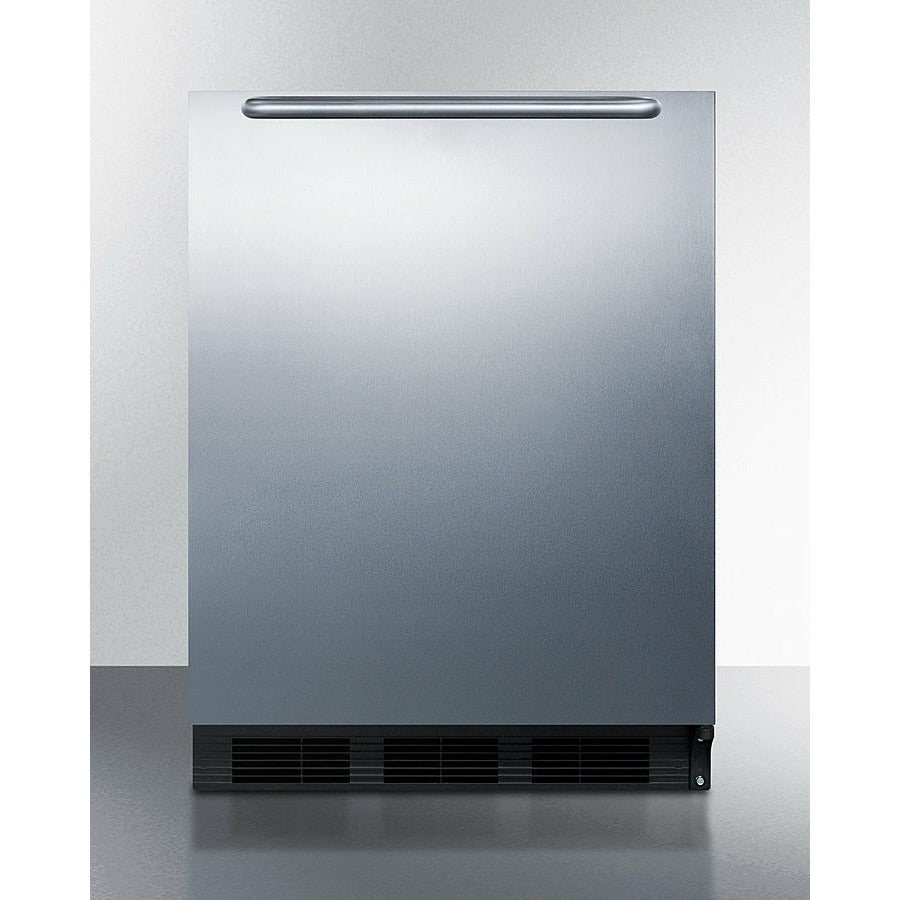

Sized with a 24” footprint and 32” height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a curved towel bar style handle mounted horizontally for a modern look.

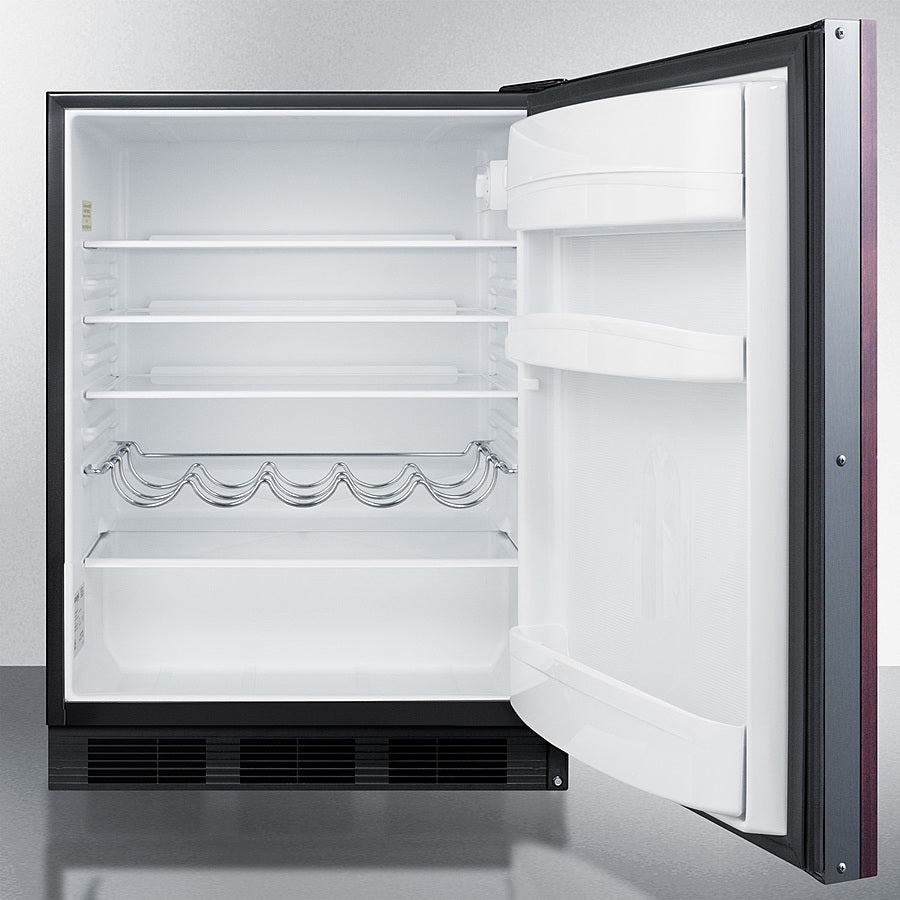

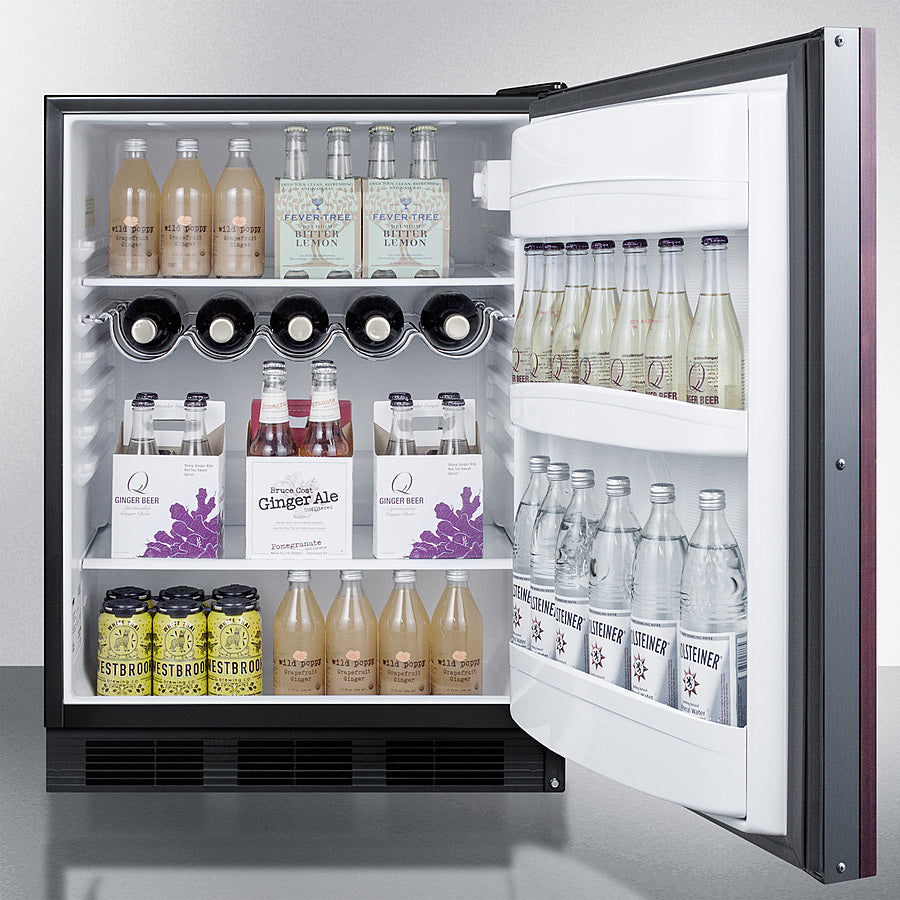

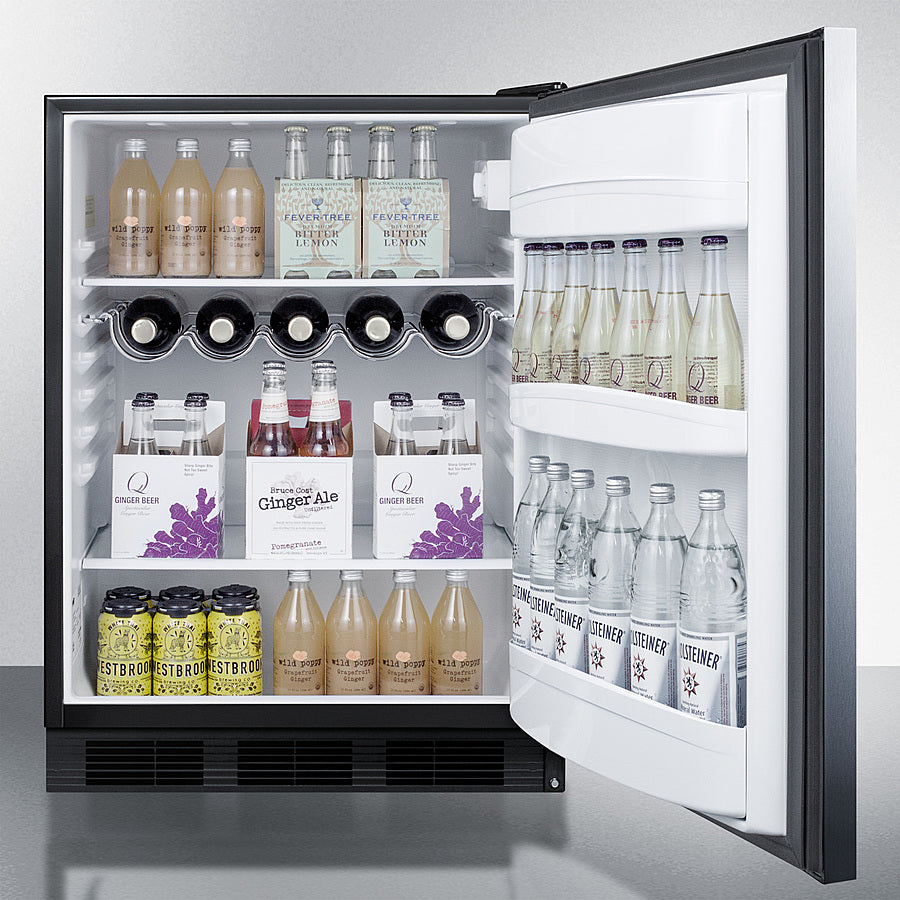

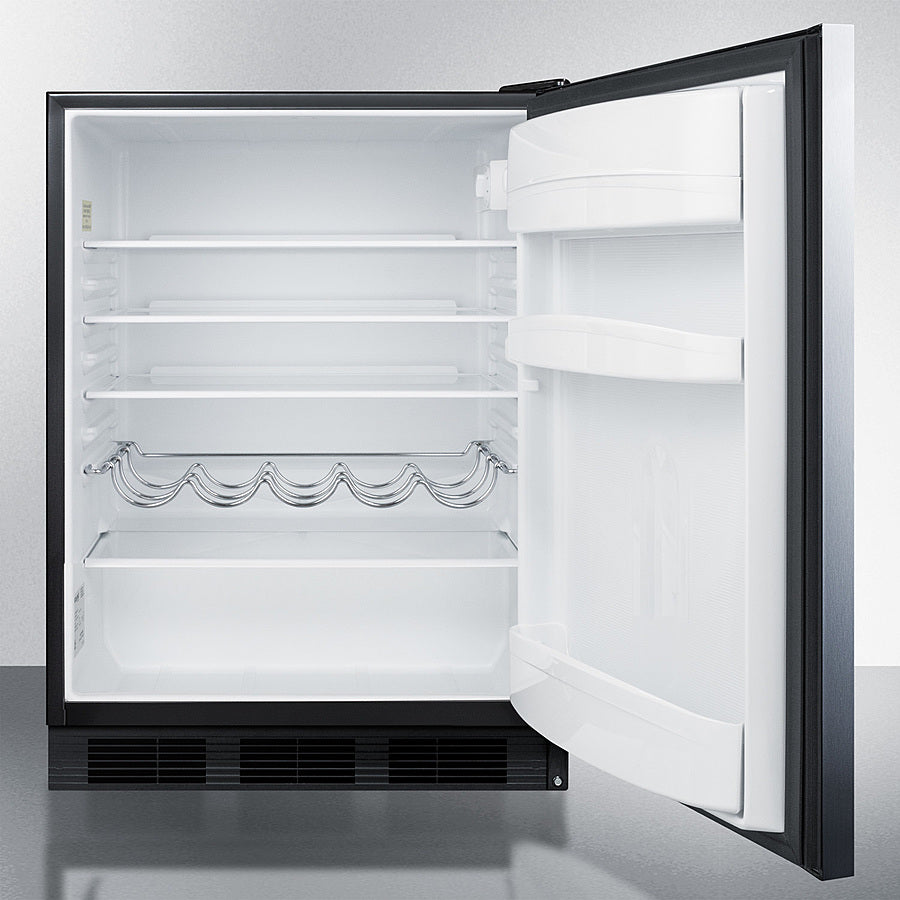

Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management.
Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.
DOWNLOADS
AVAILABLE UPGRADES
| Exterior | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| Interior | ||||||||||
|
||||||||||
| Lock | ||||||||||
|
||||||||||
| Handle | ||||||||||
|
| Shipping | This item originates and ships within the United States. Will usually ship within 1 business day if in stock. *Note that due to recent supply chain delays, some products may be backordered, please call to confirm!* |
 |
Please allow 1-2 weeks for your order to arrive after shipping confirmation. Product ship times may be longer if freight carrier is required. We source products from US suppliers at the lowest prices. This means sometimes you may have to wait a little longer to get your order but it's always worth it! |
|
