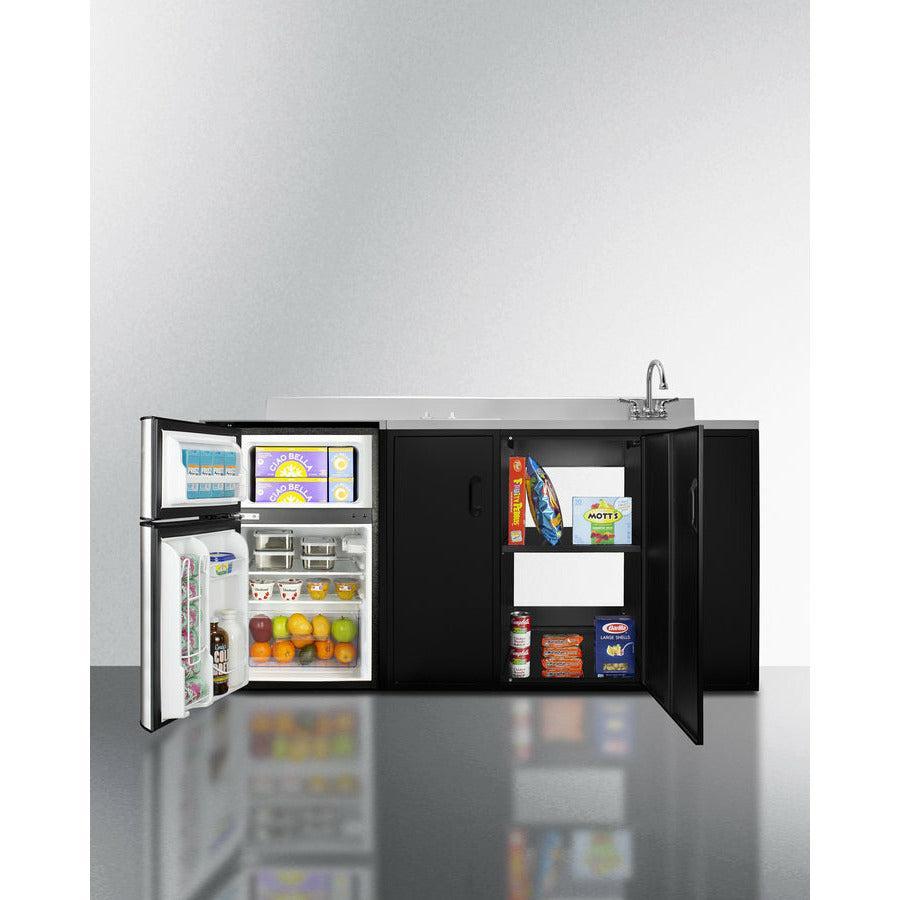

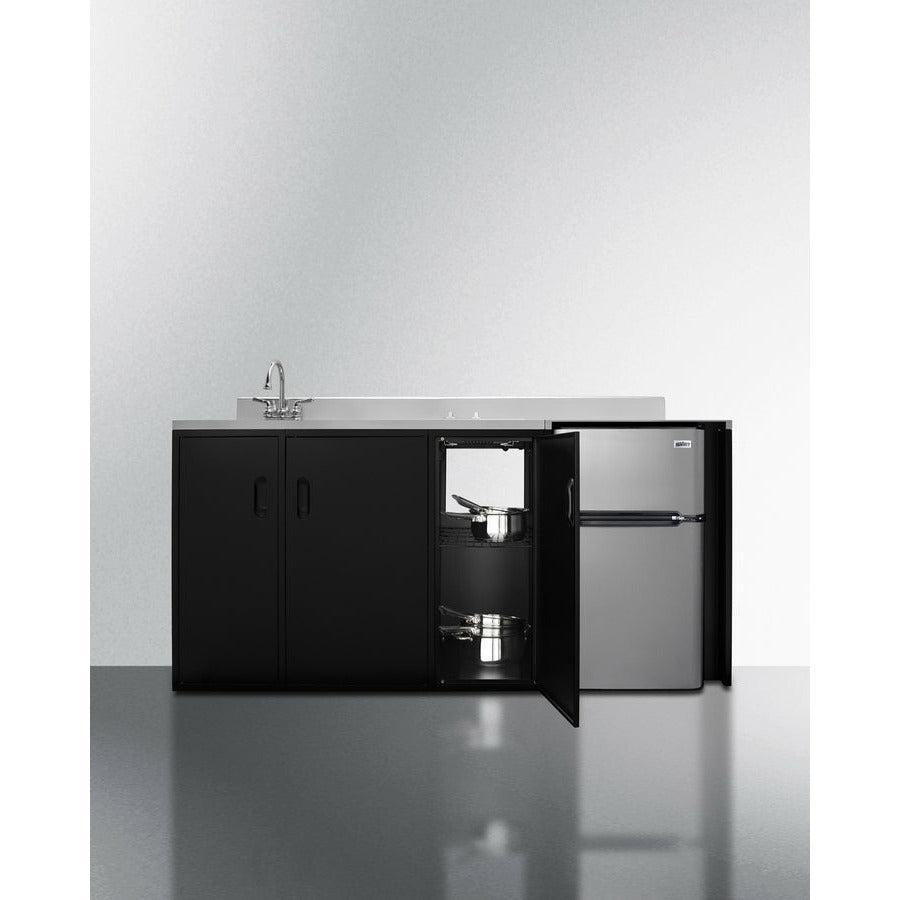

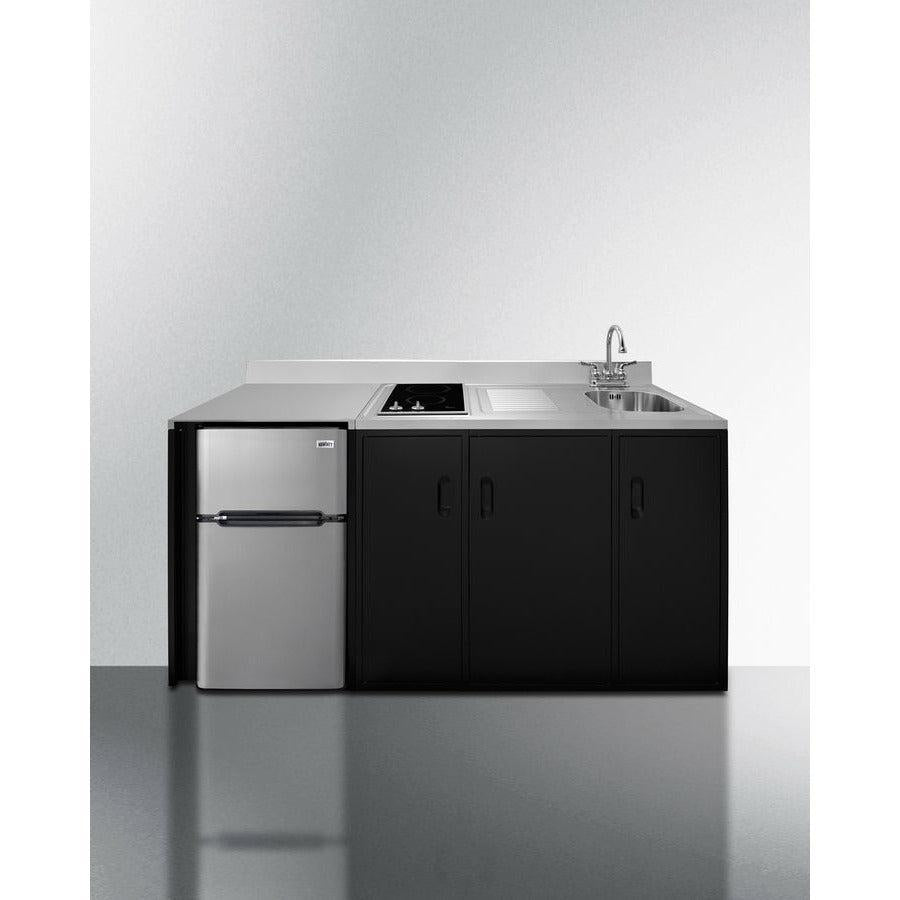

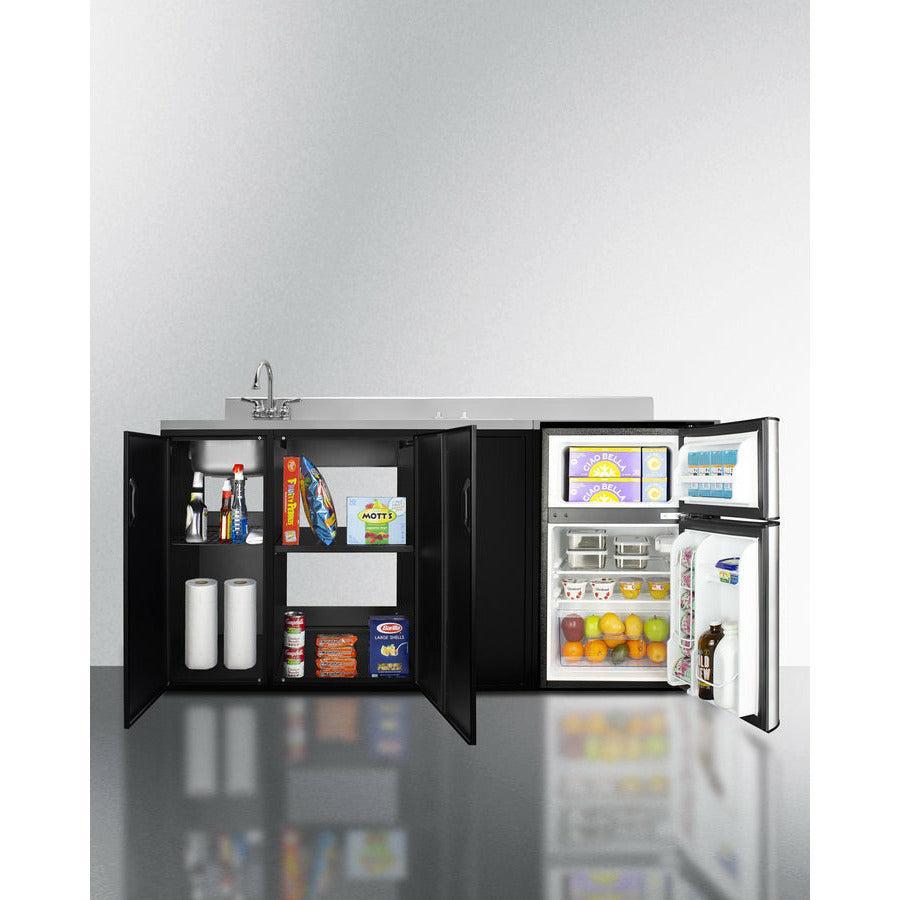

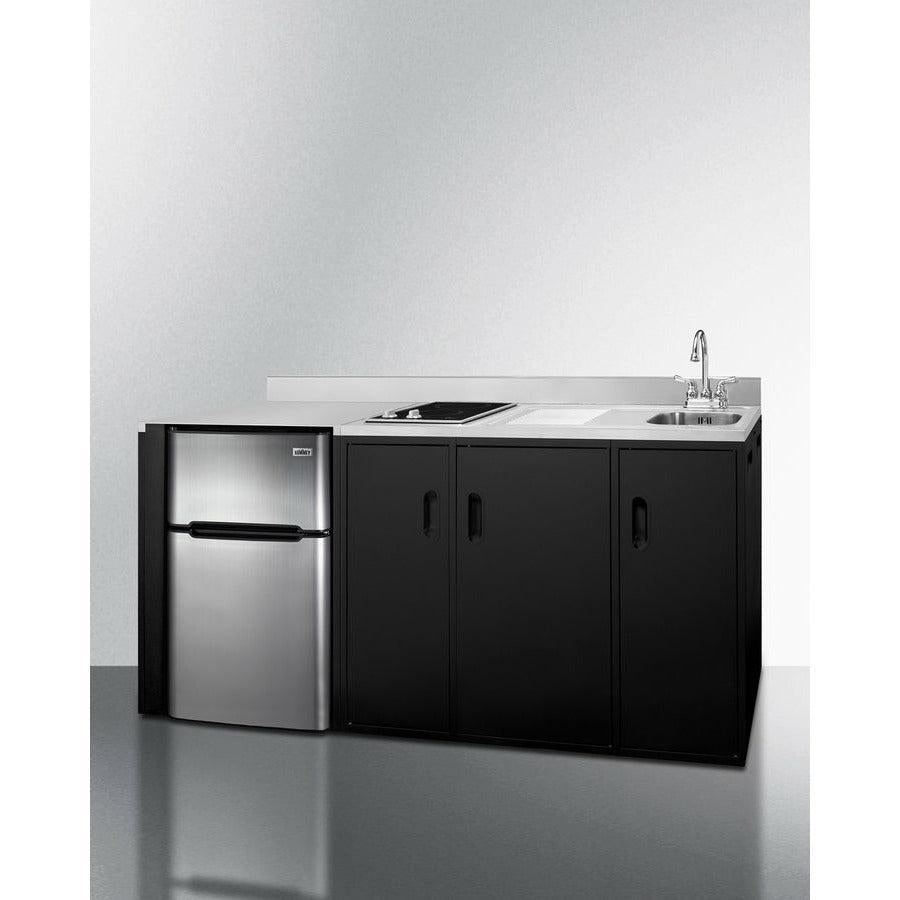

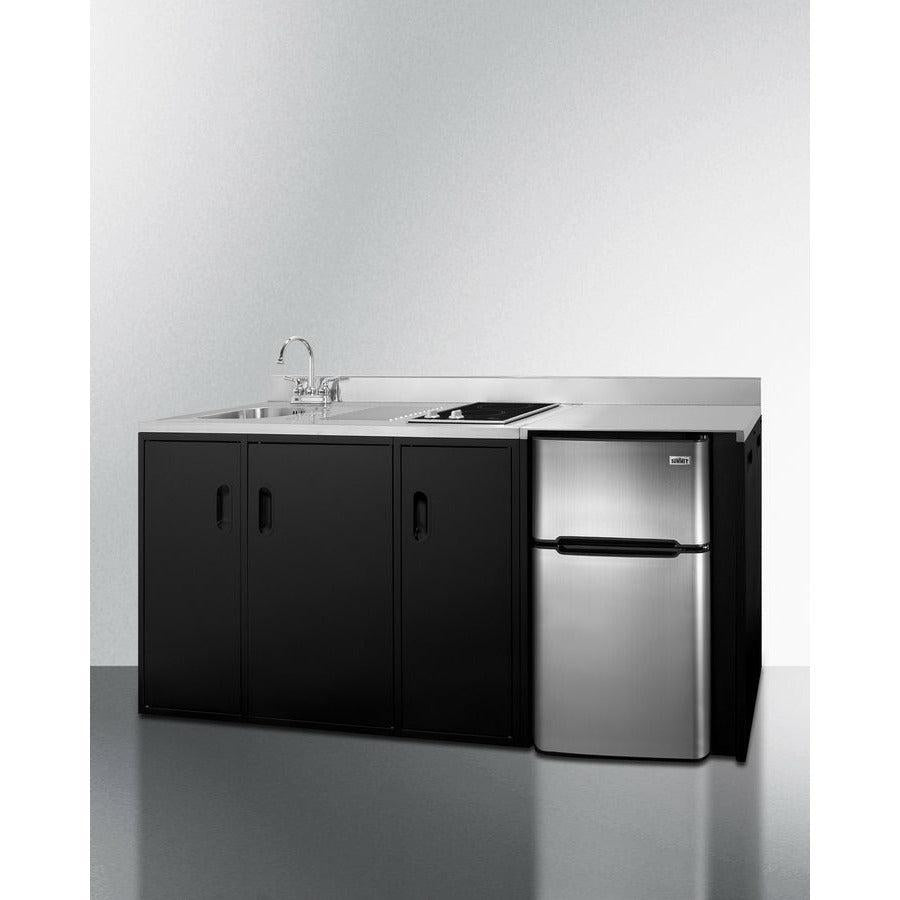

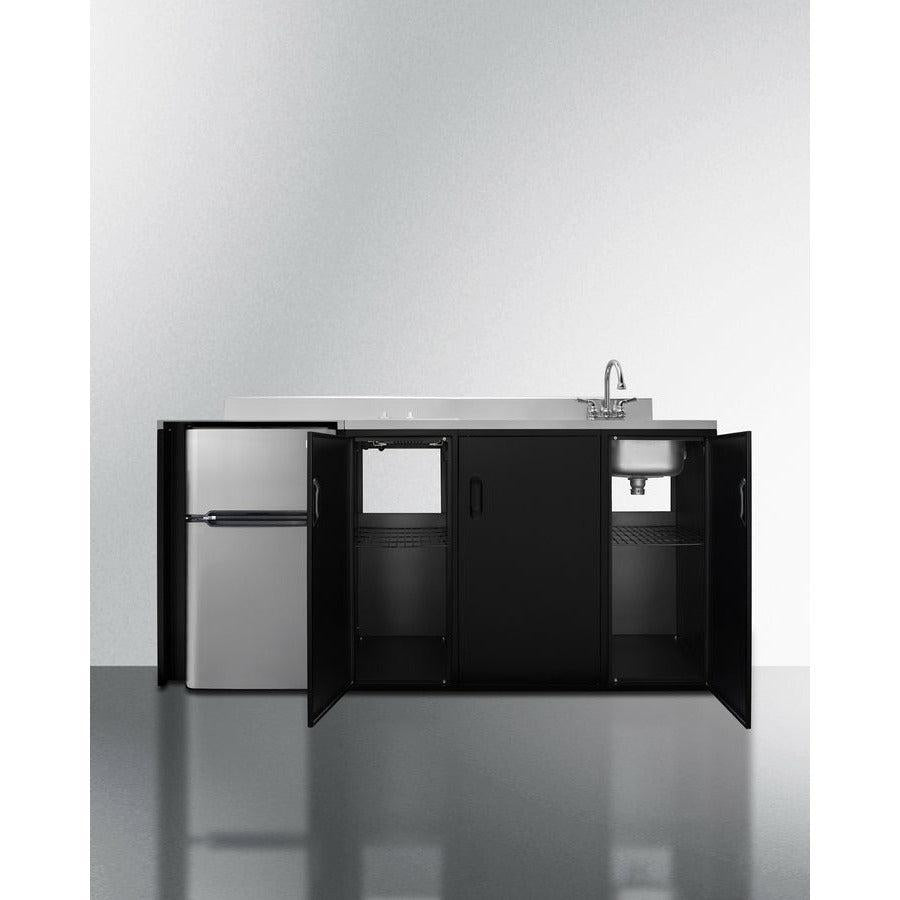

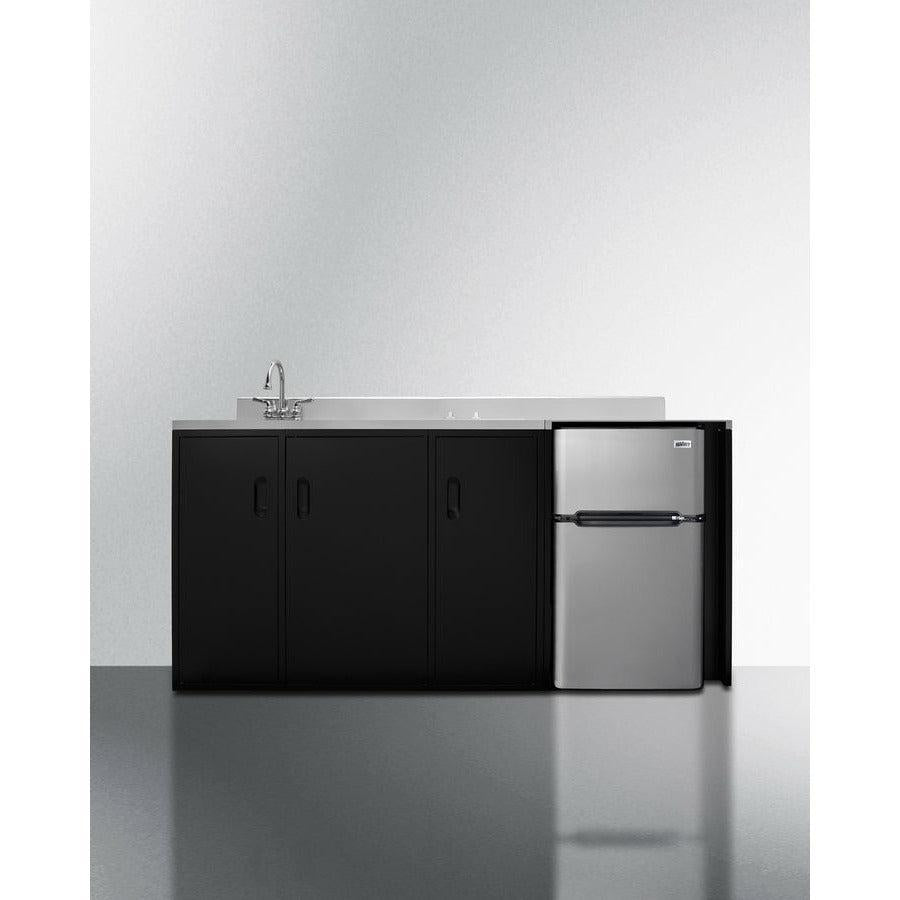

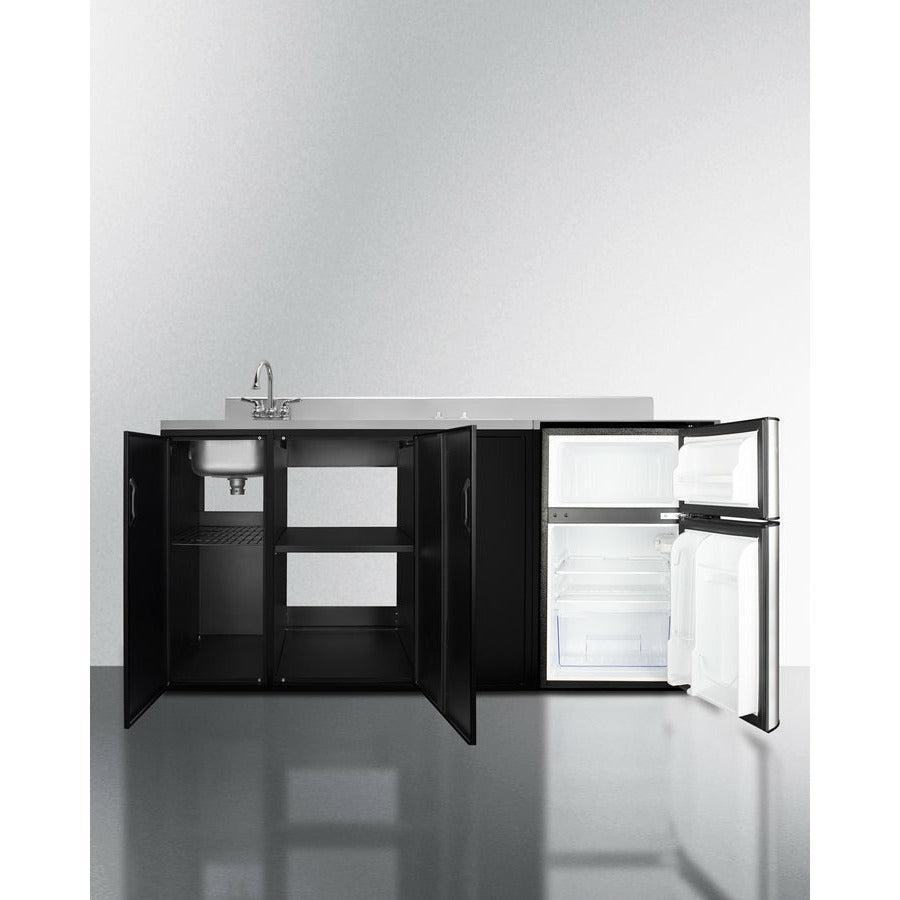

Summit 72" All-In-One Kitchenette with 3.2 cu. ft. Refrigerator-Freezer, 2 Element Electric Cooktop, Sink and Storage Cabinet in Black - CK72ADASINK

$2,600.00 $3,495.00
You Save: $895.00 26%

Refrigerator Door Swing

Checkout Secure

Great reasons to buy from us:

  • Image of

    FREE SHIPPING

  • Image of

    GUARANTEED LOWEST PRICE

  • Image of

    FAST ORDER PROCESSING

  • Image of

    30 DAY MONEY BACK GUARANTEE

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 71.75" (182 cm)
Depth 23.75" (60 cm)
Depth with door at 90° 42.0" (107 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Cycle
Door Black/SS
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 322.0kWh/year
Other Energy Info Cooktop is 20 Amps; Refrigerator-Freezer is 1.1 Amps
Amps 21.1
Voltage/Frequency 115 V AC/60 Hz
Weight 174.0 lbs. (79 kg)
Shipping Weight 195.0 lbs. (88 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101066875 or 761101066882
Kitchenette
Refrigerator Included CP34BSS
Refrigerator Door Swing RHD or LHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass
Shelf Qty 1
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Full Door Shelves 2
Can Storage Yes
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.16 oz.
High Side PSI 250.0
Low Side PSI 88.0
Cooking Type Smooth-Top Cooktop
Number of Burners 2
Cooktop Controls Dial
Interior Height 1 18.5" (47 cm)
Interior Width 1 15.75" (40 cm)
Interior Depth 1 15.0" (38 cm)
Interior Height 2 7.5" (19 cm)
Interior Width 2 14.0" (36 cm)
Interior Depth 2 14.0" (36 cm)
Sink Height 7.0" (18 cm)
Sink Width 12.25" (31 cm)
Sink Depth 13.75" (35 cm)









FEATURES

Complete one-piece kitchenette

All-in-one kitchen is built with virtually everything you need for meal preparation

ADA counter height

34" counter height helps to comply with the guidelines set by the Americans with Disabilities Act (ADA) for improved accessibility

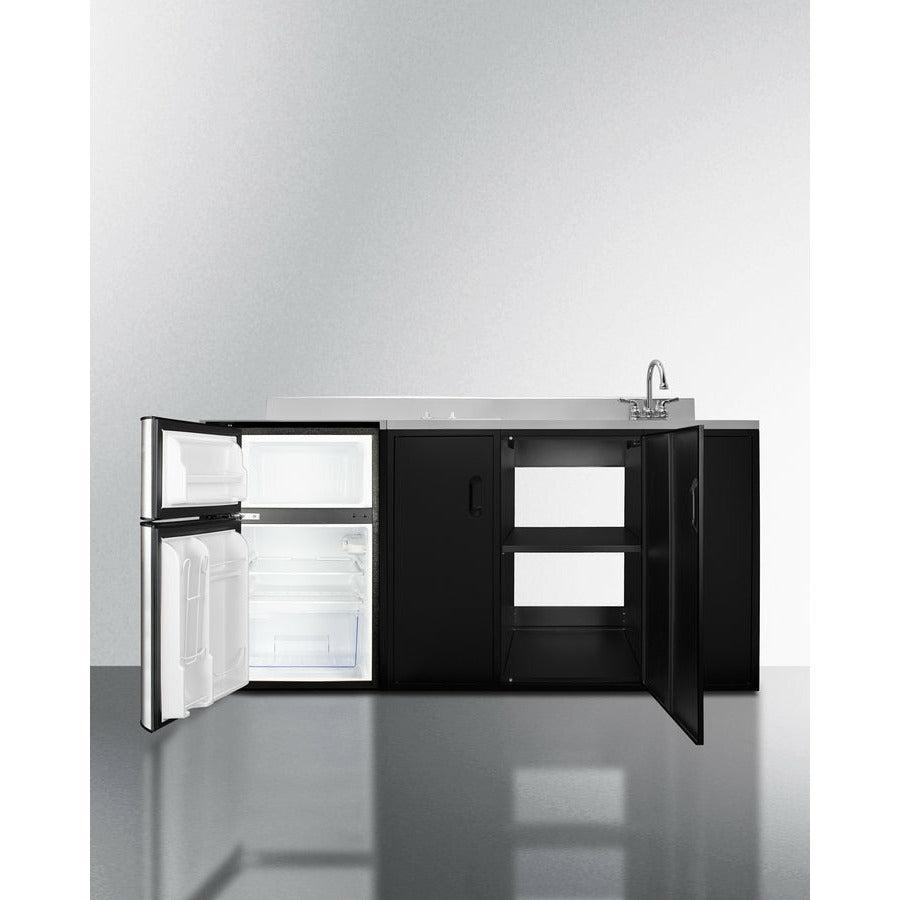

2-door refrigerator-freezer included

CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment

Sink and faucet

Stainless steel sink with ready-to-use faucet included

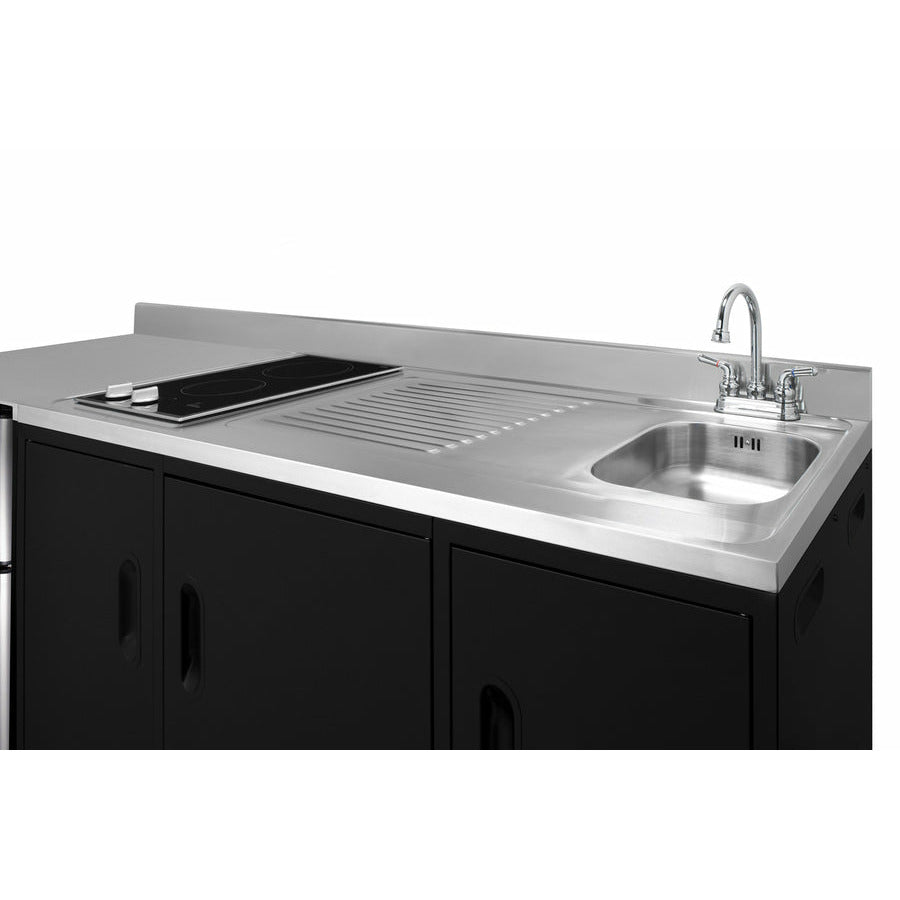

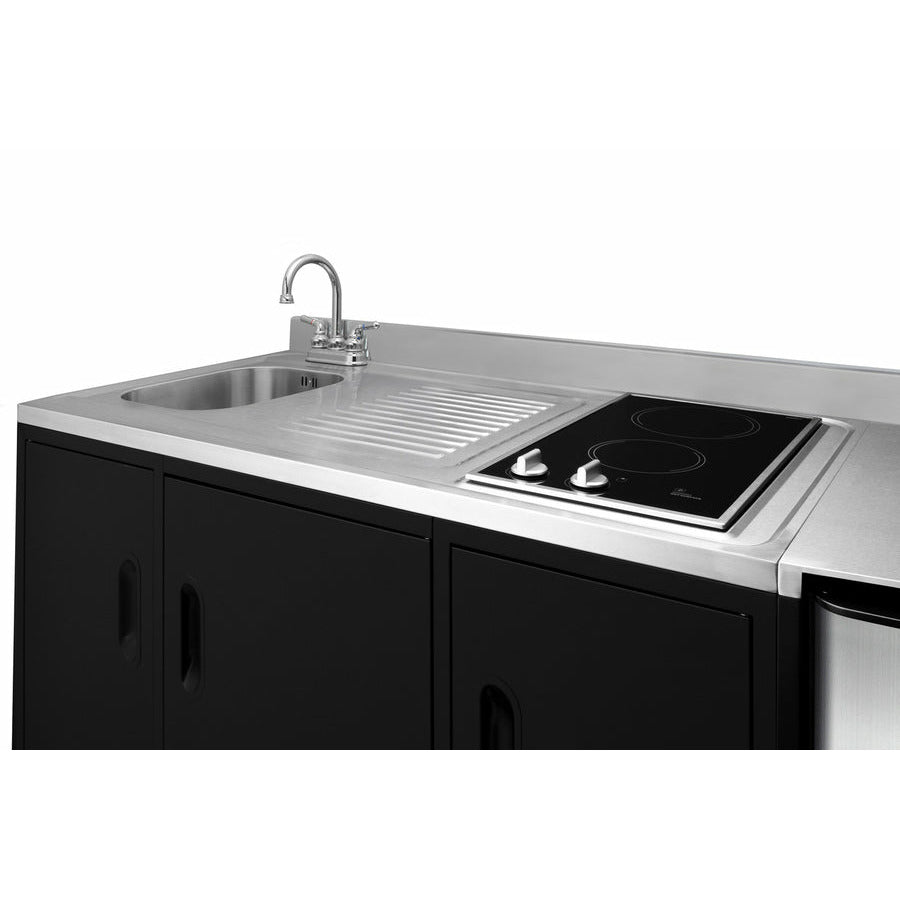

2-burner smooth-top cooktop

Includes a 5½" 500W front element and a 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking

115V operation with pre-installed cords

Both the cooktop (20amps) and refrigerator (1.1amps) include 3-pronged cords for easy setup

Push-to-turn knobs

Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents

Indicator lights

Operating indicators light up to show which burner is in use

Black and stainless steel exterior finish

Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors

One piece stainless steel countertop

Easy-to-clean surface with a professional look

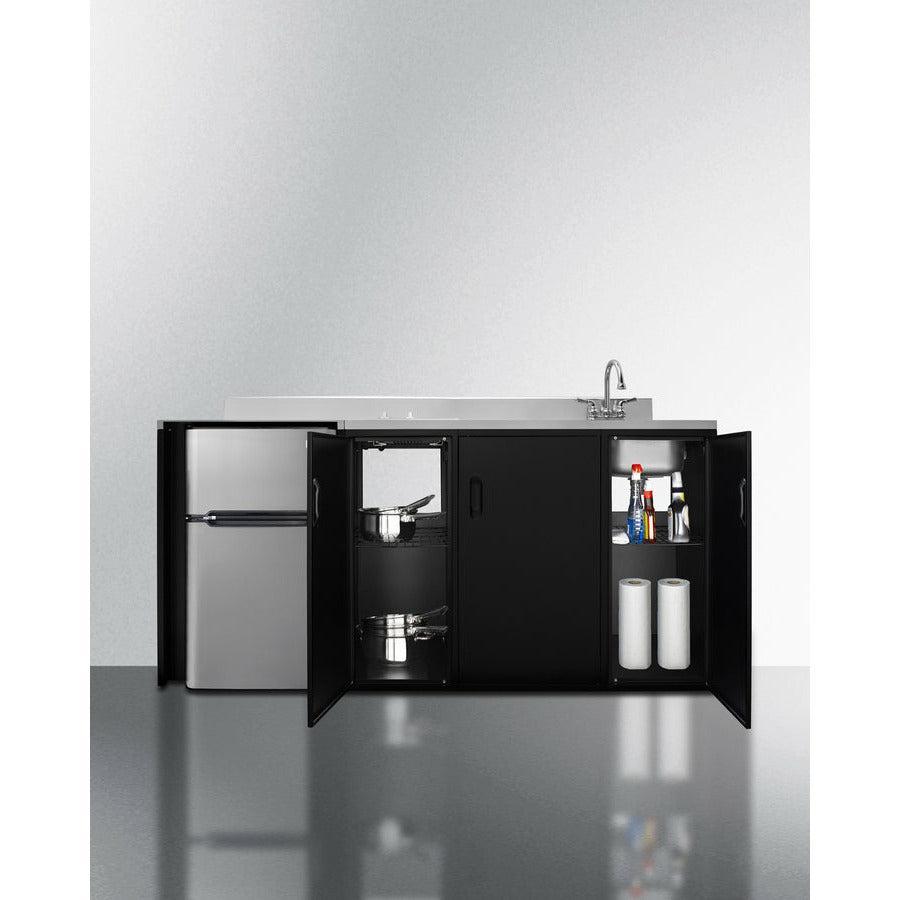

Storage compartments

Single and double-door lower cabinet storage compartments with removable shelves provide ample storage capacity for cleaning supplies, dry goods, and similar contents

Ships fully assembled in one box

Kitchenette is shipped in one piece, with reinforced packaging for added protection

Stainless steel backguard

Includes a 4" high backguard to complete the look and offer added protection to your walls

Reversible doors

User-reversible door swings on the refrigerator-freezer for added flexibility

Grooved handles

Side indents afford easy movement of the unit for added portability

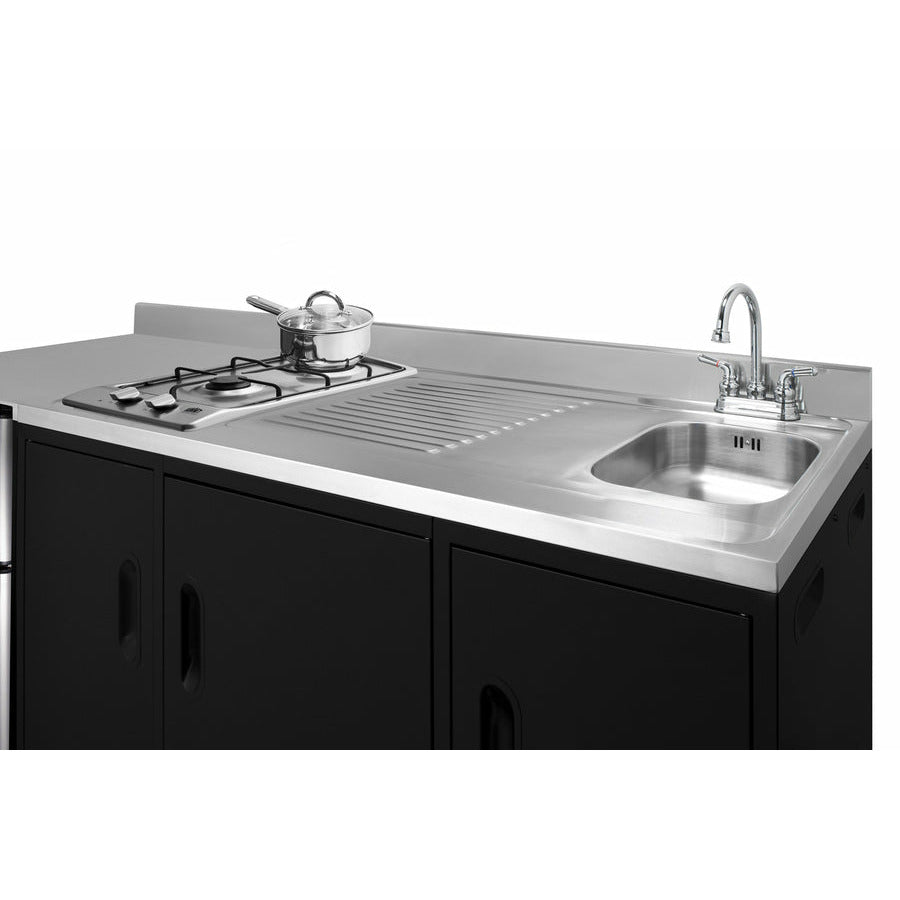

Gas cooktop option (add-on purchase)

Pre-installed radiant cooktop can be removed in the field to substitute another cooktop option (cutout: 11" W x 19 1/4" D); Compatible with Summit GC22SS 2-burner gas cooktop (LP convertible with included kit)

Dishwasher option (add-on purchase)

Pre-installed center storage cabinet can be removed by users to install an 18" wide dishwasher; Compatible with the ENERGY STAR certified DW18SS4ADA dishwasher

Additional choices

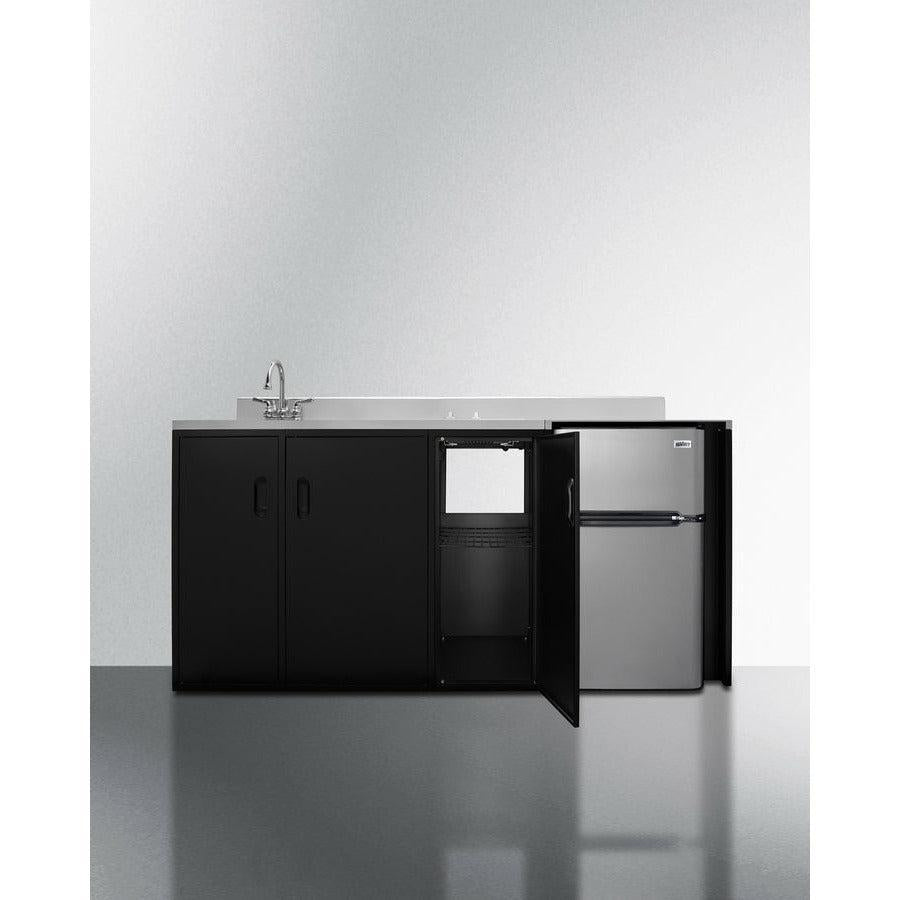

For this unit with a sink on the right of the kitchenette, see the CK72ADASINKR. Also, additional models are available in a variety of widths and finishes. Visit summitappliance.com to view the entire line

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations





DESCRIPTION

Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home foodservice experience, including a 2-burner smooth-top cooktop, sink, storage cabinets, and refrigerator with a freezer compartment.

The CK72ADASINKL is 72" wide with a 34" ADA counter height for added accessibility. Its black exterior brings a modern look to efficiency spaces, with added touches of stainless steel on the kitchenette work surface and refrigerator doors. This unit includes a built-in 115V smooth-top cooktop with a rear 7" 900W and a front 5½" 500W heating element. The power cord comes pre-installed for easy setup. The left side of the kitchenette features a compact sink with ready-to-use faucet, while the right side has a stainless steel counter area for food prep. Two single-door cabinets include a removable wire shelf, perfect for storing cleaning supplies, while a French-door style cabinet has a sold removable shelf, ideal for dry storage. Two grooved handles on each side allow for easy movement of the unit.

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The CK72ADASINKL includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper.

The CK72ADASINKL is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully-featured compact kitchenette. For this unit with a sink located on the right of the kitchenette, see the CK72ADASINKR.

Note: For users who prefer a gas connection, Summit model GC22SS can fit inside the existing 11" W x 19 1/4" D cooktop cutout. Additionally, users can remove the center storage cabinet and install an 18" wide ADA compliant dishwasher, such as Summit model DW18SS4ADA.







DOWNLOADS

Download

BROCHURE w/ DRAWINGS
CK72ADASINKL.pdf

Download


Download

ASSEMBLY DRAWING
CK72ADASINKL_ASS_Y.pdf

Download


Energy Guide
Shipping This item originates and ships within the United States. Will usually ship within 1 business day if in stock. *Note that due to recent supply chain delays, some products may be backordered, please call to confirm!*



Please allow 1-2 weeks for your order to arrive after shipping confirmation. Product ship times may be longer if freight carrier is required. We source products from US suppliers at the lowest prices. This means sometimes you may have to wait a little longer to get your order but it's always worth it!
