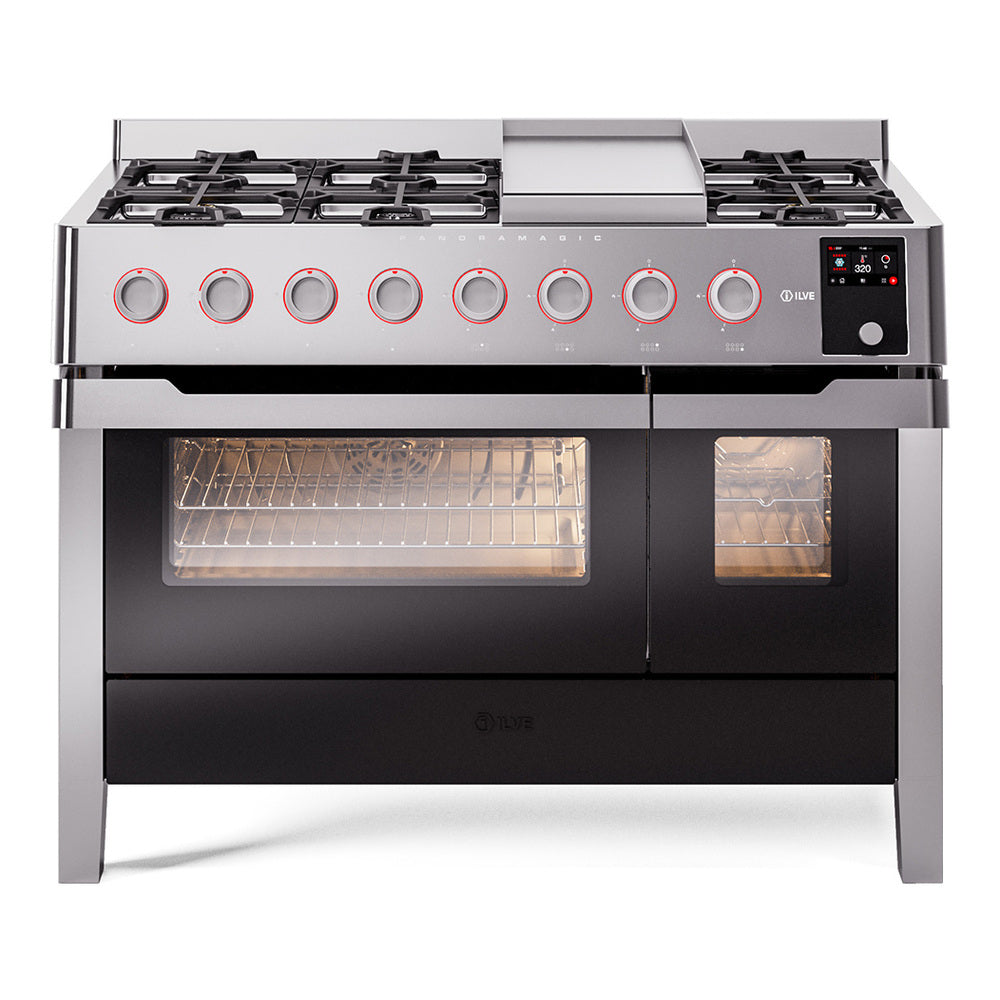

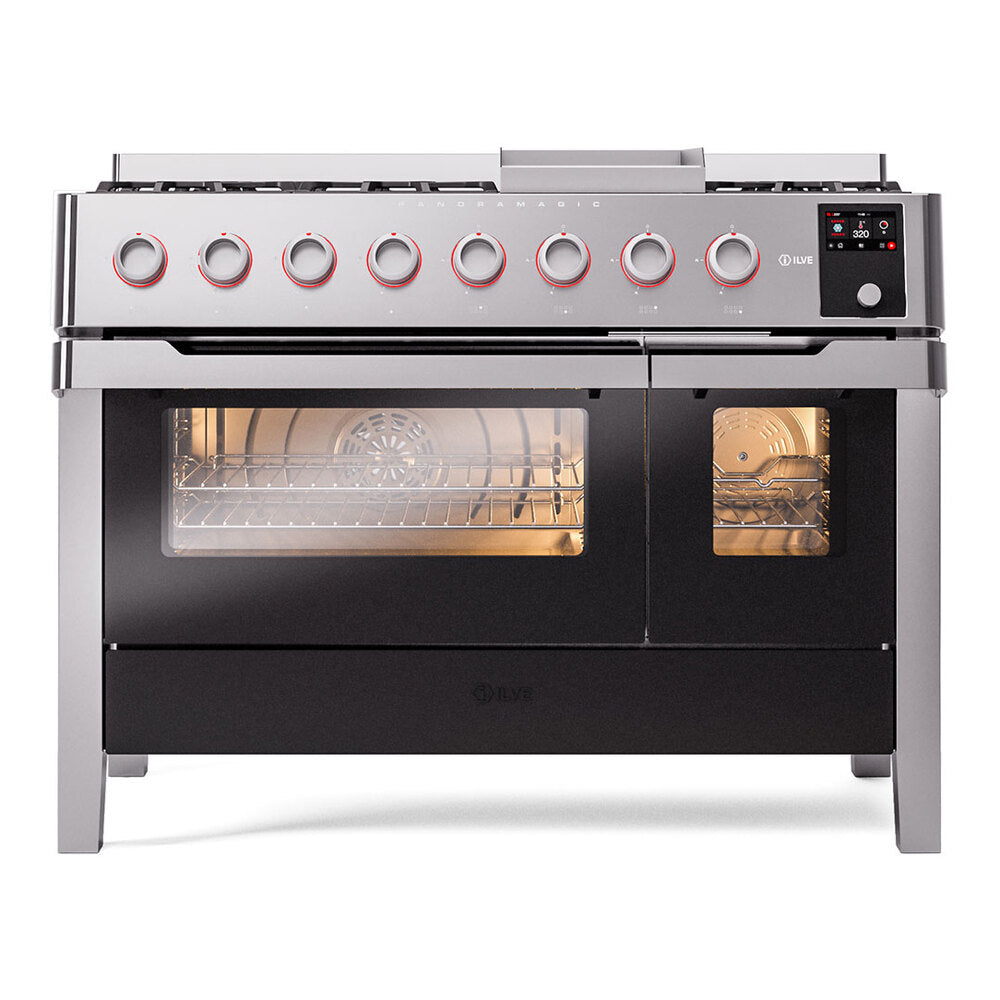

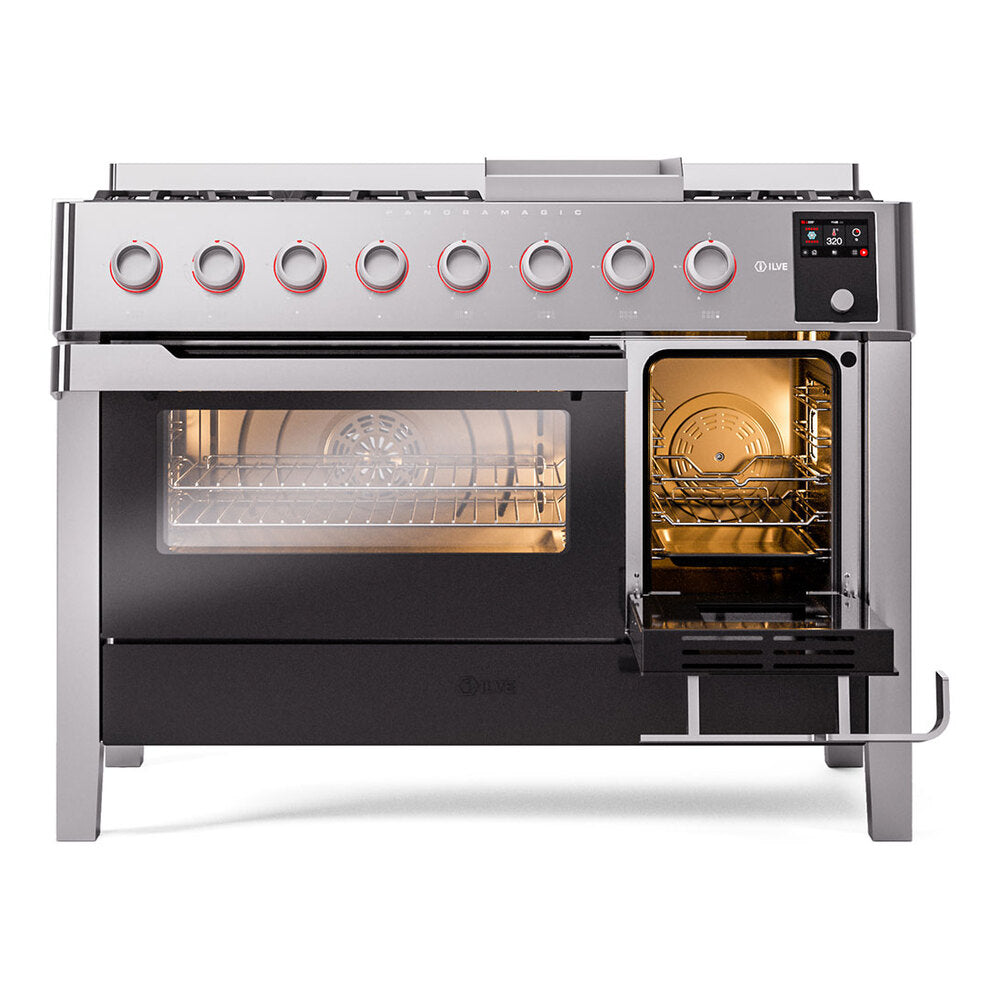

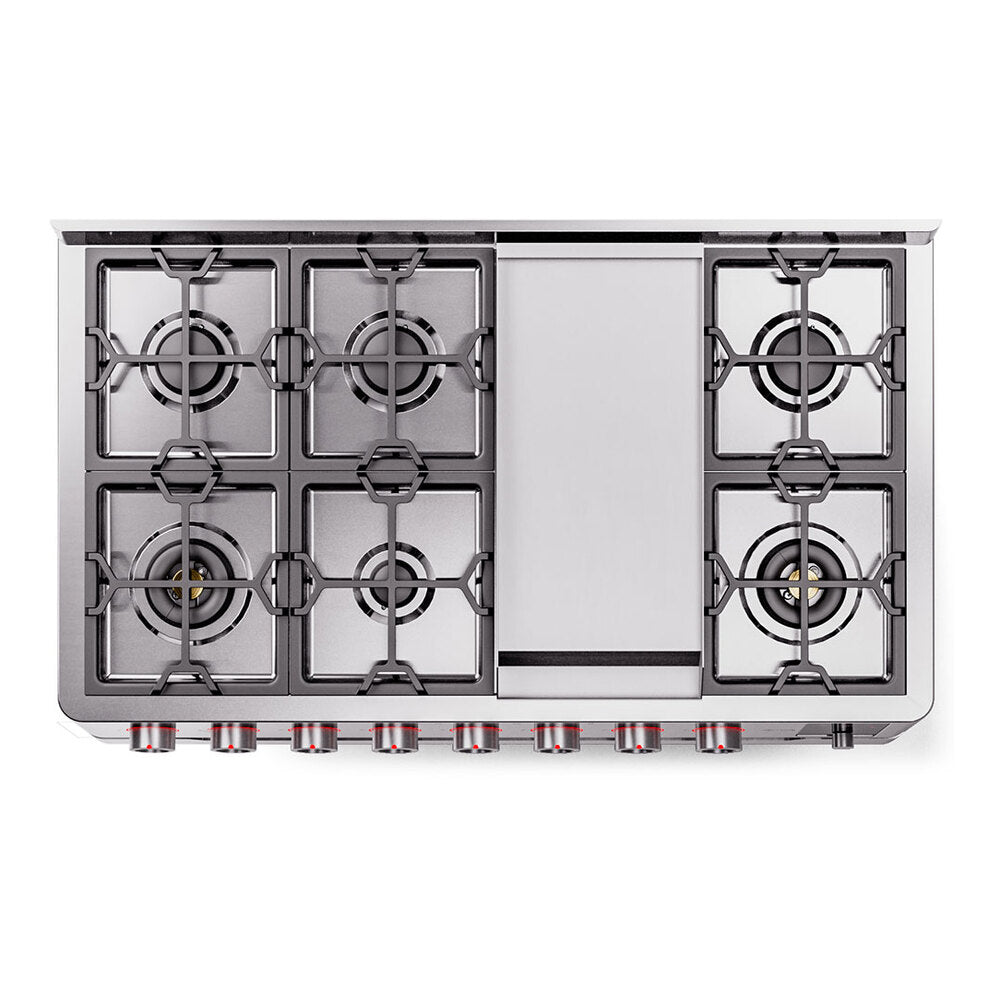

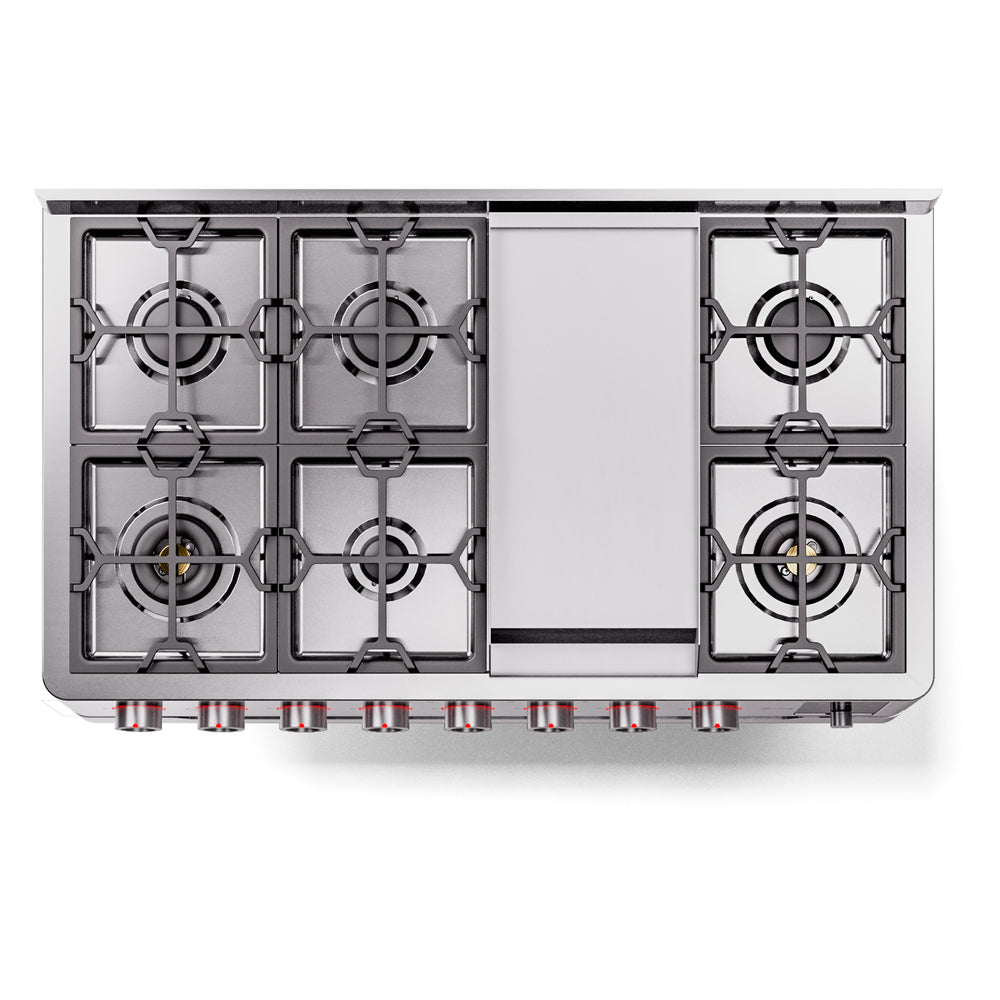

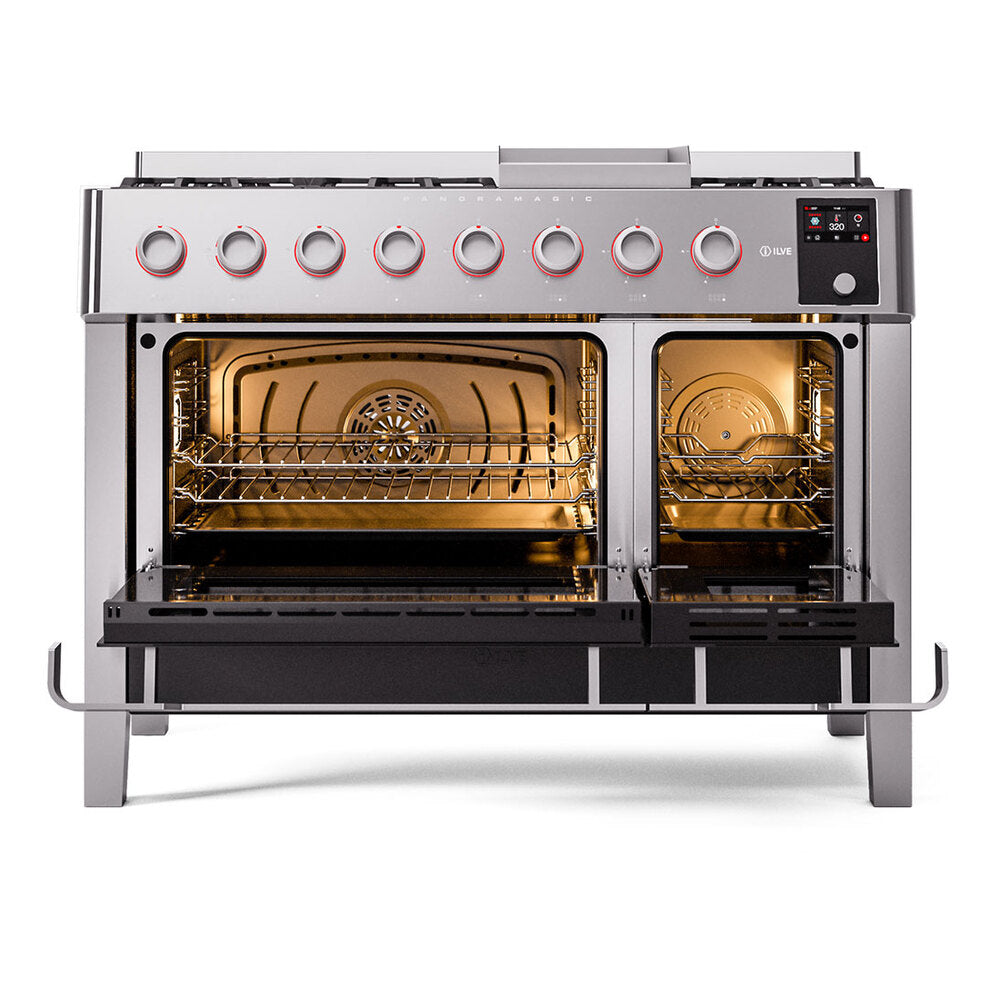

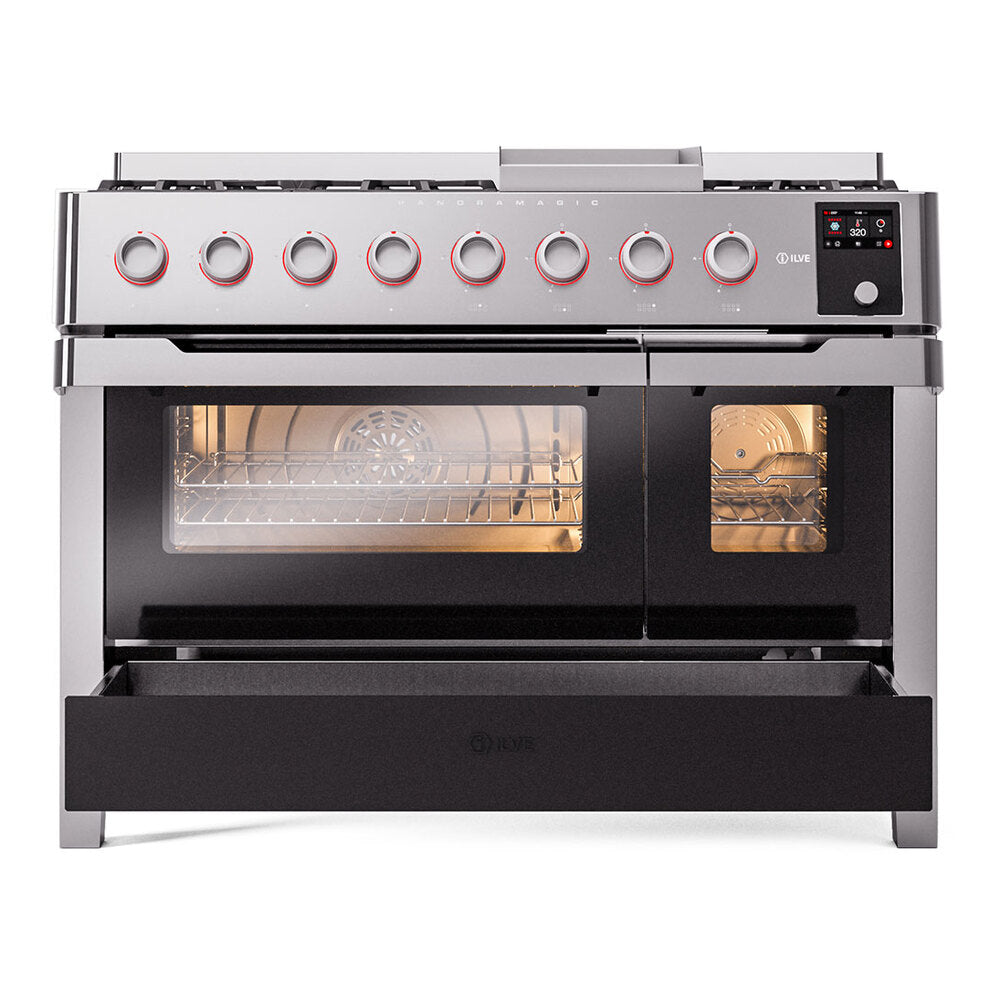

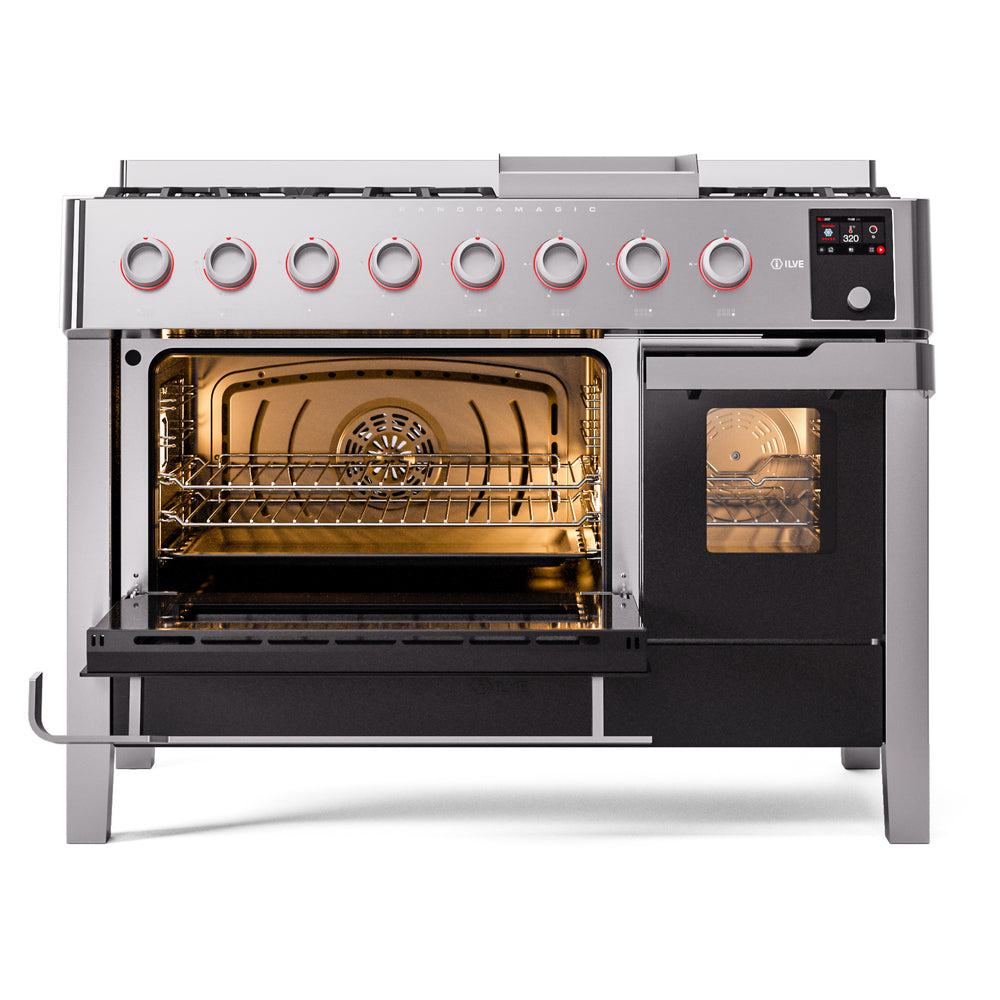

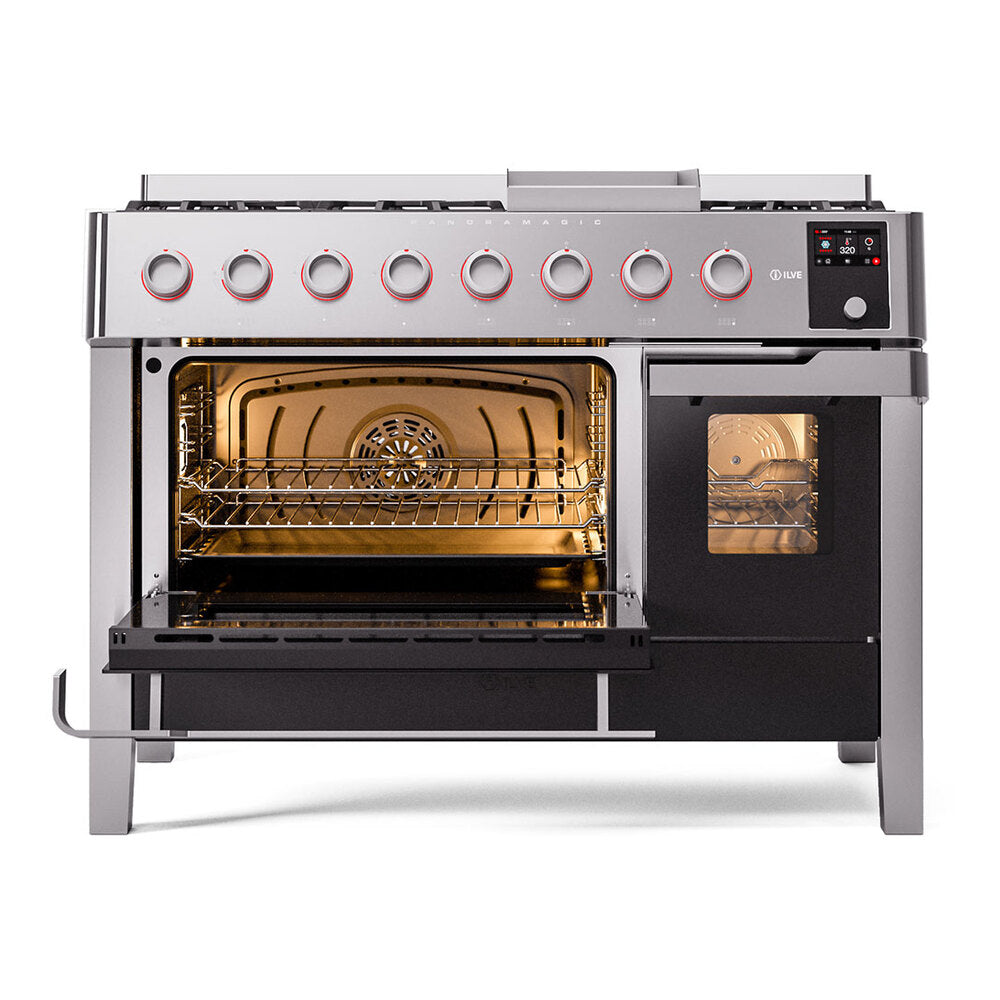

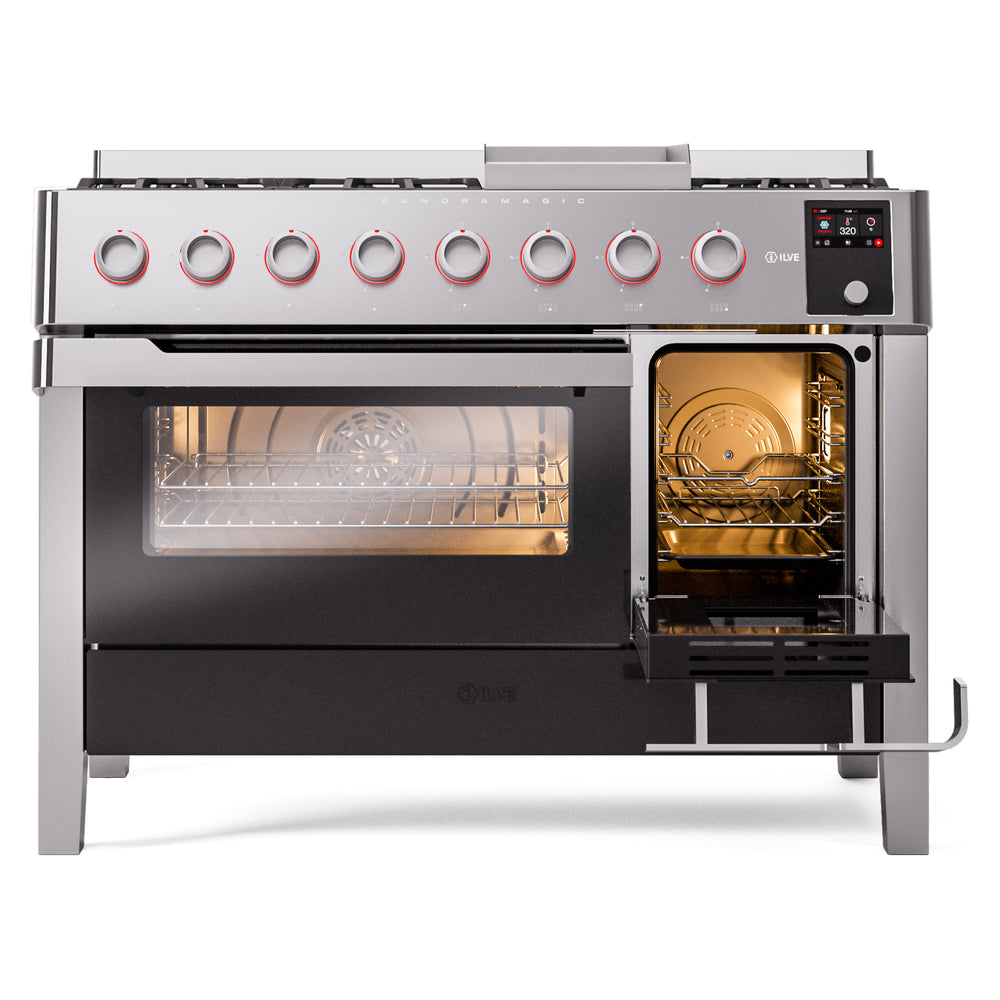

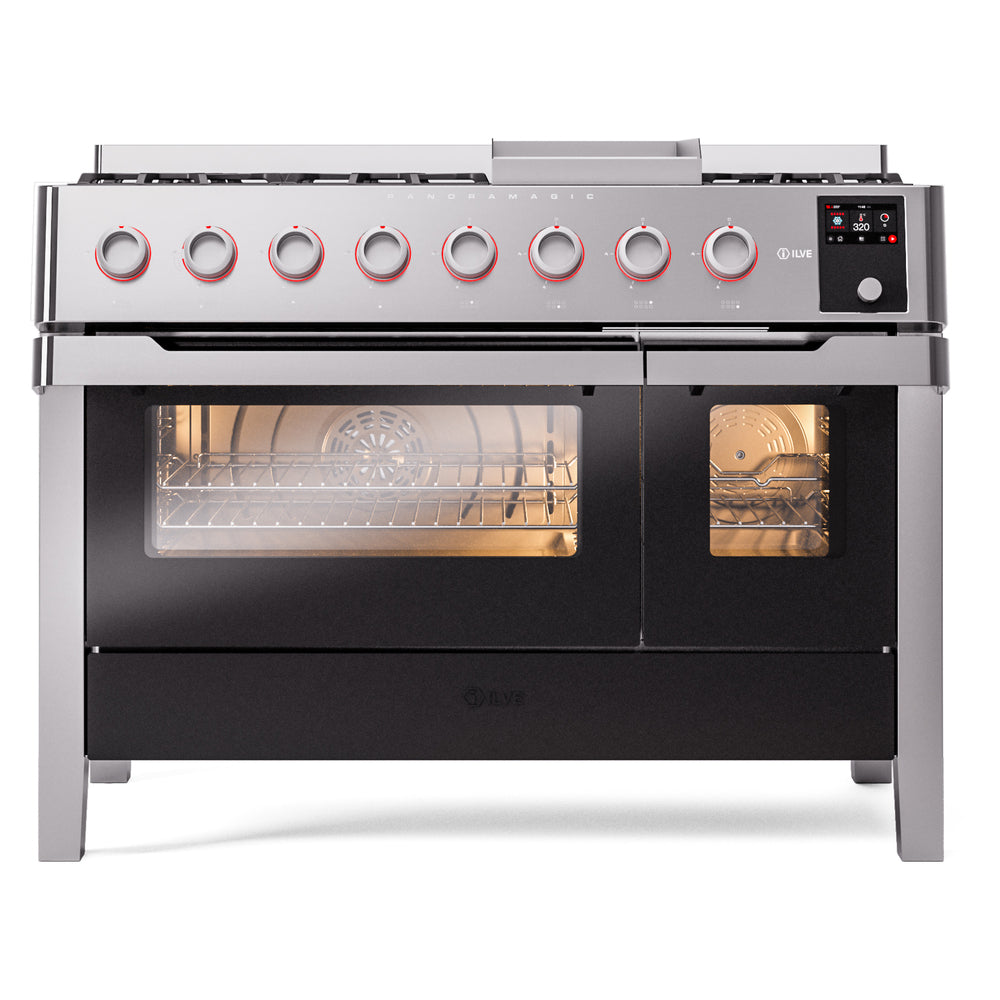

The Panoramagic 48″ dual fuel range is a top-of-the-line appliance that combines cutting-edge technology with Italian culture design to the kitchen. This range features 8 gas burners and a griddle, equipped with total black brass burners treated with non-stick nanotechnological coating. It also boasts dual oven capacities of 3.5 & 1.52 cu. ft. and a 4.3″ digital touch screen control.
A tradition of the contemporary kitchen that withstands the test of time.
It was during the fantastic 1960s that ILVE launched Panoramagic: the free-standing model that revolutionised the panorama of the domestic kitchen. Today, this tradition of Italian style and technology continues to take charge and fascinate in an updated form and with a full range of solutions to fit into any interior design.
Unique design that combines the technical features of professional kitchens with the Italian culture of design, Panoramagic range cookers come in three models, all with a 4.3-inch touch screen: 48 inches with double oven and precise temperature control, 36 inches with 6 burners or with induction cooktop (hob) with 6 zones. The gas cooktops (hobs) use dual burners up to 20,000 BTU as standard and a highly professional nanotechnological treatment to achieve a non-stick surface with a total black finish.

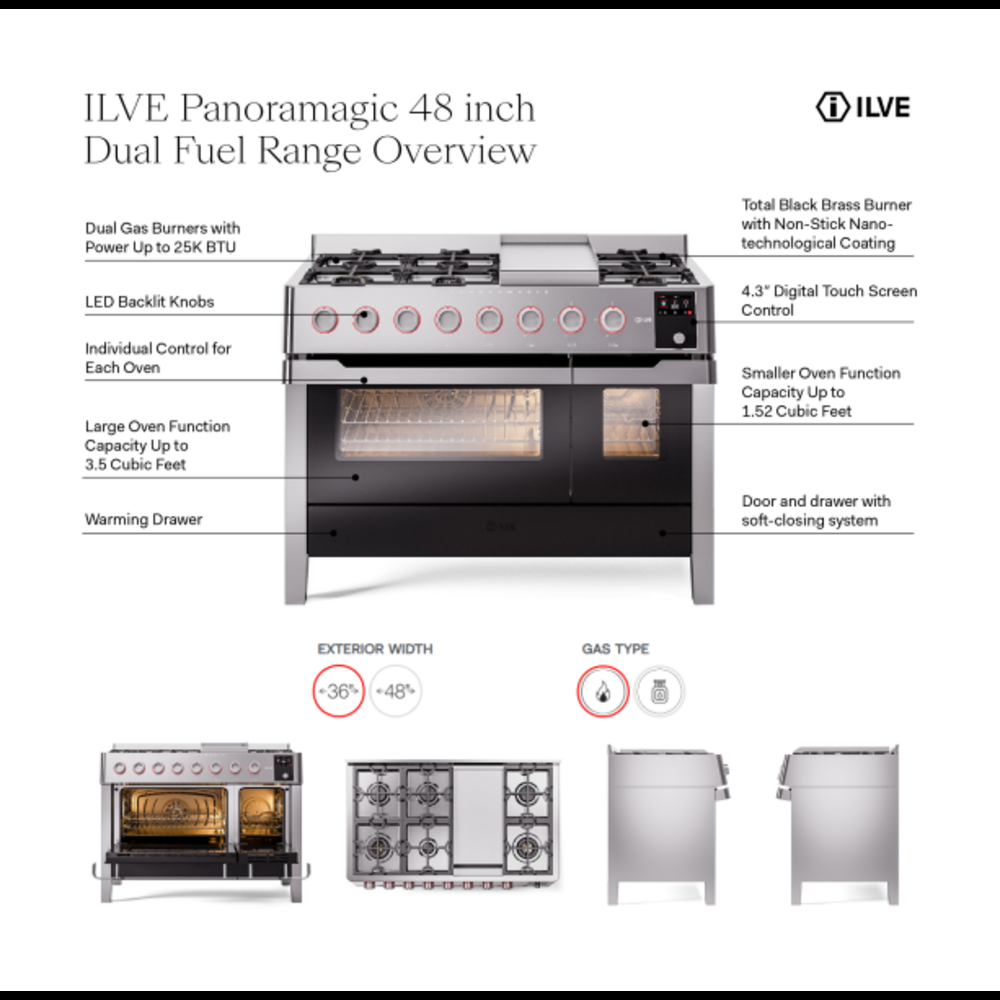

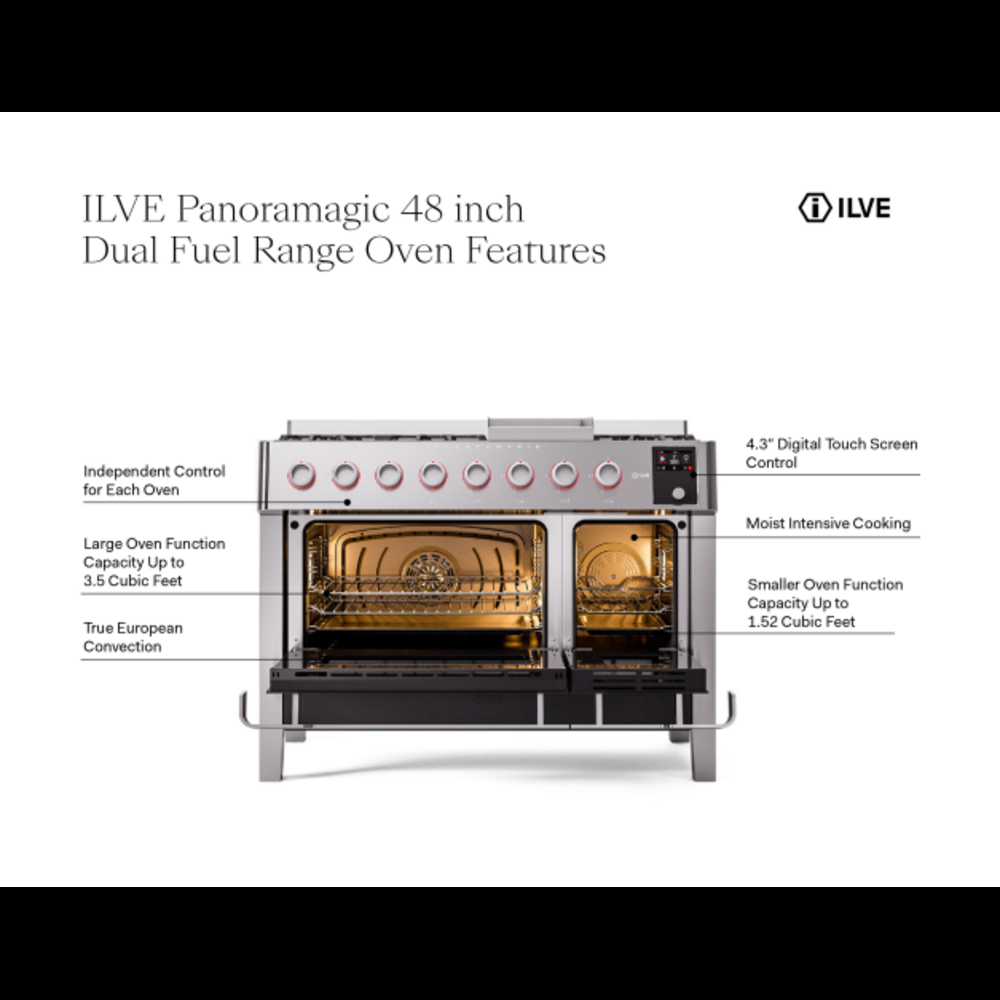

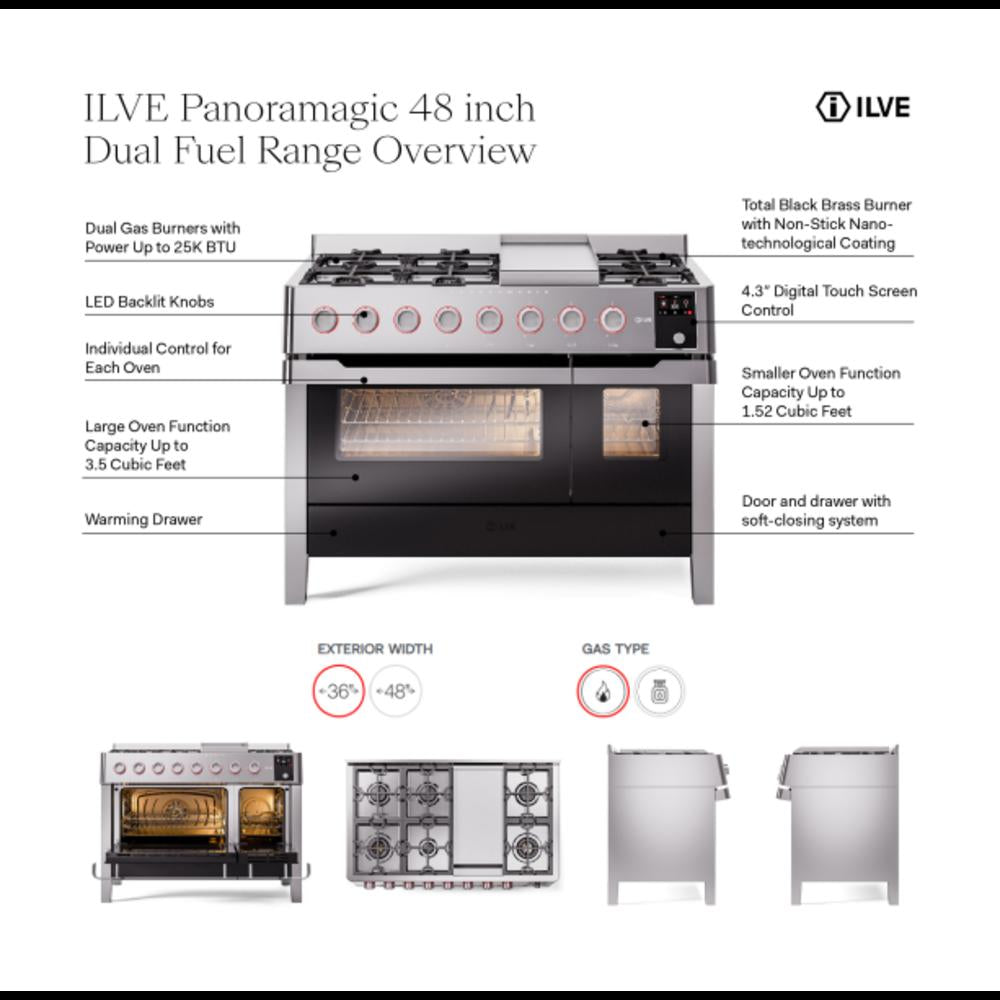

Features
-

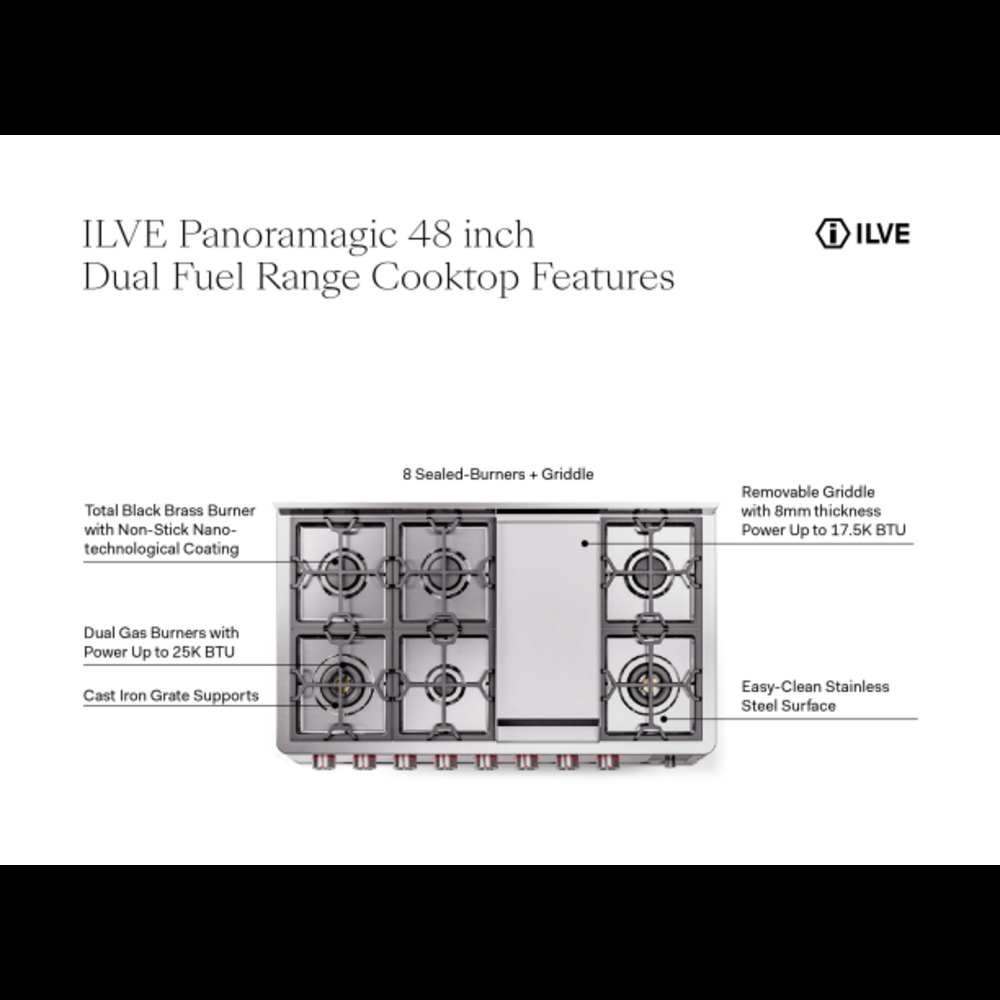

Total Black brass burners with non-stick nanotechnological treatment
-
Dual gas burners with power up to 20,000 BTU as standard
-
Highly specialized cooktops
-

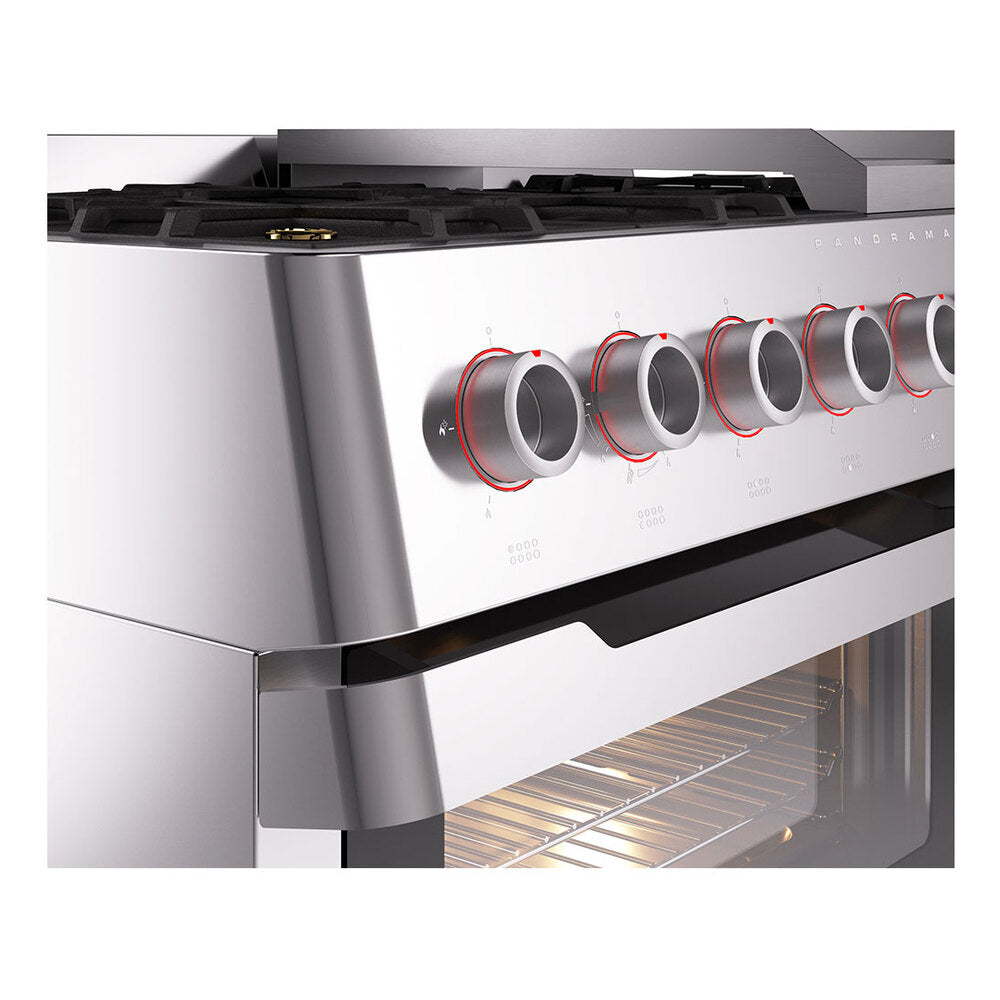

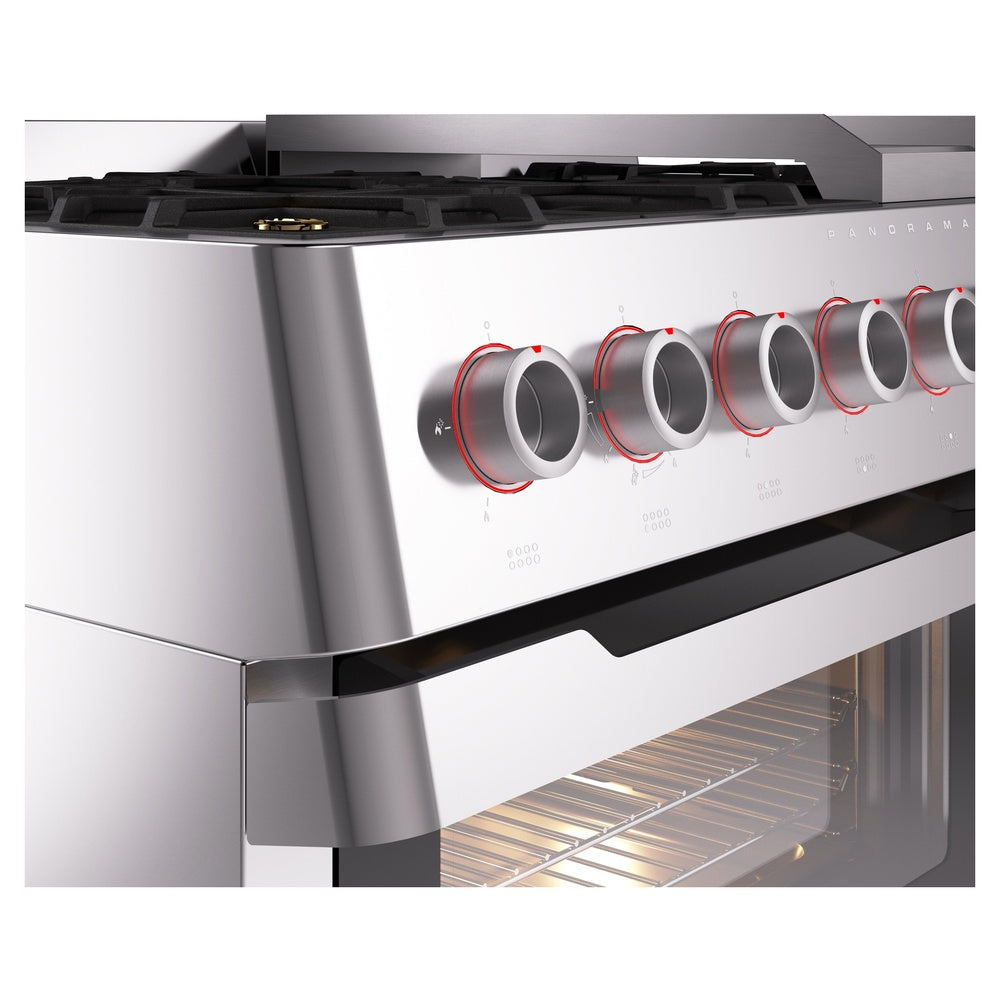

LED backlit knobs
-
Cooktop (hob) with cast iron pan supports
-
4.3″ digital touch screen control
-
Door with soft-closing system
-
Precise electronic temperature control
-
Steam discharge (moist cooking)
-
Temperature cooking probe
-
Cold oven door with triple removable glass
Dimensions
| Specification | Measurement |
|---|---|
| Exterior Width | 48″ |
| Width | 47 7/8″ |
| Depth | 29 1/4″ |
| Height | 35 3/4″ |
| Depth with Door Open (90°) | 41″ |
| Product Weight | 458 lbs |
Other Details
| Category | Details |
|---|---|
| Brand | ILVE |
| Series | Panoramagic |
| Appliance Category | Range |
| Design Style | Modern |
| Trim | Satin |
| Fuel Type | Dual Fuel |
| Style | Freestanding |
| Control Location | Front |
| Total Capacity | 5.02 cu. ft. |
| Number of Ovens | Double Oven |
| Main Oven Capacity | 3.5 cu. ft. |
| Second Oven Capacity | 1.52 cu. ft. |
| Cooktop Configuration | 8 Sealed Burners + Griddle |
| Number of Burners | 8 |
| Griddle | Yes |

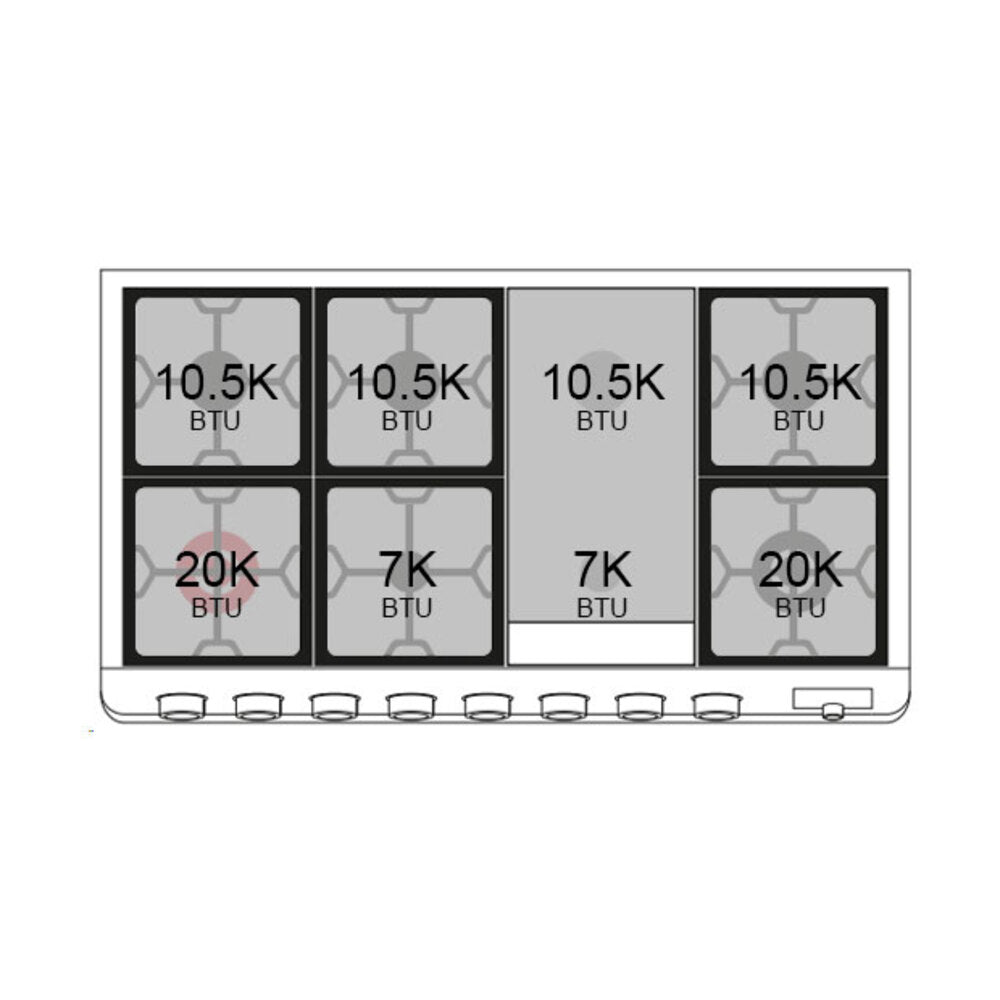

| Highest Burner Output | 20,000 BTU |
| Burner Output N1 | 20,000 BTU |
| Burner Output N2 | 7,000 BTU |
| Burner Output N3 | 7,000 BTU |
| Burner Output N4 | 16,500 BTU |
| Burner Output N5 | 10,500 BTU |
| Burner Output N6 | 10,500 BTU |
| Burner Output N7 | 10,500 BTU |
| Burner Output N8 | 10,500 BTU |
| Oven Control Type | TFT Electronic Touchscreen |
| Oven Door Type | Triple Glass Door |
| Oven Cleaning Type | Easy Clean Enamel Cavities |
| Main Oven Type | UOV 80 E3 TFT S |
| Second Oven Type | UOV 30 E3 TFT |
| Voltage | 240 |
| Amps | 28.5 |
| Convection | Yes |
| European Convection | Yes |
| Display Type | TFT Display |
| Number of Racks | 2 |

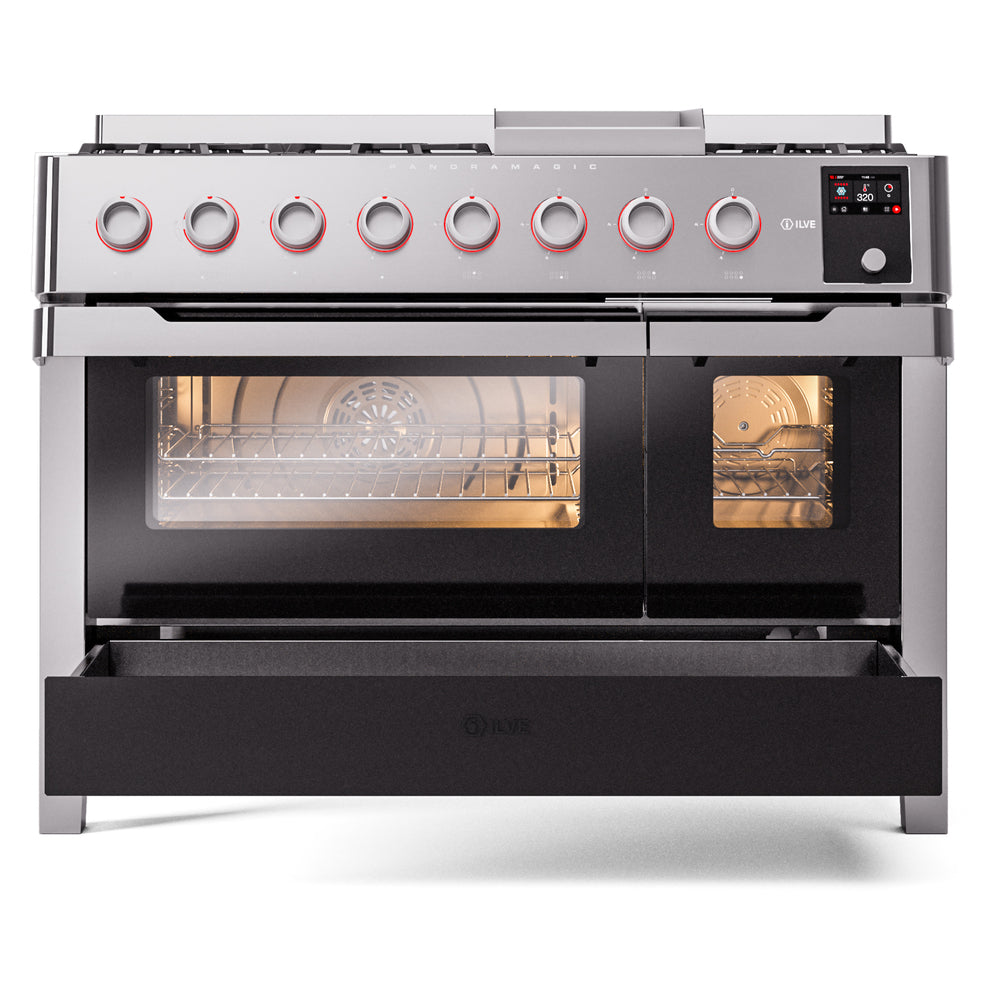

| Drawer | Warming Drawer |
| Timer | Yes |
| Temperature Probe | Yes |
| Rotisserie | Yes |
| Soft Close Door | Yes |
| Sabbath Mode | Yes |
Warranties & Certifications
| Item | Details |
|---|---|
| Warranty | 2 Year Parts and Labor |
| ADA Compliant | No |
| Star-K Certified | Yes |
Documents
-
How to Replace Internal and Intermediate Glass Panels on ILVE Ranges.pdf
-
How to Replace the Power Board on ILVE Panoramagic Ranges.pdf
-
How to Replace the Side Panel on an ILVE Panoramagic Range.pdf
-
How to Replace the TFT Display on ILVE Panoramagic Ranges.pdf
UPM12FDS3SS, UPM12FDS3SSLP
