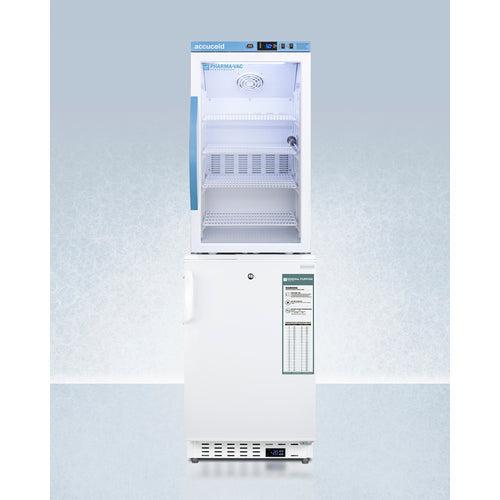

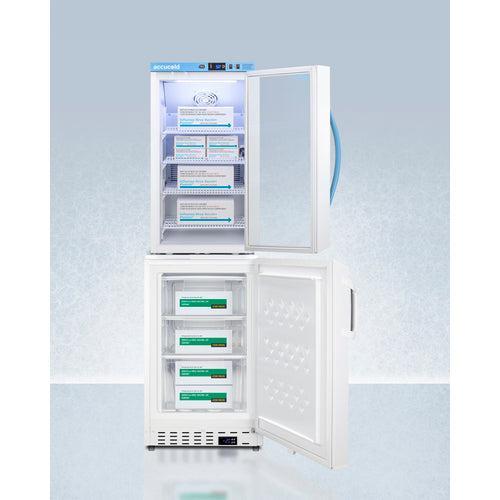

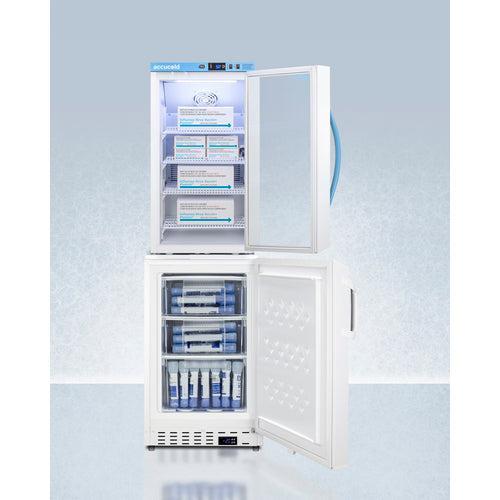

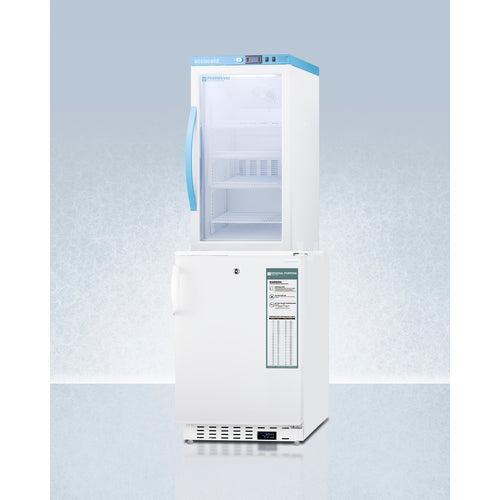

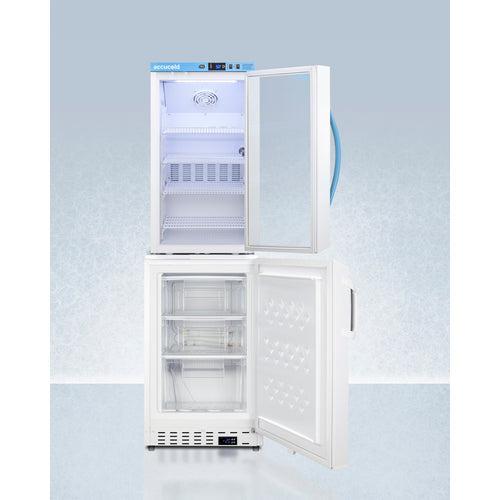

Summit 20" Wide Vaccine Refrigerator/Freezer Combination - ARG3PV-ADA305AFSTACK

$2,438.00 $2,965.00
You Save: $527.00 18%
Checkout Secure

Great reasons to buy from us:

  • Image of

    FREE SHIPPING

  • Image of

    GUARANTEED LOWEST PRICE

  • Image of

    FAST ORDER PROCESSING

  • Image of

    30 DAY MONEY BACK GUARANTEE

SPECIFICATIONS

Overview
Height of Cabinet 66.0" (168 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 5.47 cu.ft. (155 L)
Defrost Type Automatic
Door Glass
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 151.0 lbs. (68 kg)
Shipping Weight 171.0 lbs. (78 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101078625
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 3
Interior Light Yes
Refrigerator - Interior Height 28.38" (72 cm)
Refrigerator - Interior Width 15.25" (39 cm)
Refrigerator - Interior Depth 11.75" (30 cm)
Refrigerator - Capacity 3.0 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2 to 8°C
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 1.06 oz.
Freezer - Interior Height 23.75" (60 cm)
Freezer - Interior Width 14.5" (37 cm)
Freezer - Interior Depth 17.0" (43 cm)
Freezer - Capacity 2.47 cu.ft
Freezer - Shelf Type Drawers
Freezer - Shelf Qty 3
Thermostat Type Digital
Fan Type Interior
Level Legs 2
Freezer - Temperature Range -25° to -15°C
Freezer - Refrigerant Type R600a
Freezer - Refrigerant Amount 1.34 oz.






AVAILABLE UPGRADES

Exterior
DTFAR-Temperature display converted to Fahrenheit LHD - Left hand door swing
DL2B - Factory installed NIST calibrated digital data logger (DDL) Extra key
Lock
KAL-Keyless Access Lock






FEATURES

Space-saving design

Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

Easy assembly

Unit ships in three boxes for customer to install the StackRack on the bottom freezer and place and secure the refrigerator on top

+/-1ºC Variation (refrigerator)

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

-25°C capable (freezer)

Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -25º to -15ºC (freezer)

Antimicrobial silver ion-coated handle (refrigerator)

Powder-coated handle with naturally occurring silver ions to help reduce germ spread

Temperature alarms

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Automatic defrost with adjustable cycle defrost (refrigerator)

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Remote alarm contacts (refrigerator)

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Manual defrost (freezer)

Static cooling system for reduced temperature fluctuations

Access ports

Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (refrigerator) or 1 minute (freezer)

3" thick door (freezer)

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space

Flat door liners

Interior design of both units conforms to CDC guidelines to ensure stable conditions for sensitive materials

Double pane tempered glass door (refrigerator)

Provides a full display of stored contents

Audible power failure alarm (refrigerator)

Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm (refrigerator)

Audible and visual alarm warns if the sensor is disrupted

Password protection (refrigerator)

Control panel requires password entry to adjust the parameters beyond the set point

Microprocessor control panel (refrigerator)

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Adjustable digital thermostat (freezer)

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

Resettable min/max display (refrigerator)

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed locks

Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)

Adjustable plastic-coated wire shelves for improved circulation (refrigerator)

Designed to accommodate a variety of sizes for flexible storage

Basket shelves (freezer)

Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened

Hospital grade cords with 'green dot' plugs

Refrigerator & freezer have pre-installed hospital grade cords with 'green dot' plugs for added safety in high traffic areas

Interior light (refrigerator)

Energy efficient LED lighting with internal on/off switch

Self-closing door (refrigerator)

Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing

No internal fans (freezer)

Temperature remains more stable with a static cooling system

Sealed back (freezer)

Space-saving design that offers easier cleanability

Magnetic door gaskets

Quality door gaskets ensure a tight seal for energy savings and improved performance of each unit

Extended warranty (refrigerator)

2 years parts and labor/5 years compressor

Eco-Friendly (refrigerator)

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Versatile design (refrigerator)

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations







DESCRIPTION

Accucold offers innovative solutions to vaccine storage with stackable purpose-built refrigerator-freezer combinations design to support meeting CDC/VFC guidelines.  Sized at just 20" wide, the ARG3PV-ADA305AFSTACK combines the 3 cu. ft. ARG3PV auto defrost vaccine refrigerator with ADA305AF 2.47 cu. ft. manual defrost vaccine freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery.  Refrigerator ARG3PV is part of Accucold's Pharma-Vac Performance Series, designed to meet the demanding needs of vaccine storage. It utilizes a microprocessor temperature controller with an adjustable control range from +2 to +8ºC. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. Inside, the ARG3PV utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.  The refrigerator is designed to be stacked on top of the ADA305AF, a -25ºC  vaccine freezer that utilizes manual defrost operation. The freezer has  3" thick door for efficient insulation, and a flat door liner, as recommended by the CDC, to ensure users don't store sensitive materials on the door. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit is also equipped with high/low temperature and open door alarms, as well as an access port to accept additional monitoring equipment.  Both units include front-mounted keyed locks, powerful magnetic gaskets to ensure a positive seal, and hospital grade cords with 'green dot' plugs for added safety in high traffic areas. The refrigerator has a self-closing door. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs.  NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
