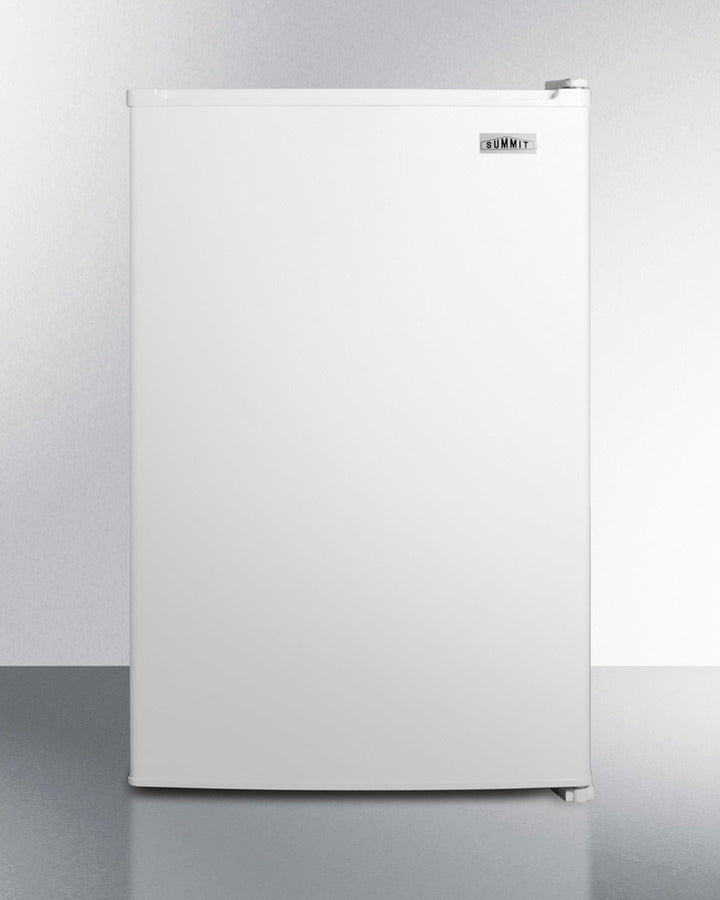

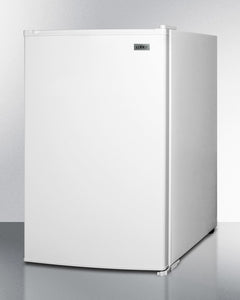

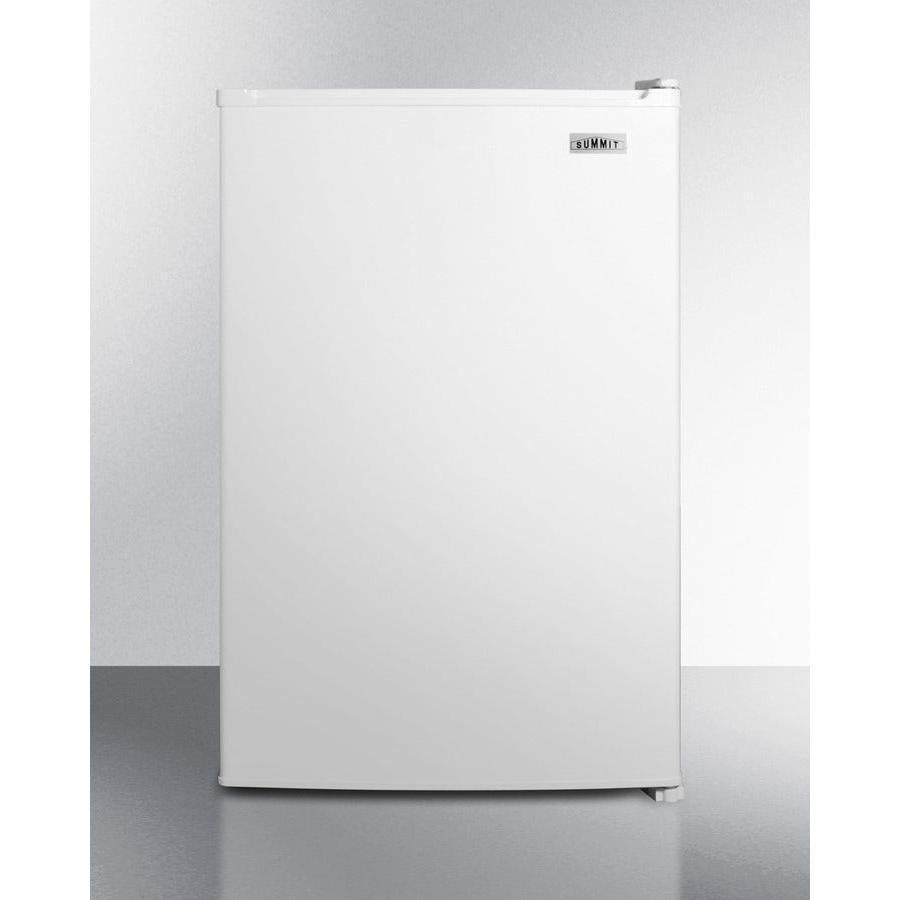

Summit 22" Wide All-Freezer Freestanding Upright Compact Freezer with 5.04 cu. ft. Capacity, CFC Free, Manual Defrost, Door Storage, CARB Compliant in White - FS605

$783.00 $850.00
You Save: $67.00 8%
Checkout Secure

Great reasons to buy from us:

  • Image of

    FREE SHIPPING

  • Image of

    GUARANTEED LOWEST PRICE

  • Image of

    FAST ORDER PROCESSING

  • Image of

    30 DAY MONEY BACK GUARANTEE

SPECIFICATIONS

Overview
Height of Cabinet 33.13" (84 cm)
Height to Hinge Cap 33.63" (85 cm)
Width 21.38" (54 cm)
Depth 25.75" (65 cm)
Depth with door at 90° 44.5" (113 cm)
Capacity 5.04 cu.ft. (143 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 301.0kWh/year
Amps 1.4
Weight 90.0 lbs. (41 kg)
Shipping Weight 93.0 lbs. (42 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101085975
Freezer
Door Swing RHD
Reversible No
Interior Height 29.5" (75 cm)
Interior Width 18.63" (47 cm)
Interior Depth 19.0" (48 cm)
Shelf Type Wire
Shelf Qty 2
Full Door Shelves 3
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.94 oz.
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 18.63" (47 cm)
Compressor Step Depth 4.0" (10 cm)
Sound Level 32.8 dB




AVAILABLE UPGRADES

Exterior
HG - Hospital grade cord Latch - Factory-installed door latch requires manual release to open unit
Alarm/Thermometer - Factory-installed alarm with external temperature readout CAS3 3" casters
DT - Digital thermostat PH - Probe Hole
DL2B - Factory installed NIST calibrated digital data logger (DDL)
Lock
AC Keypad - AC powered keypad lock KEYPAD - Battery-powered keypad door lock
L-SideLock L-TopLock
Handle
TBC Copper Towel Bar Handle CP Full-Length Copper Pipe Handle







FEATURES

Upright all-freezer

Made in North America and designed for residential applications

Full 5 cu.ft. capacity

Generously sized interior offers more storage space than any freezer in this size class

Slim counter height dimensions

Just 22 inches wide for easy placement in any small location, including laundry rooms, offices, second kitchens, & more

Manual defrost

Static cooling system for efficiency and improved performance

Fixed wire shelves

Two interior shelves with built-in cooling coils to ensure proper cold storage for your items

Door shelves

Three racks for added storage options

Dial thermostat

Simple and intuitive analog controls located inside for easy temperature management

Quiet operation

Runs at under 33 dB for a quiet performance in any setting

Fully finished white cabinet

Allows the unit to be used freestanding

Leveling legs

Front adjustable feet let you ensure a clean fit on uneven surfaces

Right hand door swing

Note: this door is not reversible

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations





DESCRIPTION

Summit's selection of North American refrigeration includes the largest capacity all-freezer in a counter height size.

Model FS605 is a freestanding residential upright freezer with a full 5 cu.ft. interior capacity. Two fixed wire shelves feature built-in cooling coils to ensure stored items are stored under the right temperature conditions. Three door racks offer additional storage convenience. This unit utilizes a static manual defrost system and unobtrusive technology with our simple and intuitive dial temperature controls.

The FS605 comes in a textured white finish and can be ordered with a stainless steel door (see model FS605SSVH). This unit has a non-reversible right hand door swing.

With its generous storage capacity and easy-fitting size, the FS605 is the perfect solution for adding extra frozen storage to shared spaces, laundry rooms, second kitchens, offices, and other settings.






DOWNLOADS

Download

BROCHURE w/ DRAWINGS
FS605.pdf

Download

TECHNICAL DRAWING (.dwg)
FS605_FREEZERS__A-C_2000_.dwg

Energy Guide
Shipping This item originates and ships within the United States. Will usually ship within 1 business day if in stock. *Note that due to recent supply chain delays, some products may be backordered, please call to confirm!*



Please allow 1-2 weeks for your order to arrive after shipping confirmation. Product ship times may be longer if freight carrier is required. We source products from US suppliers at the lowest prices. This means sometimes you may have to wait a little longer to get your order but it's always worth it!
