Summit 24" Wide Built-In Beverage Center, ADA Compliant - AL57G

$1,232.00 $1,635.00
You Save: $403.00 25%

Cabinet Type

Checkout Secure

Great reasons to buy from us:

  • Image of

    FREE SHIPPING

  • Image of

    GUARANTEED LOWEST PRICE

  • Image of

    FAST ORDER PROCESSING

  • Image of

    30 DAY MONEY BACK GUARANTEE

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.0 cu.ft. (142 L)
Defrost Type Frost-Free
Door Glass
Cabinet Black and Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 290.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 140.0 lbs. (64 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101052274 and 761101053912
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.6 dB
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)





FEATURES

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Commercially approved

ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Factory installed lock

Keyed lock for a secure interior

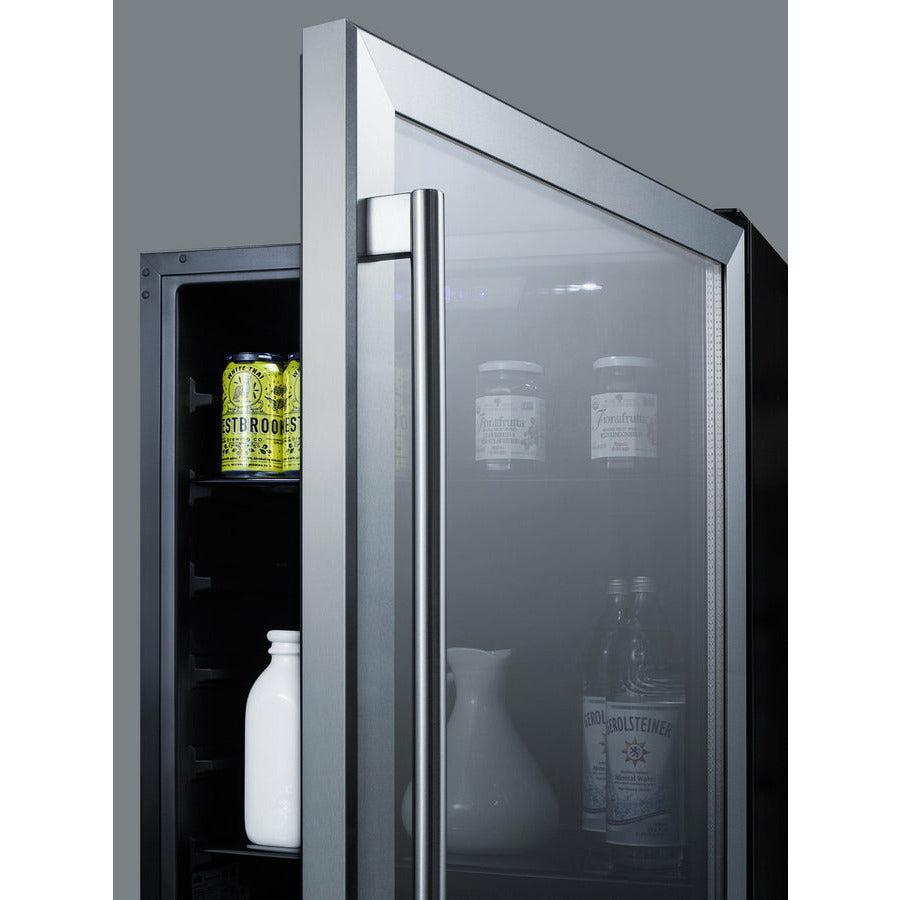

Double pane tempered glass door

Stainless steel trimmed glass door offers a heat-safe view of the interior

Professional handle

Stainless steel handle completes the look

Frost-free operation

No-frost operation for minimum user maintenance

Digital thermostat

Electronic controls located inside the unit for precise temperature management

Recessed LED light

Efficient and attractive presentation with LED lighting

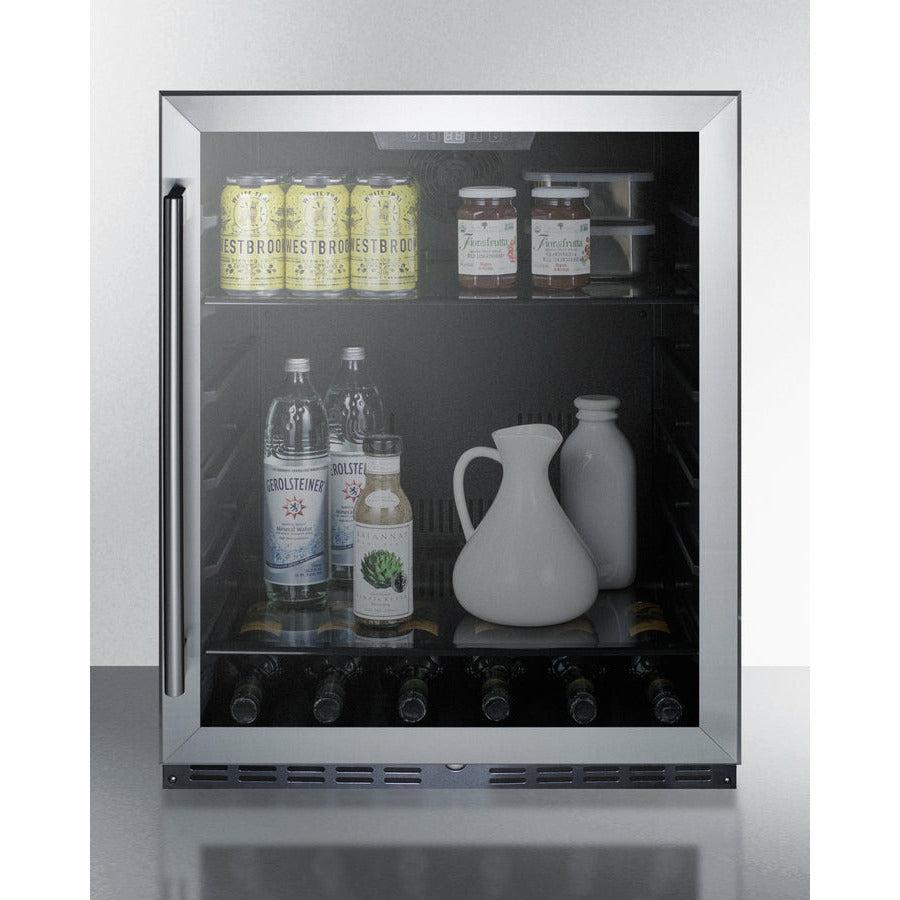

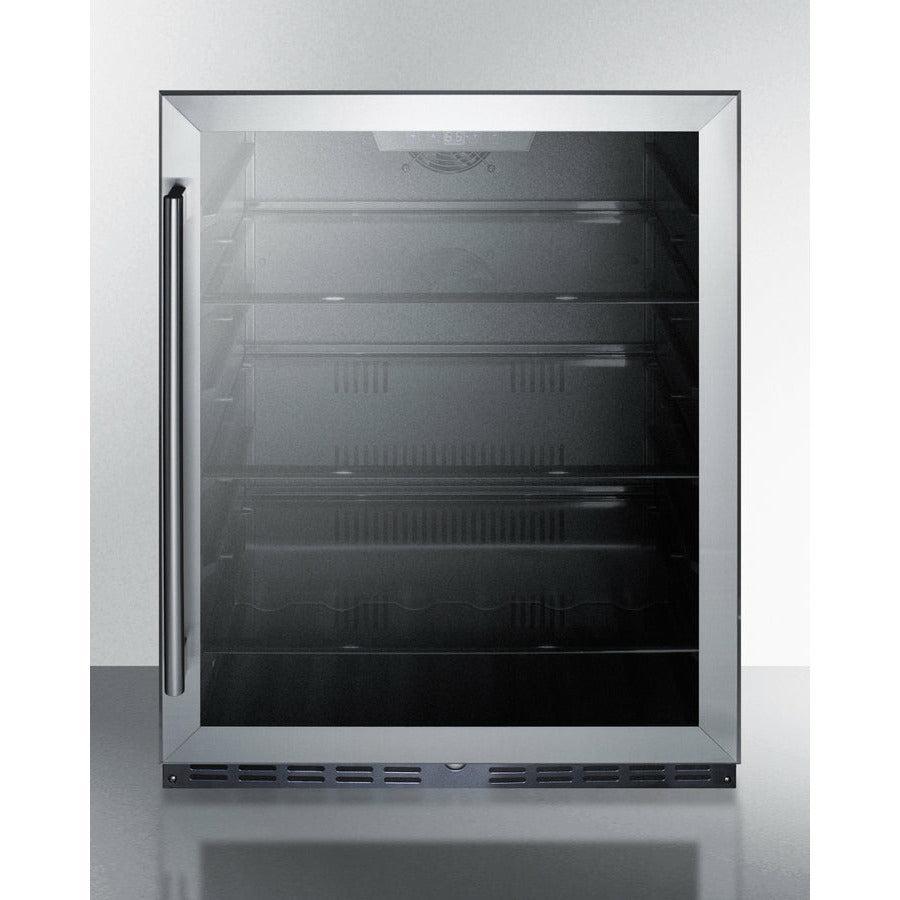

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Bottle slots

Floor is specially slotted to store wine and other bottles safely in place

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Reversible door

User-reversible door swing for added flexibility

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Sealed back

Space-saving design that offers easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

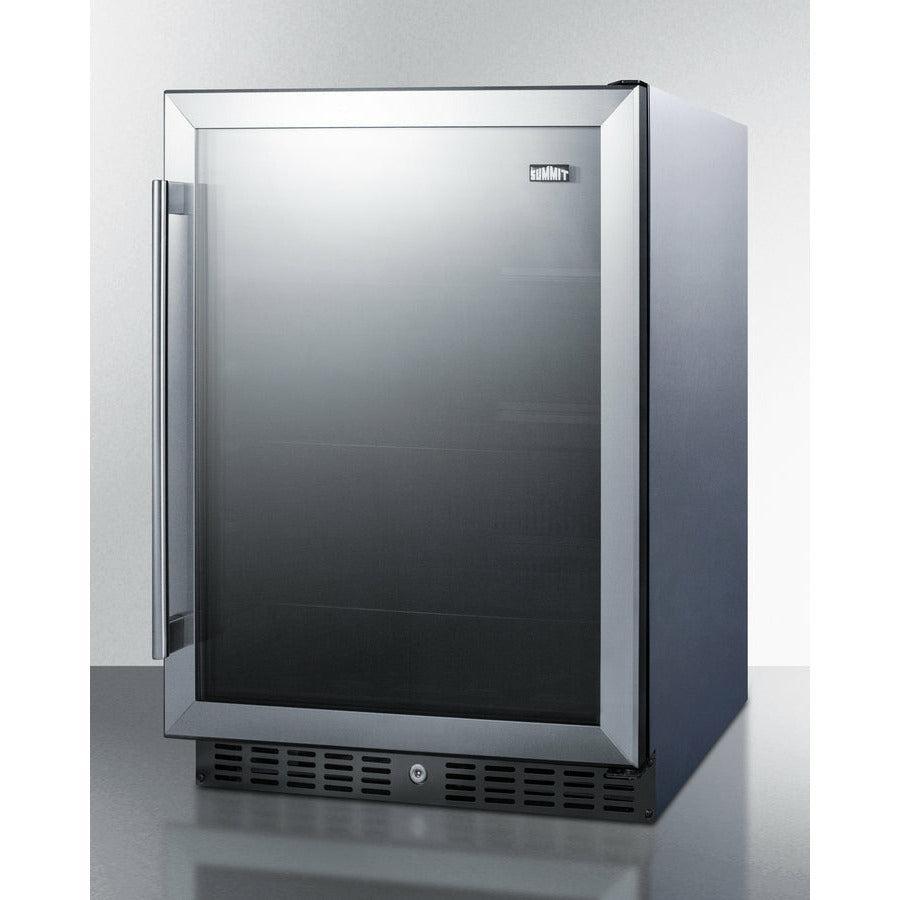

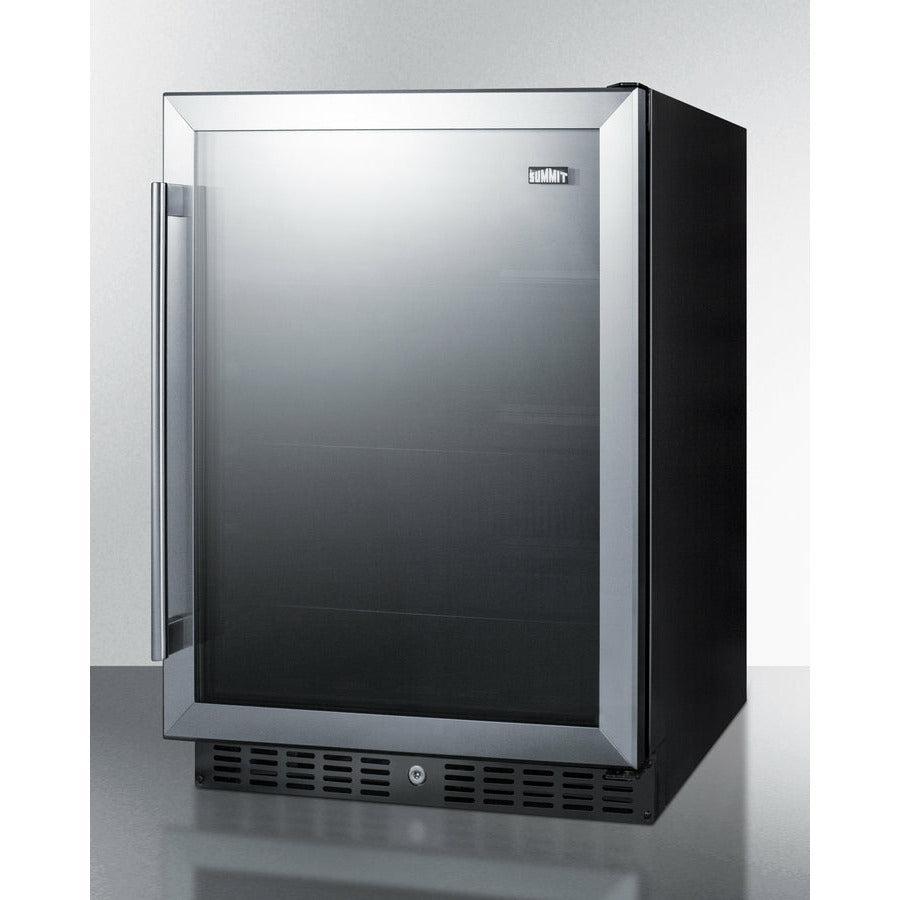

Fully finished black cabinet

Allows the unit to be used freestanding

or

Stainless steel wrapped cabinet

Stainless steel exterior for a professional look with lasting durability



100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations





DESCRIPTION

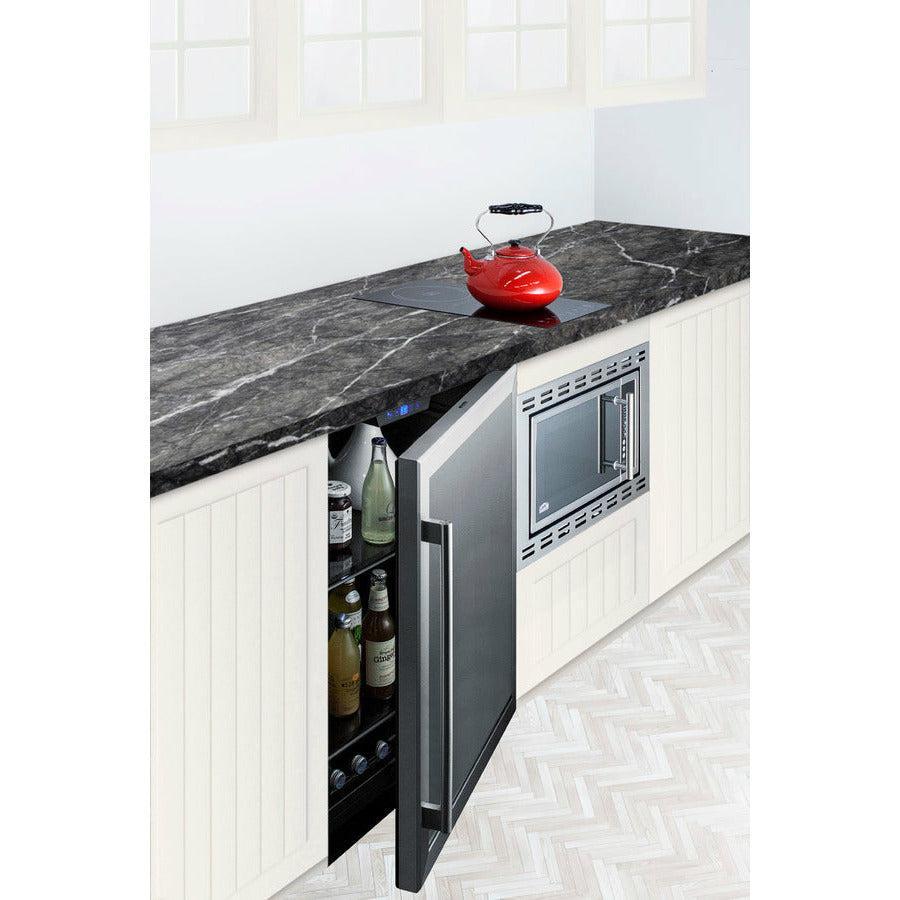

SUMMIT's ADA compliant line of built-in refrigerators brings quality and style to residential and commercial settings with space restraints.

Sized with a convenient 24" footprint, the AL57G is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This unit has a user-reversible double pane tempered glass door with attractive stainless steel trim. A stainless steel handle completes the look and a factory installed lock in the kickplate offers additional security. The flush back design helps to make cleaning easier, while the right angle cord offers added space savings.

Inside, the AL57G utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The AL57G refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens.





DOWNLOADS

Download

BROCHURE w/ DRAWINGS
AL57G.pdf

Download

TECHNICAL DRAWING (.dwg)
AL57G_REFRIGERATOR__A-C2000_.dwg

Download

MSDS INFORMATION
R600a_K.pdf

and For Stainless Steel Cabinet

Download

BROCHURE w/ DRAWINGS
AL57GCSS.pdf

Download

TECHNICAL DRAWING (.dwg)
AL57G_REFRIGERATOR__A-C2000_.dwg

Download

MSDS INFORMATION
R600a_K.pdf

Energy Guide





AVAILABLE UPGRADES

Exterior
Latch - Factory-installed door latch requires manual release to open unit LHD - Left hand door swing
Door
T1 Door Tint T2 Door Tint
T3 Door Tint T4 Door Tint
T1S Door Tint







Shipping This item originates and ships within the United States. Will usually ship within 1 business day if in stock. *Note that due to recent supply chain delays, some products may be backordered, please call to confirm!*



Please allow 1-2 weeks for your order to arrive after shipping confirmation. Product ship times may be longer if freight carrier is required. We source products from US suppliers at the lowest prices. This means sometimes you may have to wait a little longer to get your order but it's always worth it!
