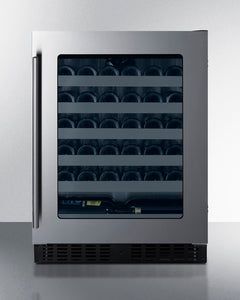

Summit 24" Wide Built-In Wine Cellar, ADA Compliant with 33 Bottle Capacity, Right Hinge, Glass Door, With Lock, 6 Extension Wine Racks, Digital Control, LED Light, Compressor Cooling, Factory Installed Lock, CFC Free, Sabbath Mode - ASDW2412

$1,583.00 $1,800.00
You Save: $217.00 13%
Checkout Secure

Great reasons to buy from us:

  • Image of

    FREE SHIPPING

  • Image of

    GUARANTEED LOWEST PRICE

  • Image of

    FAST ORDER PROCESSING

  • Image of

    30 DAY MONEY BACK GUARANTEE

SPECIFICATIONS

Overview

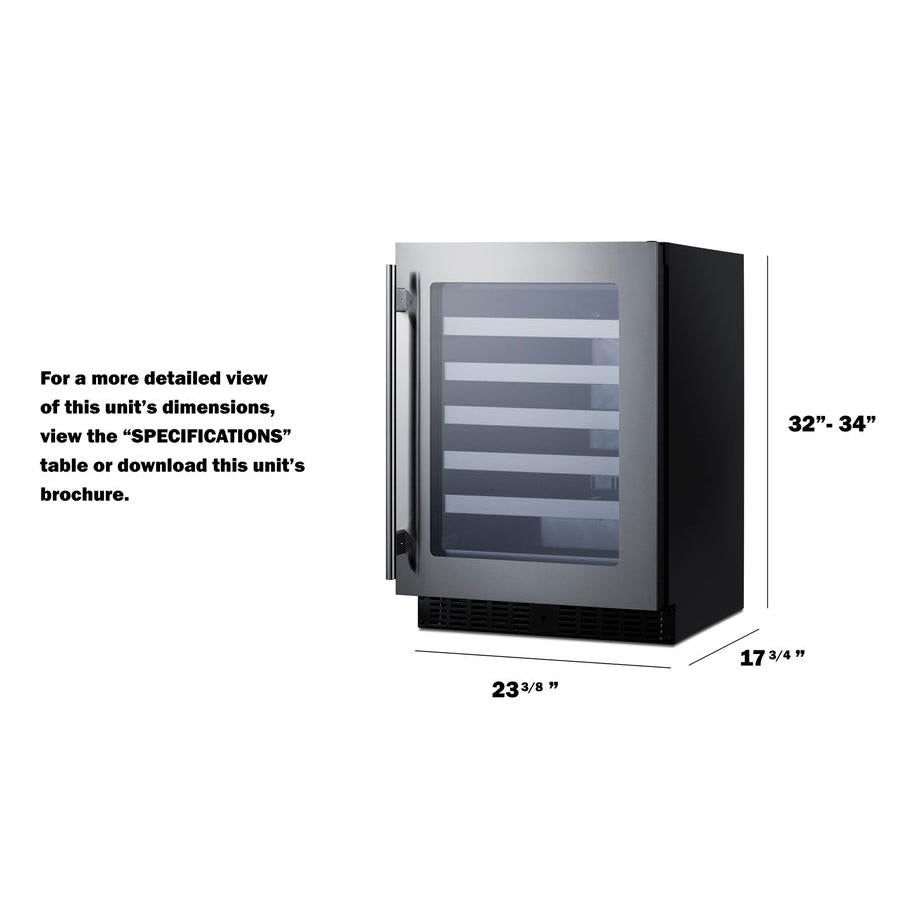

Height of Cabinet 32.0" (81 cm)
Width 23.38" (59 cm)
Depth 17.75" (45 cm)
Depth with Handle 19.63" (50 cm)
Depth with door at 90° 39.88" (101 cm)
Capacity 3.25 cu.ft. (92 L)
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Shipping Weight 140.0 lbs. (64 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101079462
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Adjustable Shelves Yes
Shelf Type Steel
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 24.25" (62 cm)
Interior Width 1 19.5" (50 cm)
Interior Depth 1 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Sabbath Mode Yes




AVAILABLE UPGRADES

Door
T2 Door Tint T1 Door Tint
T1S Door Tint T4 Door Tint
T3 Door Tint
Exterior
LHD - Left hand door swing







FEATURES

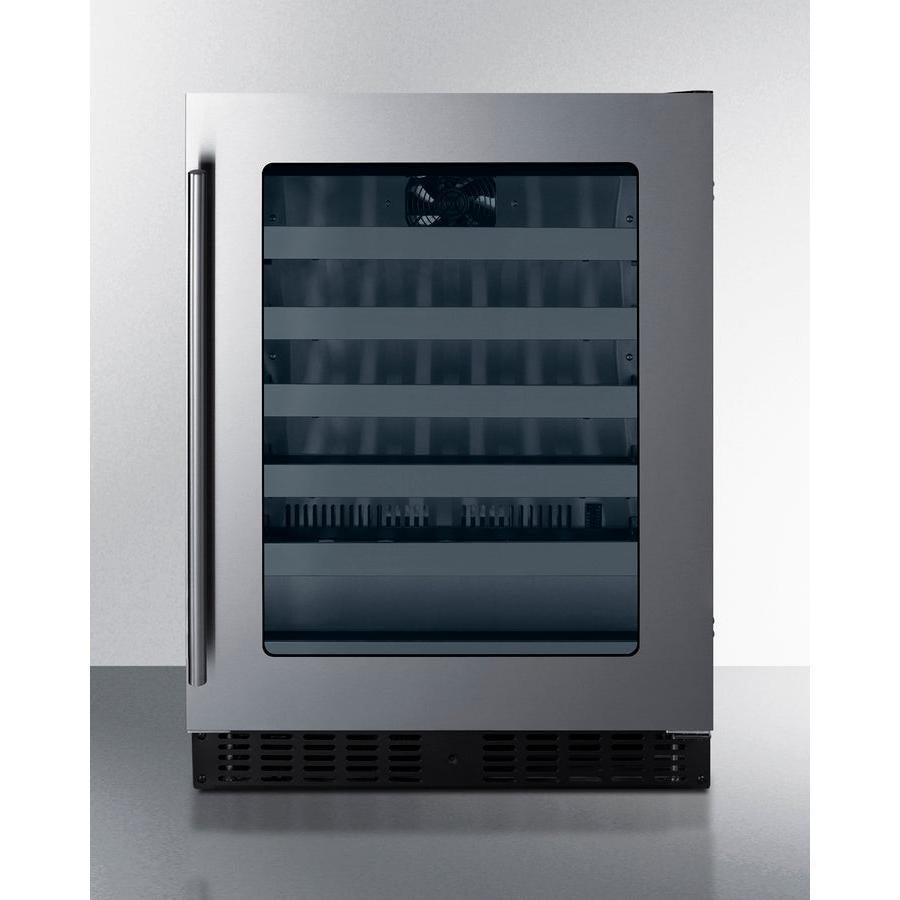

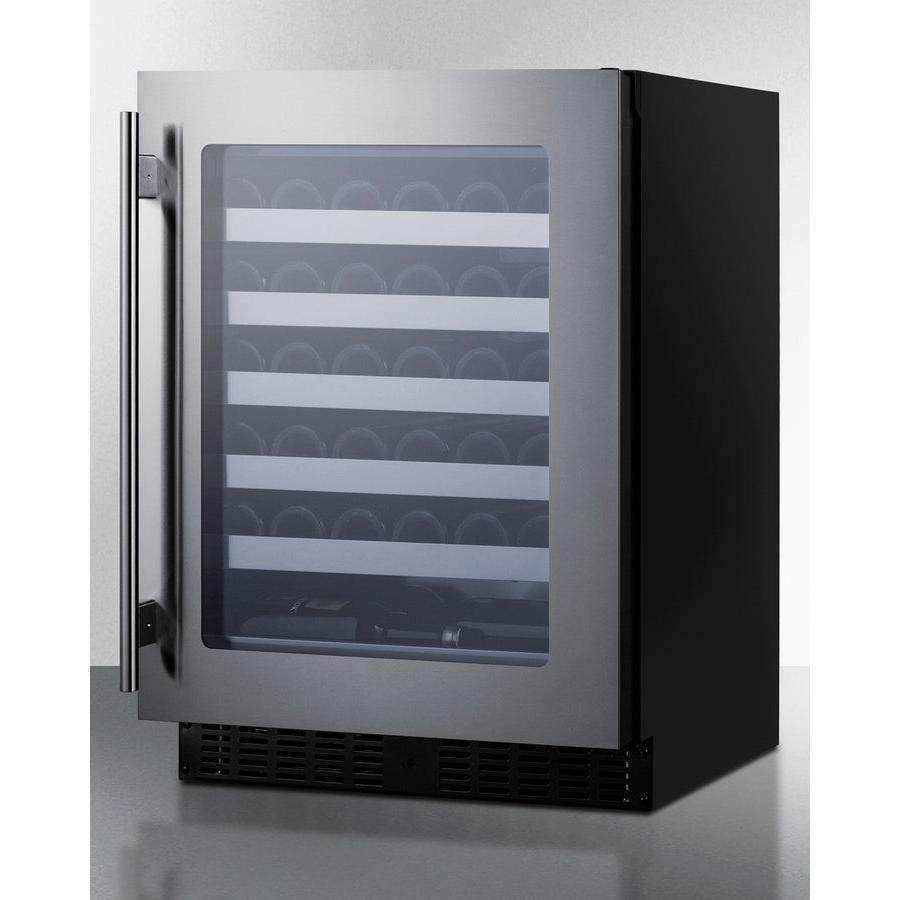

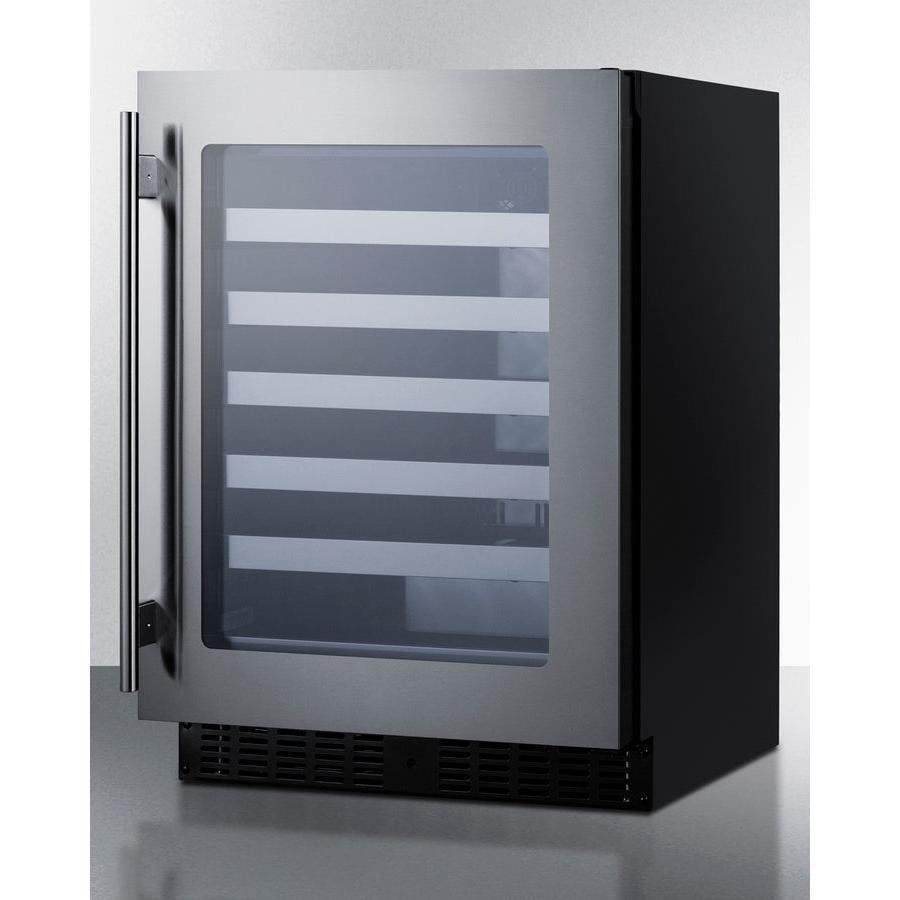

24" wide wine cellar

Single zone wine cooler for residential or commercial cold storage

Less than 18" deep

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

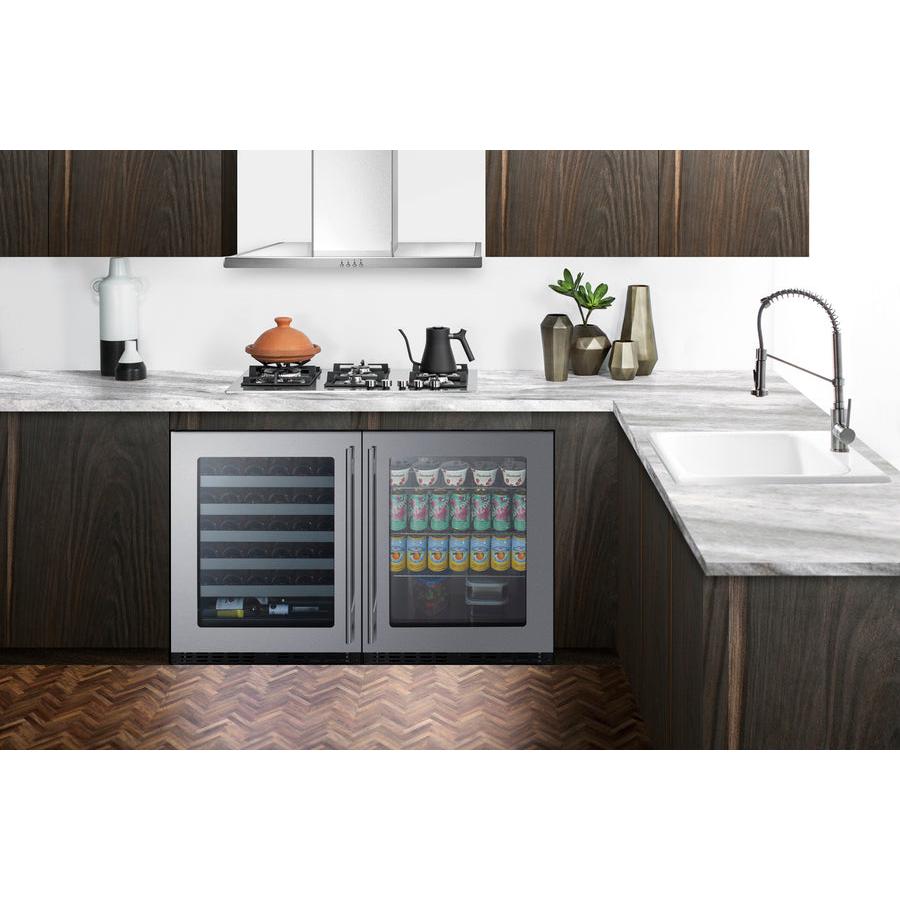

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Double pane tempered glass door

Elegant design offers a clear but protected view of your interior

Seamless stainless steel door trim

Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Factory installed lock

Keyed lock for a secure interior (2 keys included)

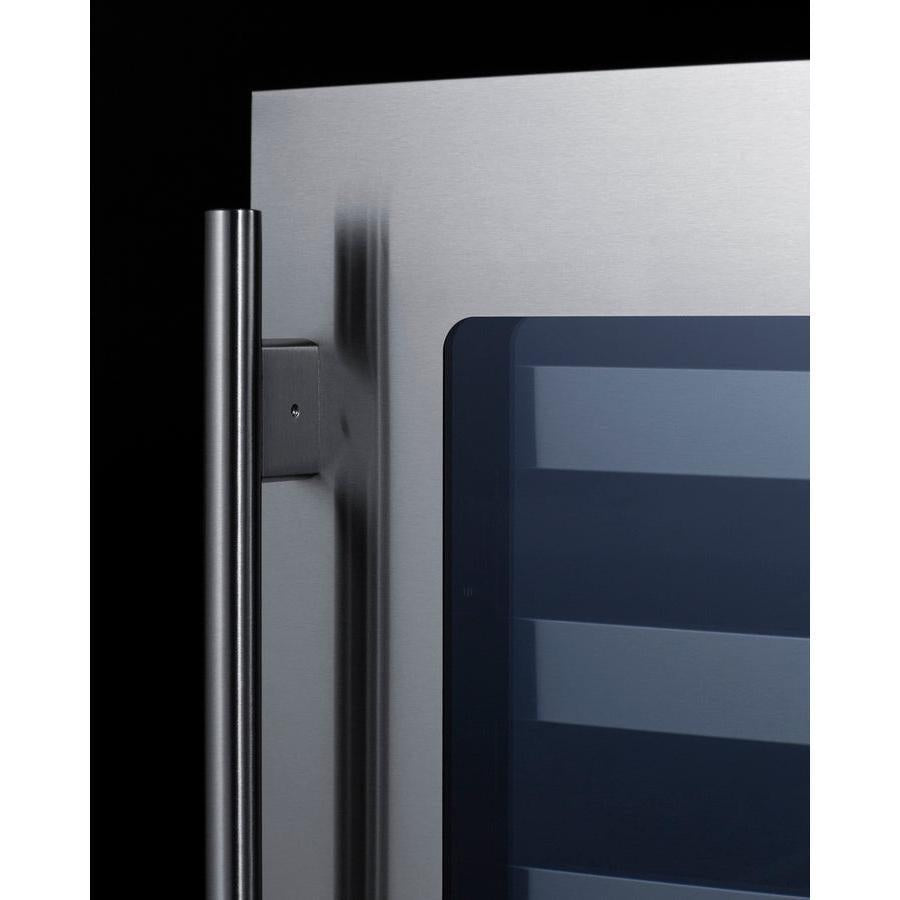

Professional handle

Stainless steel handle completes the look

Digital thermostat

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Dimmable LED lighting

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

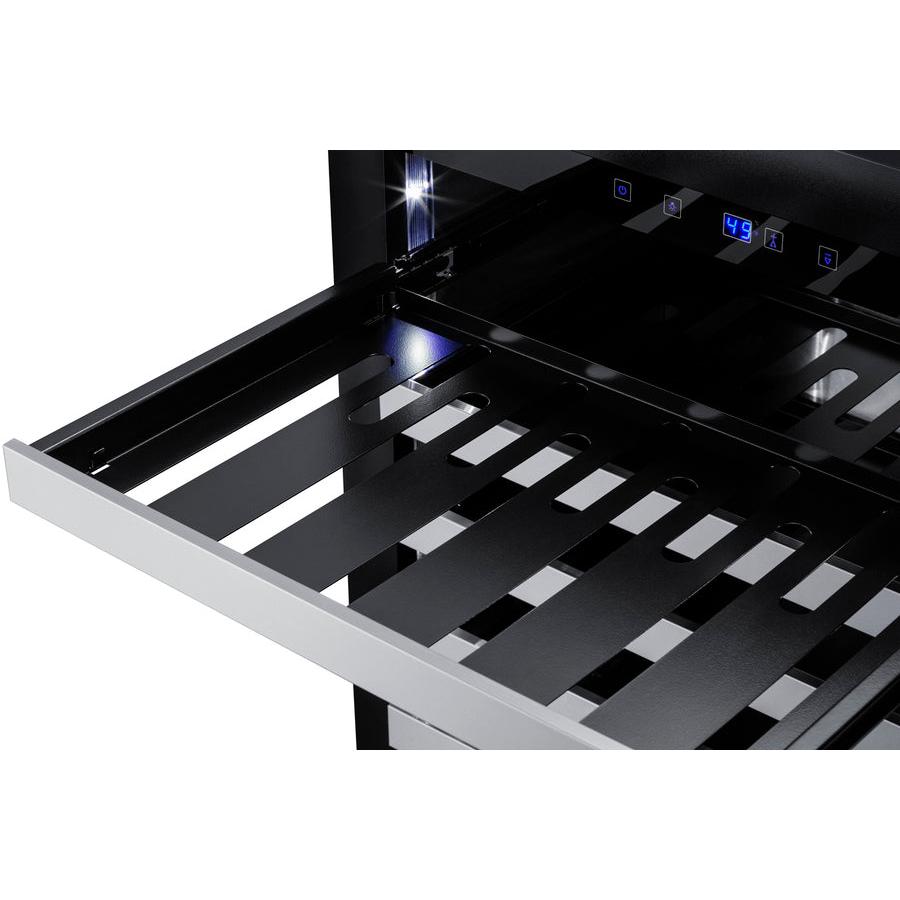

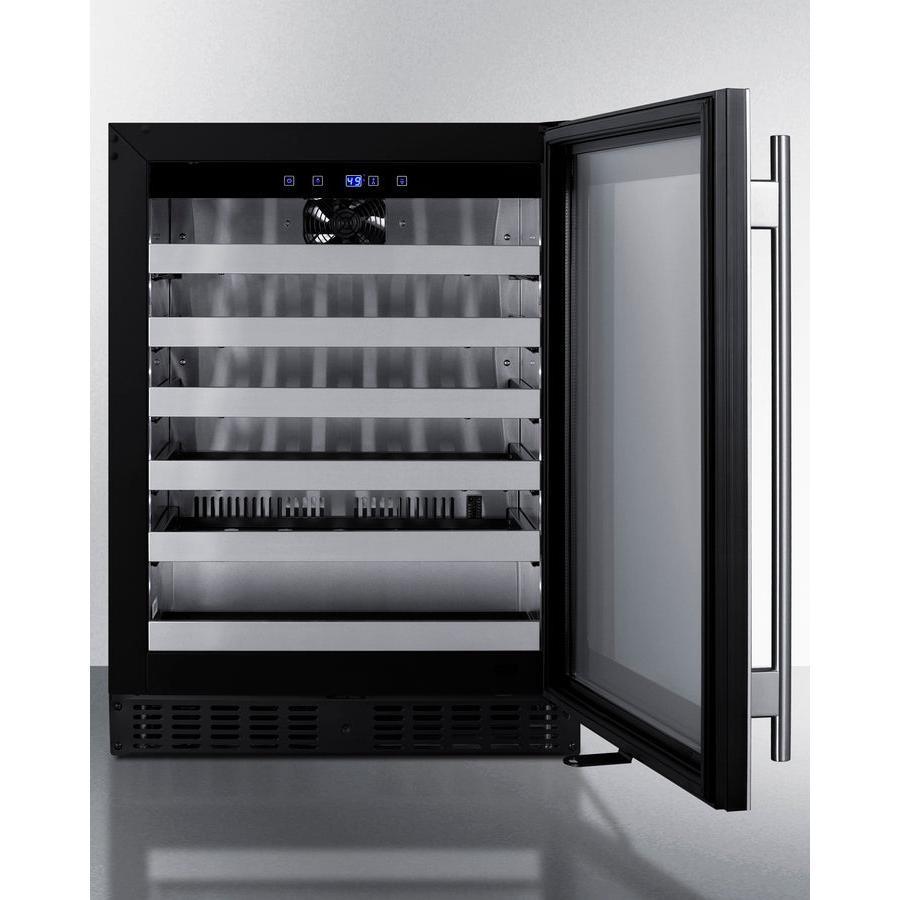

Commercial wine shelving

Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

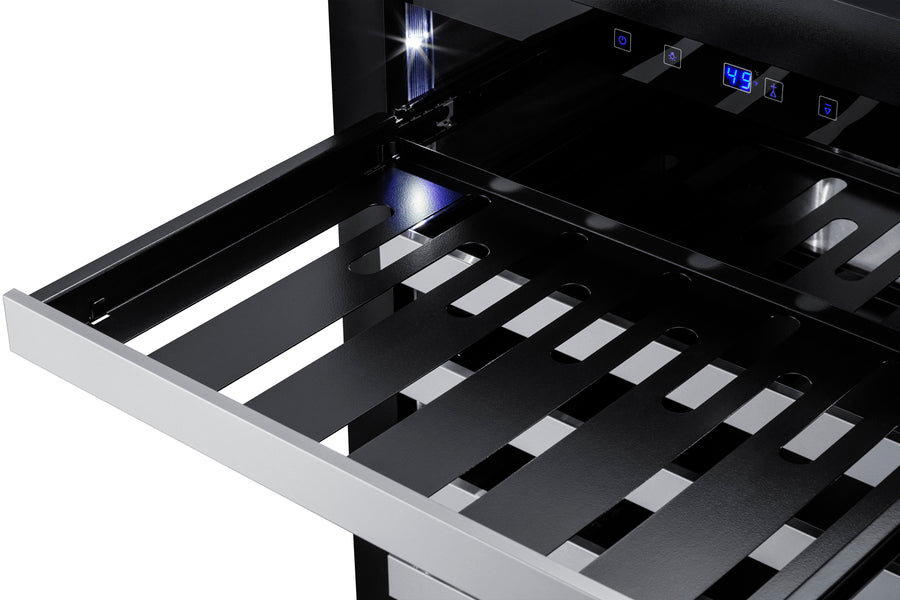

Smooth gliding extension

Shelving is set on ball-bearing glides for a smoother extension, making it easy to load

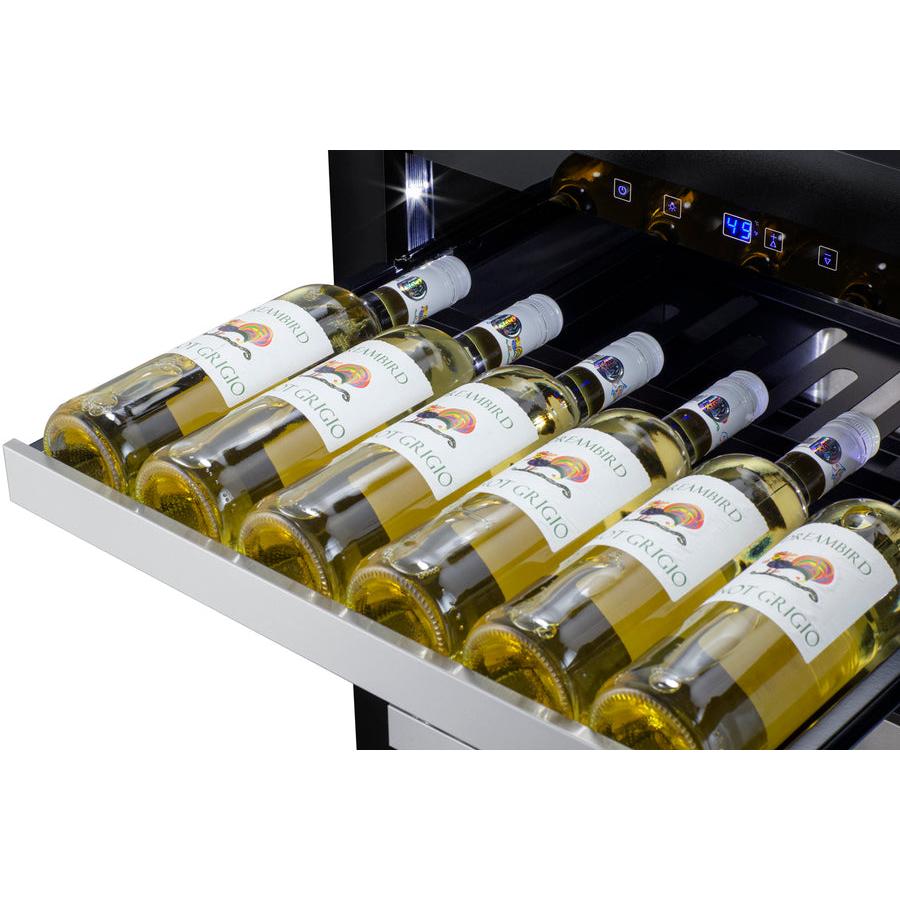

Large capacity

33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)

Frost-free operation

No-frost operation for minimum user maintenance

Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Integrated hinge

Flat hinge ensures no added height is needed when installing under a counter

Reversible door

User-reversible door swing for added flexibility

Fully finished black cabinet

Allows the unit to be used freestanding

Commercially approved

ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations







DESCRIPTION

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

Model ASDW2412 is a 24" wide 33-bottle single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock to protect your collection.

Inside, the ASDW2412 features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41º and 64ºF to accommodate red, white, or sparkling wine. Our uniquely designed steel shelves in a jet black finish extend smoothly on ball-bearing glides, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The ASDW2412 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2411 beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.

NOTE: The interior can store up to 33 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the corks facing the rear for a better fit. Wider Burgundy bottles will also fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle design. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine. The lower shelf is designed to hold Bordeaux-style bottles horizontally. Please use care when loading and unloading this section.








DOWNLOADS

Download

BROCHURE w/ DRAWINGS
ASDW2412.pdf

Download

TECHNICAL DRAWING (.dwg)
ASDW2412.dwg

Download

ASSEMBLY DRAWING
ASDW2412-Assembly.pdf

Download

MSDS INFORMATION
R600a_K.pdf

Shipping This item originates and ships within the United States. Will usually ship within 1 business day if in stock. *Note that due to recent supply chain delays, some products may be backordered, please call to confirm!*



Please allow 1-2 weeks for your order to arrive after shipping confirmation. Product ship times may be longer if freight carrier is required. We source products from US suppliers at the lowest prices. This means sometimes you may have to wait a little longer to get your order but it's always worth it!
