SPECIFICATION
| Overview | |
| Height of Cabinet | 5.5" (14 cm) |
| Width | 29.88" (76 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | White or Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 13.0 lbs. (6 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101107233 or 761101107240 |
| Range Hood | |
| Installation | Under Cabinet |
| Venting | Convertible |
| Controls | Dial |
| Number of Fan Speeds | 2 |
| Maximum Air Movement | 300.0 CFM |
| Sone Rating | 6 |
| Duct Shape | 3 1/4" x 10" rectangular or 6/7" round with transition |
FEATURES
- 30" Wide ADA Compliant Range Hood: Designed for both ducted and ductless installations, fully compliant with ADA guidelines.

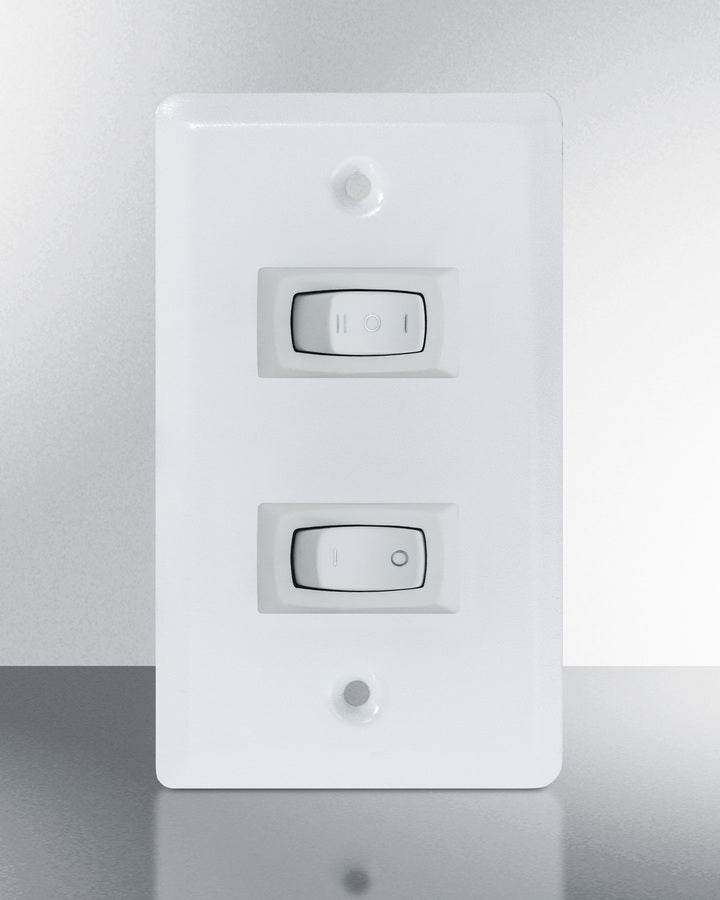

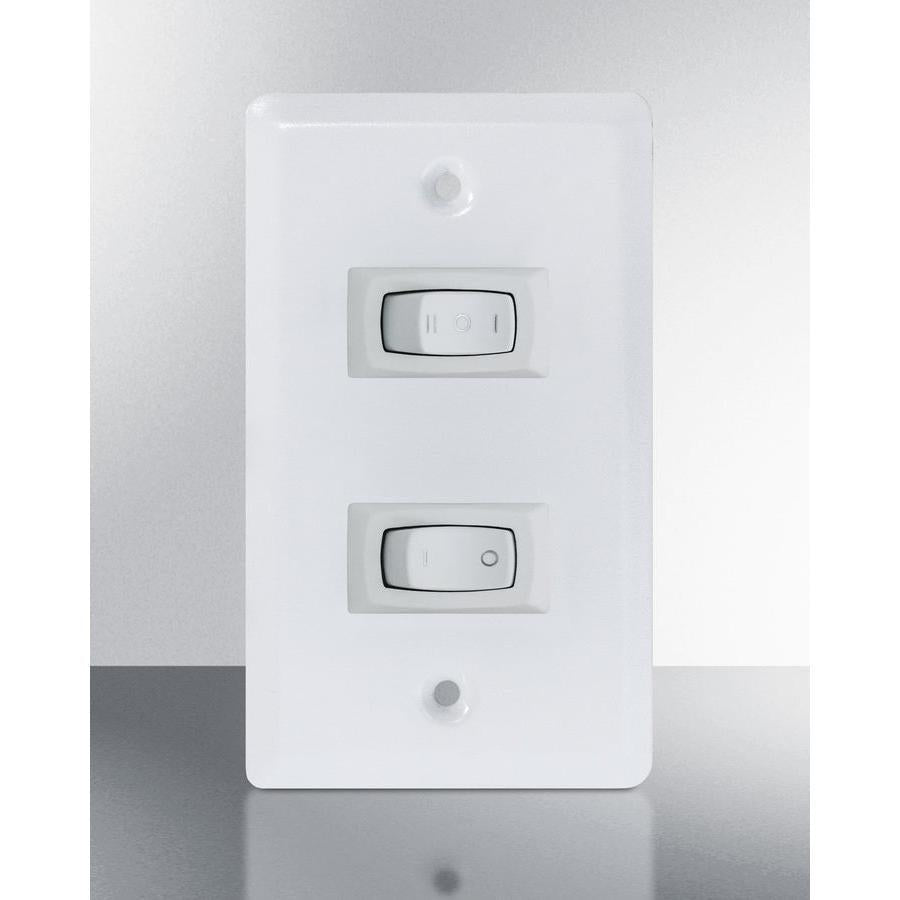

- ADA Compliant Design: Wired to run off a wall switch for enhanced accessibility, includes a remote terminal block.

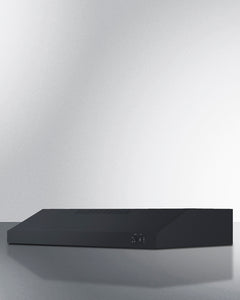

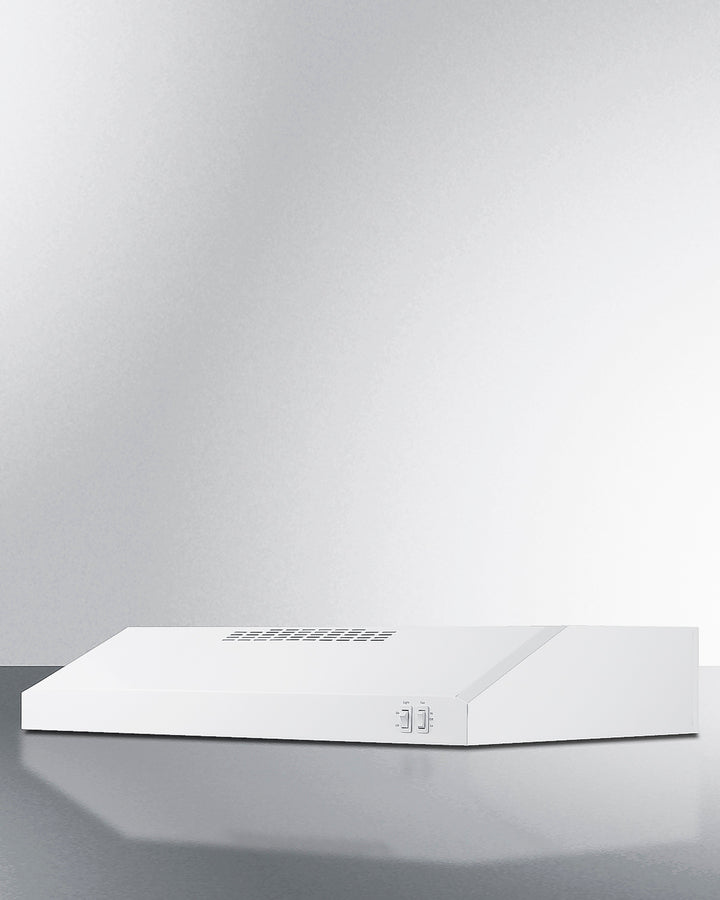

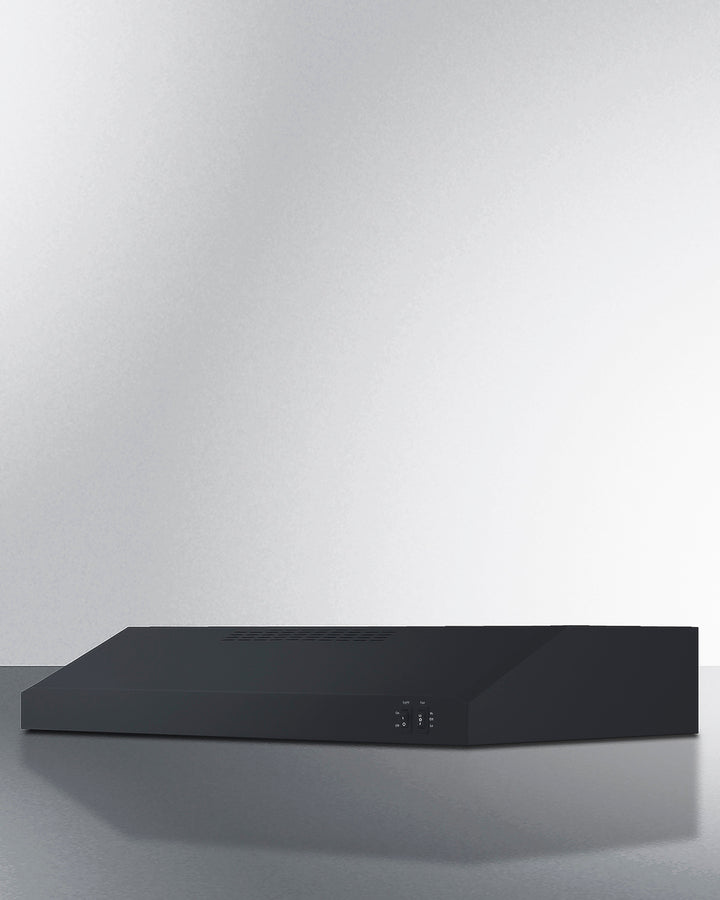

- Under Cabinet Range Hood: Low-profile design offers a classic style, perfect for finishing your kitchen.
- 30-Inch Width: Ideal for use over 30-inch cooking surfaces (additional sizes available).
- Convertible Design: Can be used for ducted venting or recirculating ventilation where external venting isn’t possible.
- Easy Conversion: Ships preset for recirculating mode but easily converts to ducted mode.

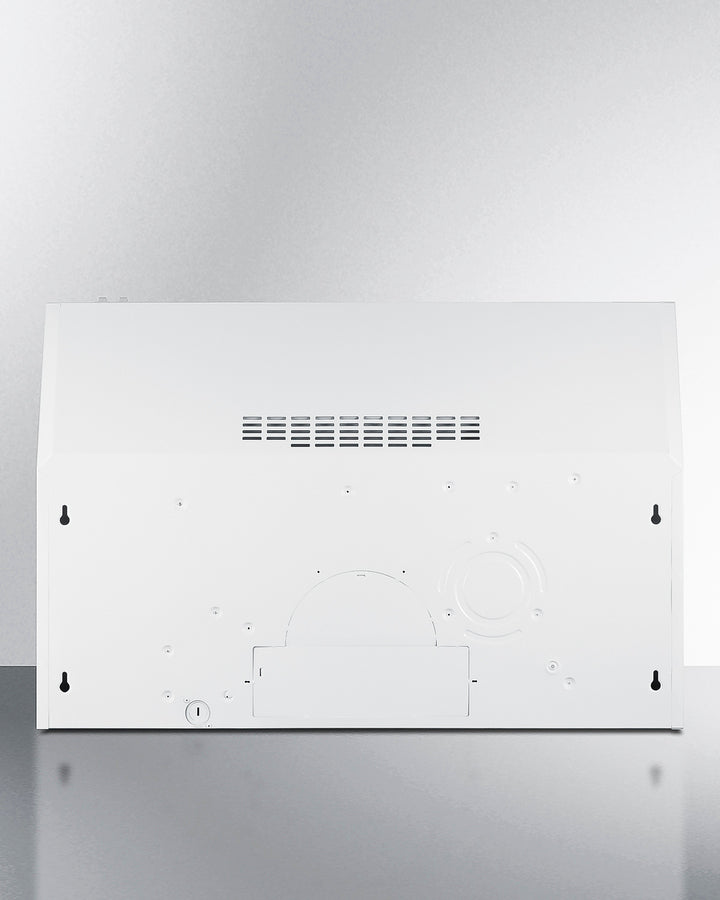

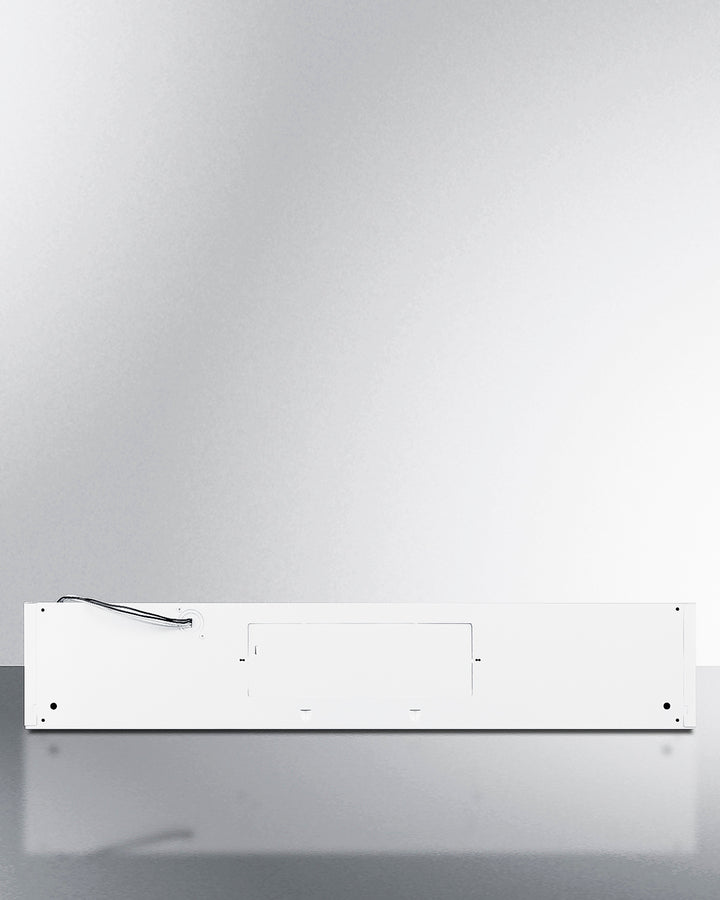

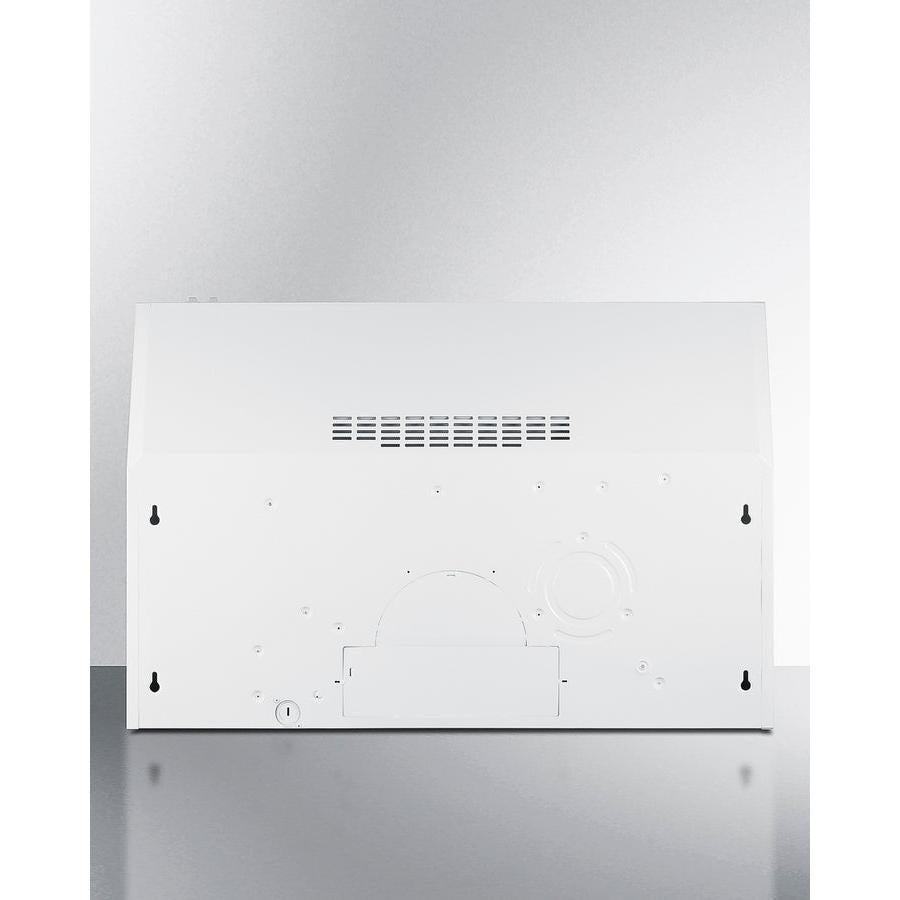

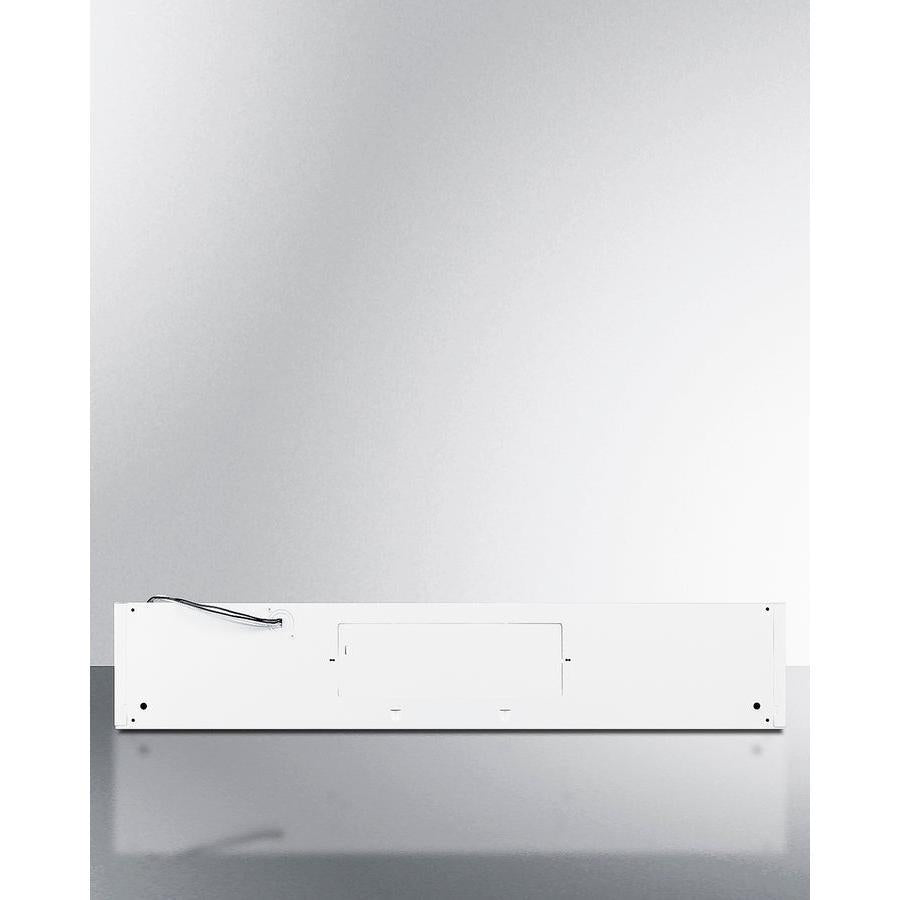

- Versatile Top or Rear Exhaust: Compatible with 3 1/4" x 10" vertical/horizontal exterior venting or 7" round vertical (transition required).
- Angled Airflow: Vents set at an upward angle to prevent smoke and odors from blowing towards the user.
- Powerful Ventilation: Operates at 300 CFM for thorough ventilation.
- Durable Construction: Made from 21 gauge steel with a powder-coated finish, heavier gauge than most under-cabinet hoods.

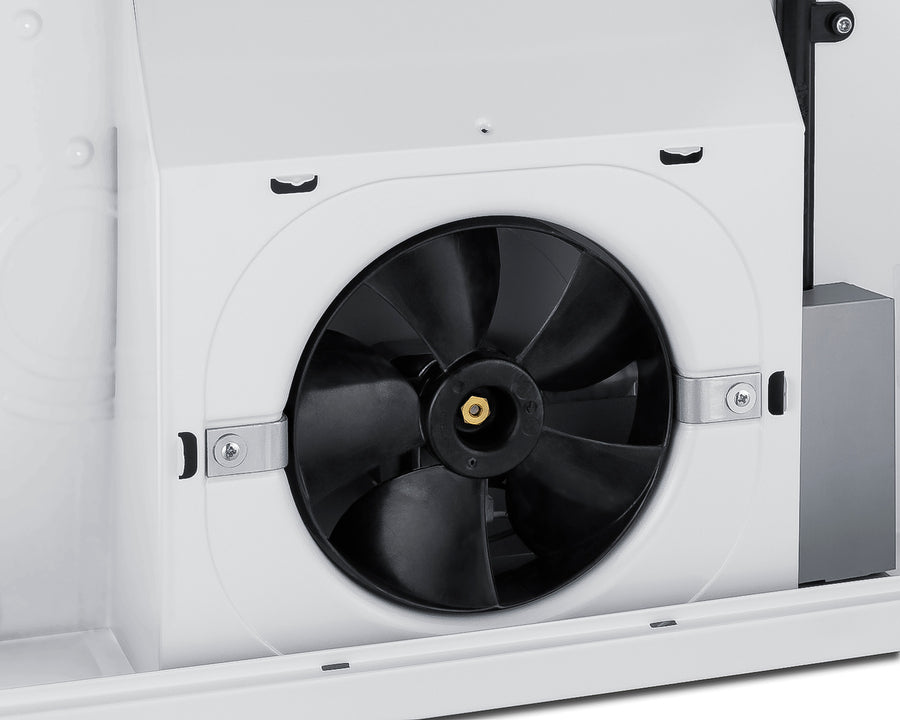

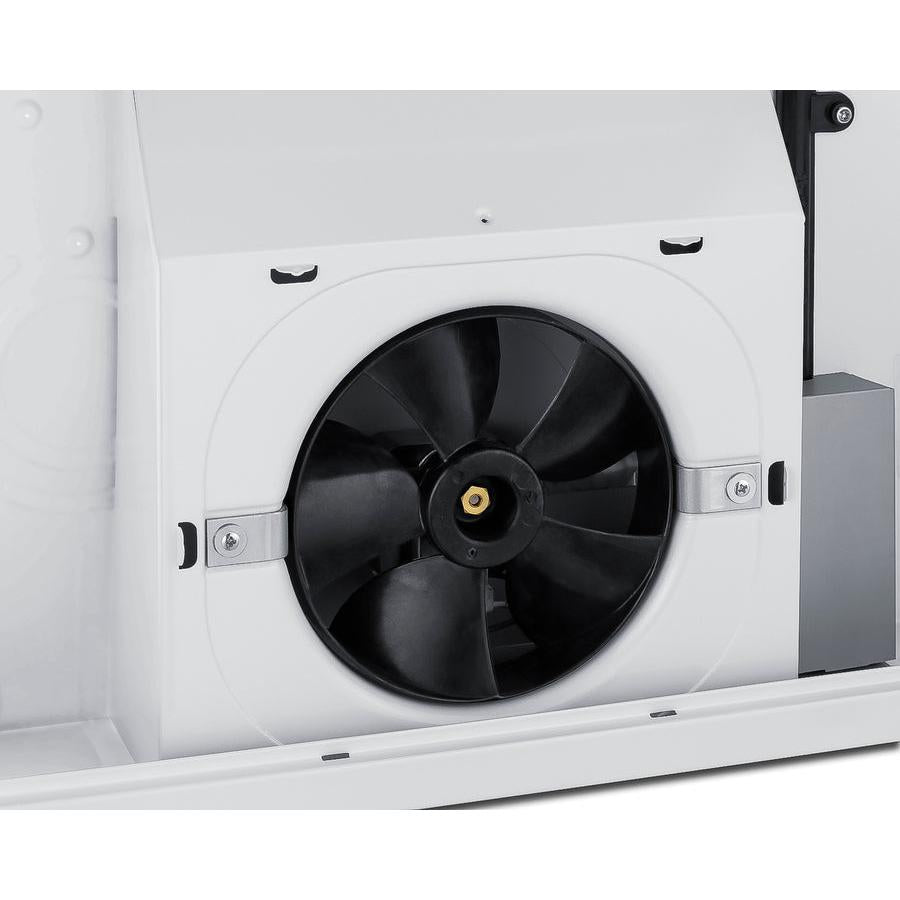

- Two-Speed Fan: High and low settings for optimal kitchen ventilation.
- Standard Bulb Compatibility: Easily holds a standard incandescent light bulb, no tools required for installation.

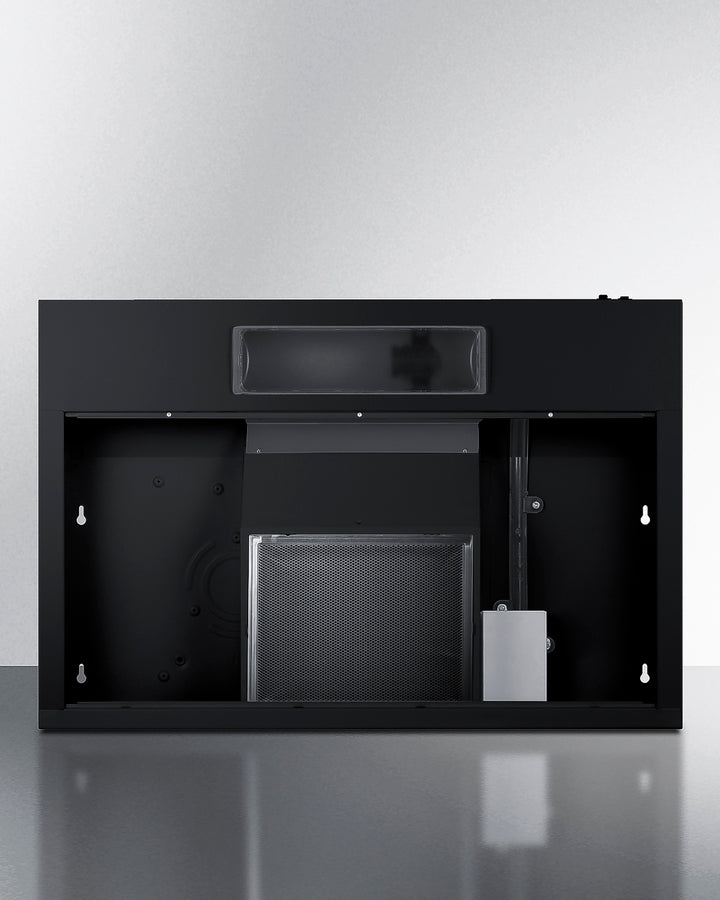

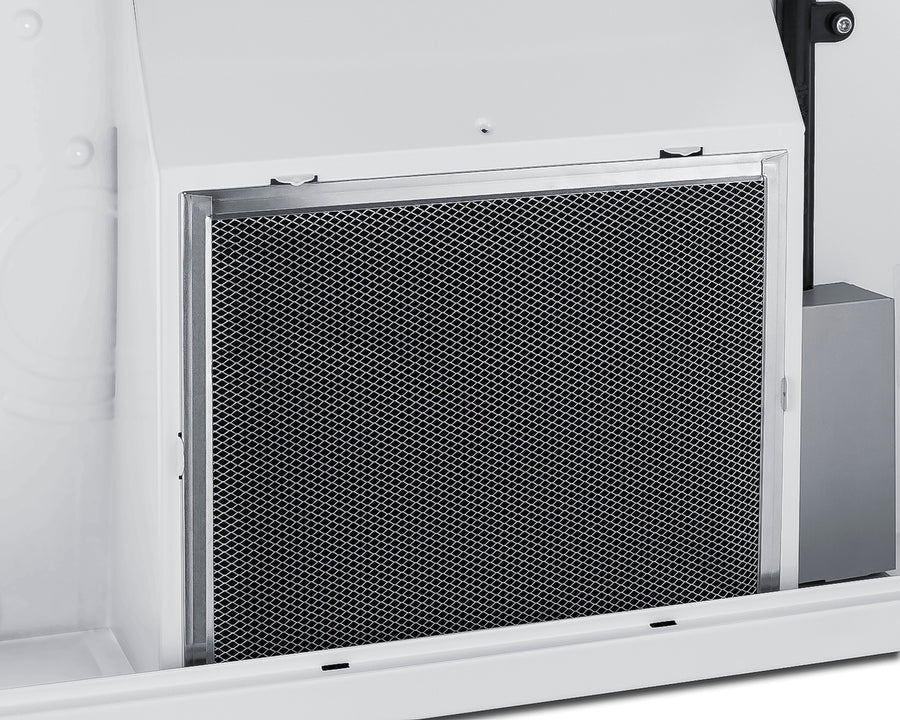

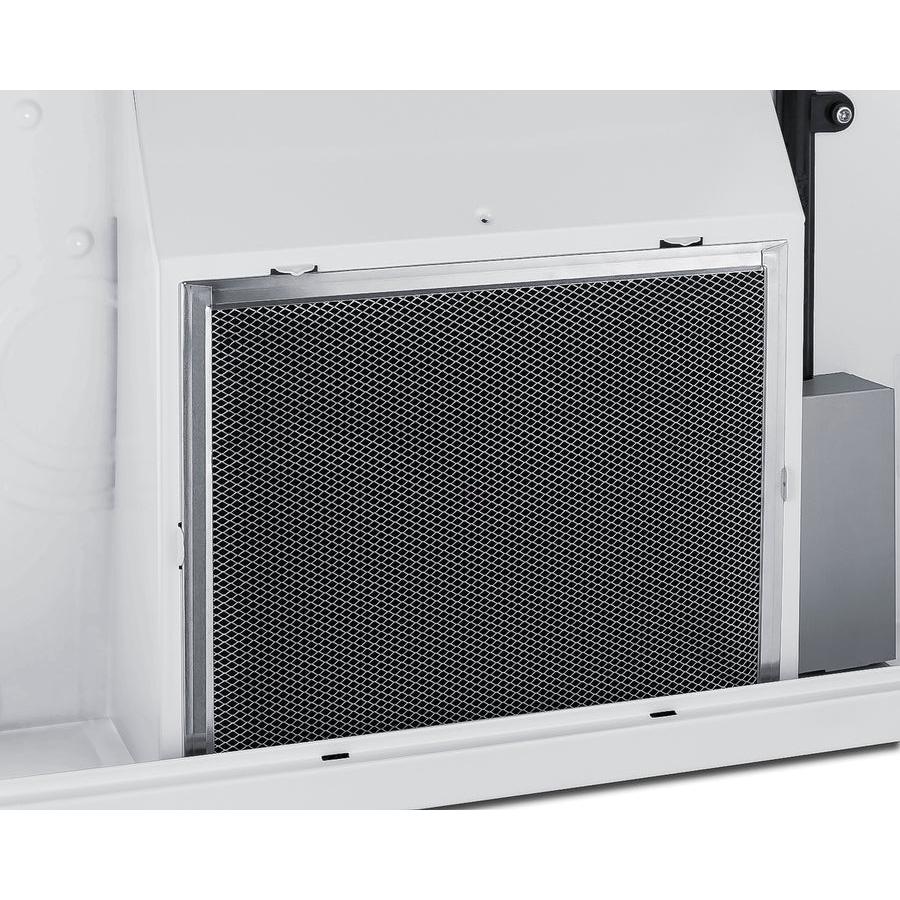

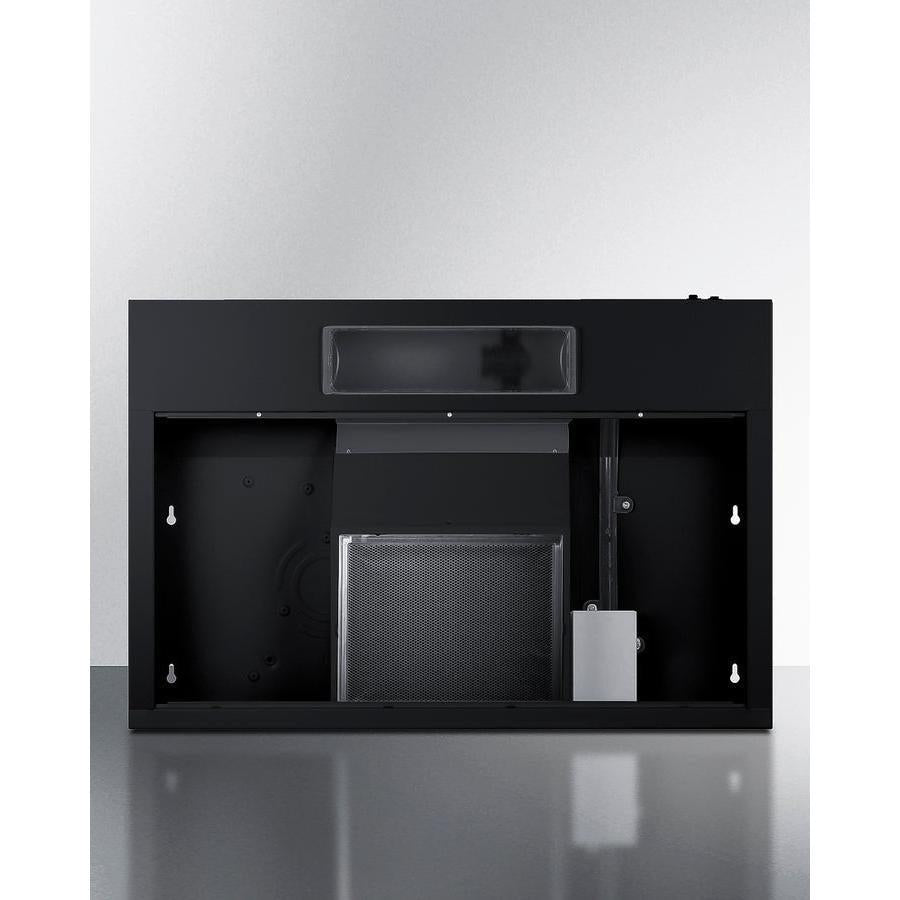

- Combination Charcoal/Aluminum Mesh Filter: Absorbs smoke, grease, and odors for a cleaner kitchen experience.
- Removable Filter: Snap-in design for easy removal and replacement.

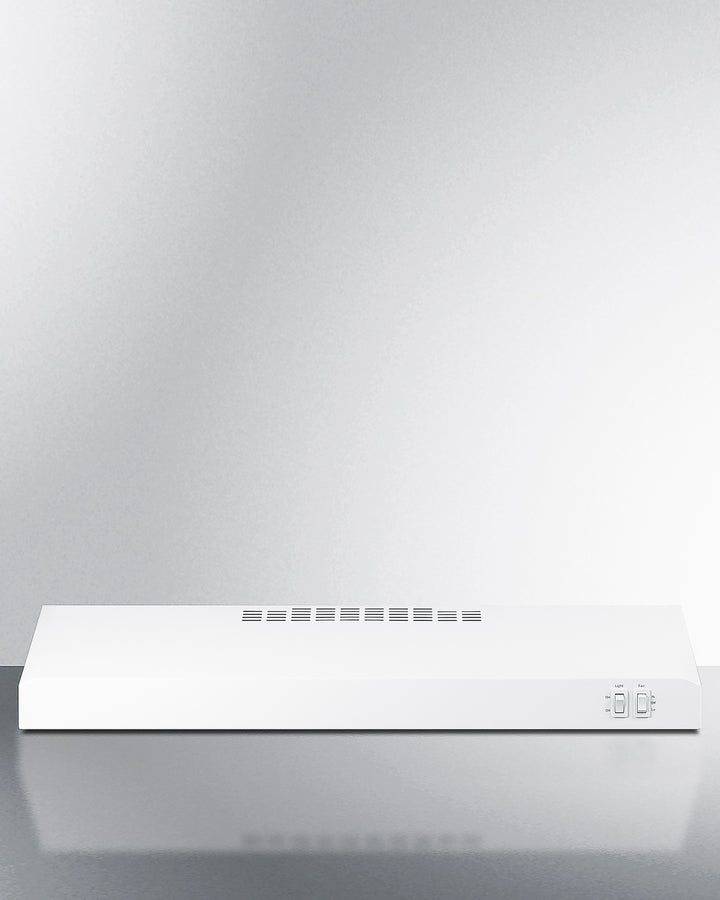

- Rocker Switch Controls: Convenient front-located on/off and high/low switches for managing light and fan.
- Professional Installation: Designed for hard-wiring by a licensed professional.
- Made in North America: TAA compliant.
DESCRIPTION

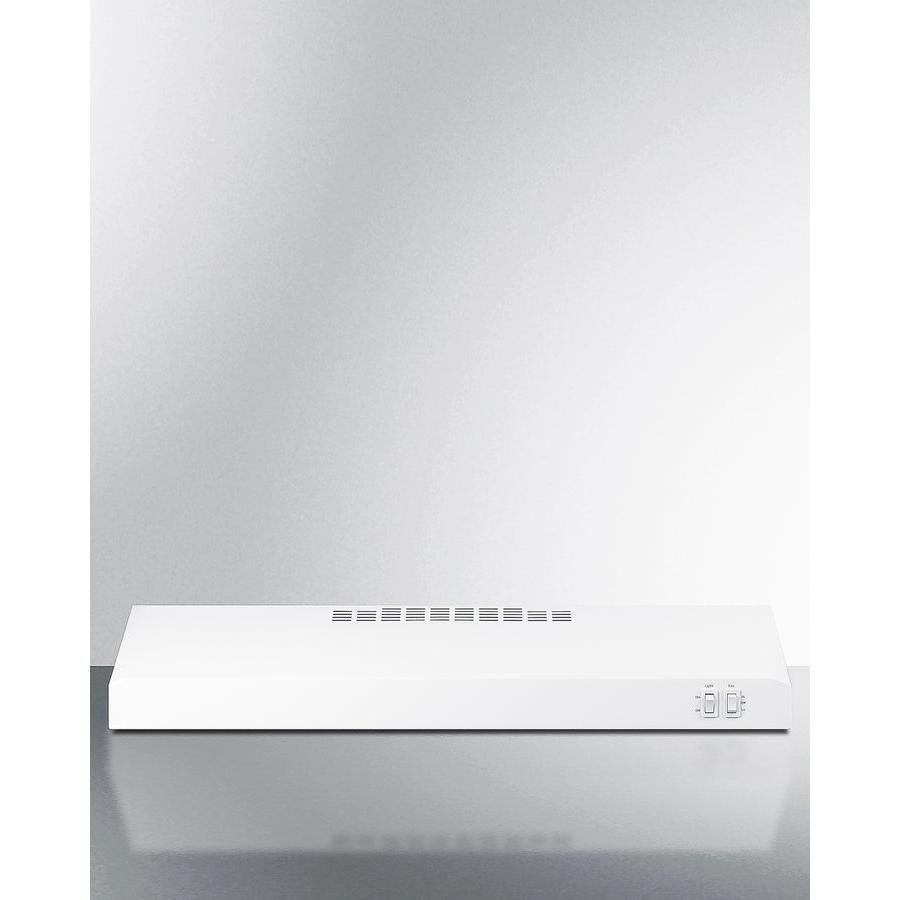

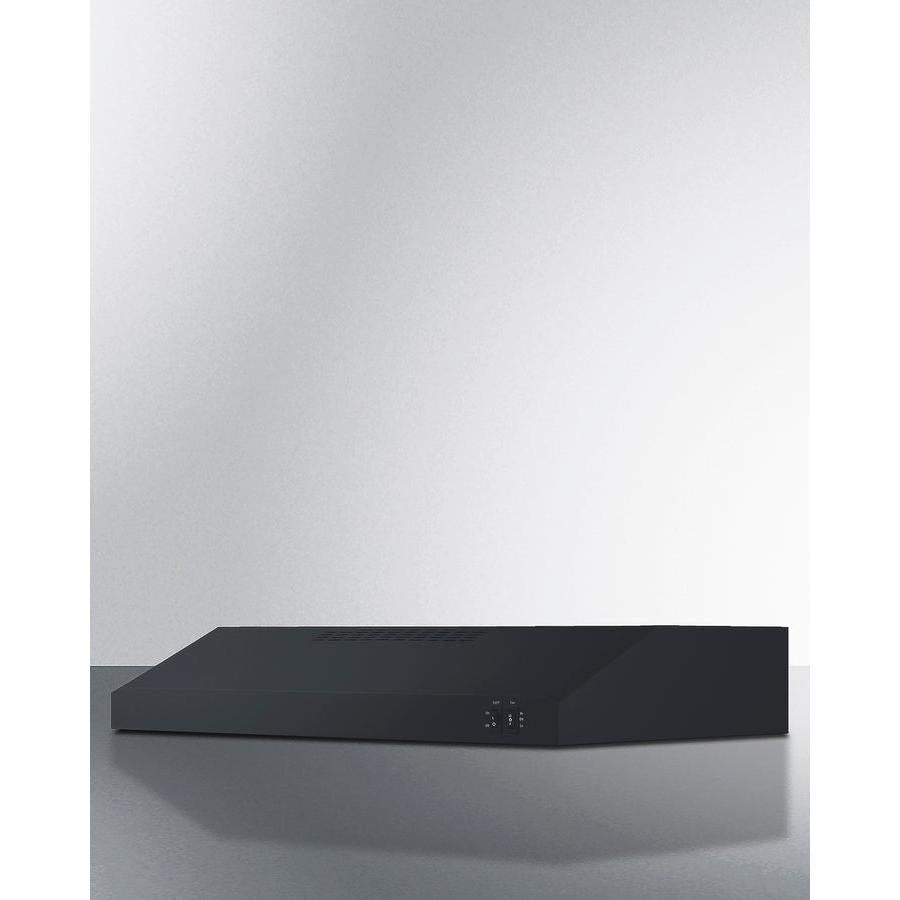

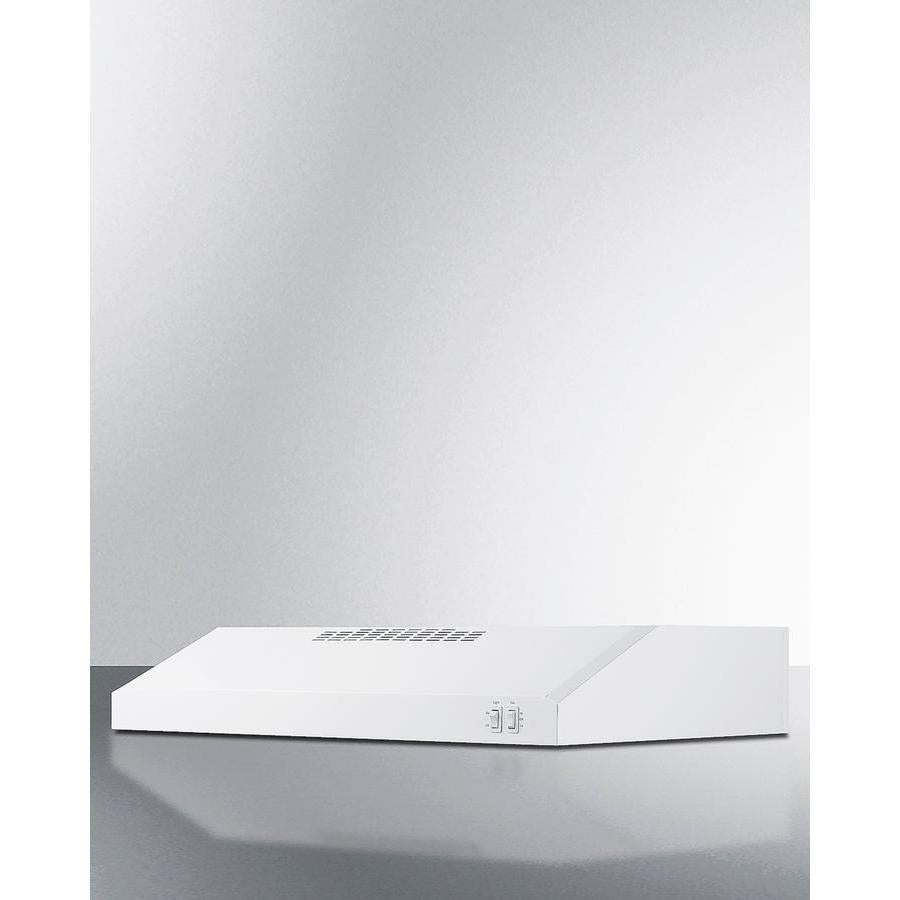

Summit’s ADA Compliant 30” wide range hood is perfect for apartments, senior living kitchens, hotel suites, and smaller spaces. Crafted from durable 21 gauge galvanized steel, it features a sleek white or black finish. This hood is wired for a wall switch, allowing controls to be installed at an accessible height per ADA guidelines.
The unit operates at 300 CFM, ensuring effective ventilation. It ships ready for ductless/recirculating use but can be easily converted to a ducted system. A combination aluminum mesh/charcoal filter is included to absorb grease, smoke, and odors. The hood also accepts a standard light bulb (not included) with no tools needed for installation or maintenance.
This range hood does not include a power cord and is designed to be hard-wired by a licensed professional.
Explore Summit’s full line of ADA-compliant range hoods, available in various colors and styles.
DOWNLOADS
- Brochure: HC30WWADA.pdf
- Use & Care Manual: HC_ADA_Range_Hood_Manual_10-10-23.pdf
