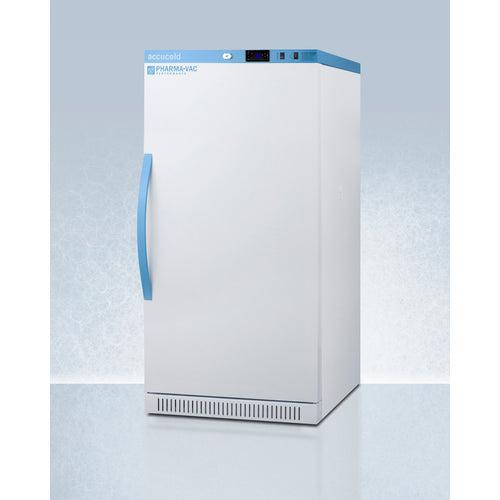

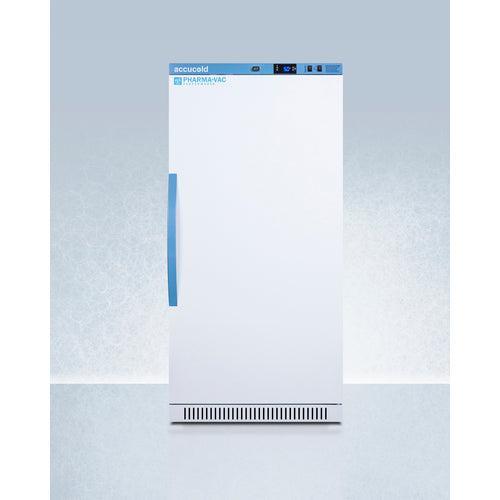

Summit 23" Wide 8 Cu.Ft. Upright Vaccine Refrigerator with Removable Drawers - ARS8PVDR

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Intuitive controls let you adjust the interior temperature between +2 to +8ºC

Powder-coated handle with naturally occurring silver ions to help reduce germ spread

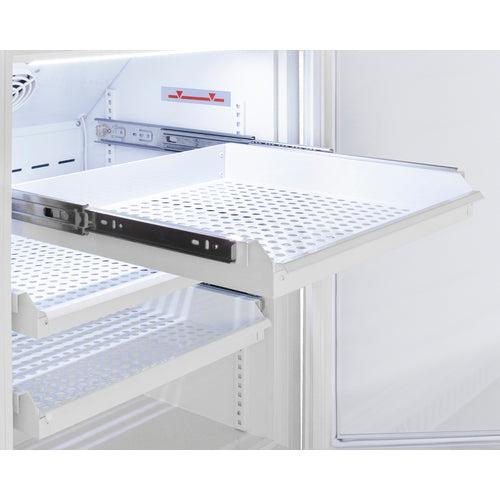

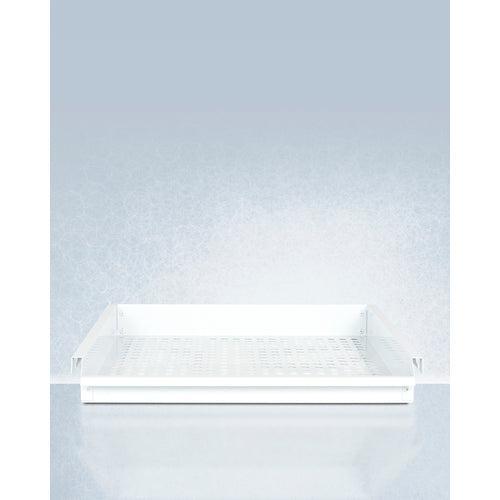

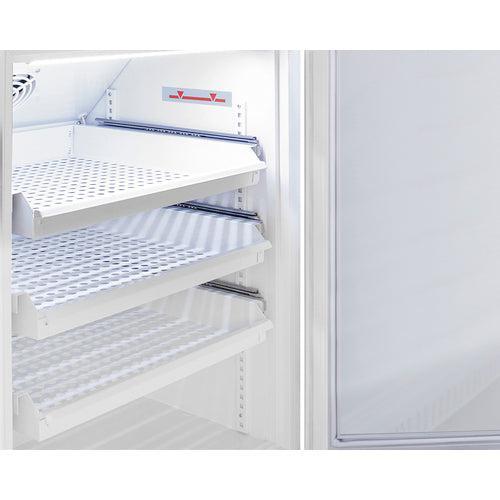

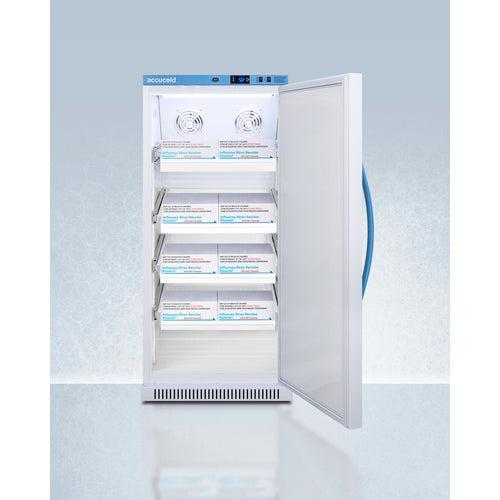

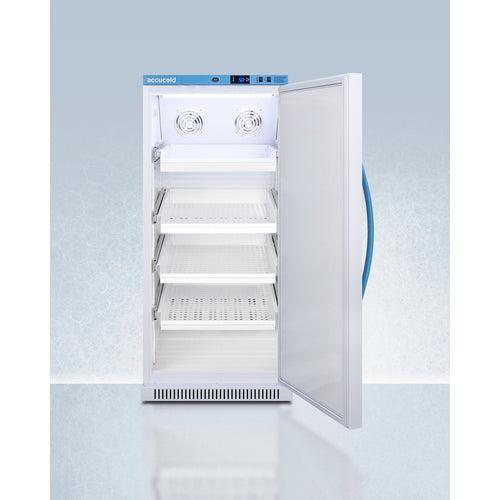

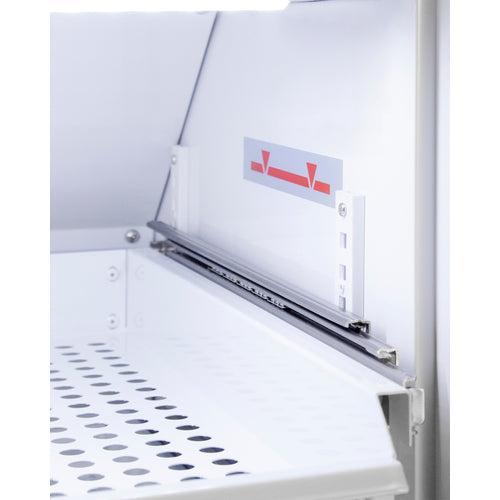

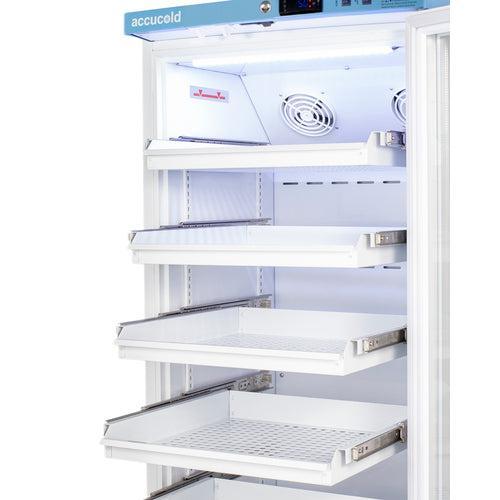

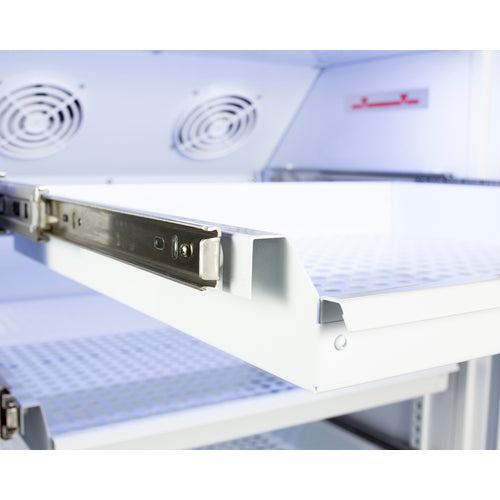

Four drawers made from powder-coated aluminum glide out smoothly for convenient storage, with perforated bottoms to ensure proper air circulation

Drawers can be easily removed for convenient transporting of contents to a lab counter or work station

Visual and audible alarms alert if the interior temperature rises or falls out of set range

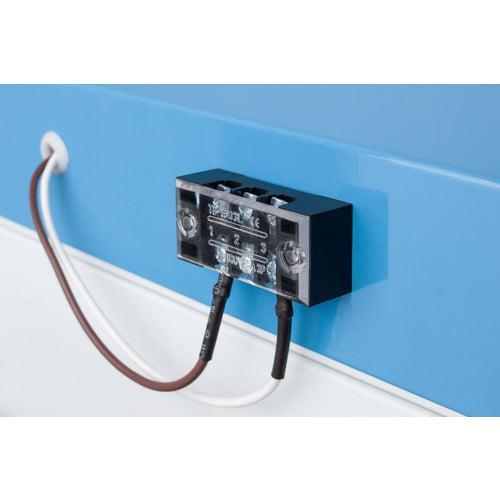

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Battery-powered alarm sounds if the power connection is interrupted

Audible and visual alarm warns if the sensor is disrupted

Control panel requires password entry to adjust the parameters beyond the set point

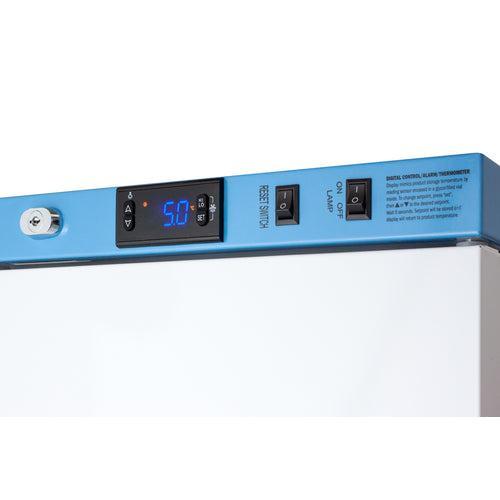

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Control panel provides a readout of the low and high temperatures in 15 minute increments

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Energy efficient LED lighting with internal on/off switch

Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing

Secure three-pronged cord for added unit safety

User-reversible door swing for added flexibility

Quality door gaskets ensure a tight seal for energy savings and improved performance

2 years parts and labor/5 years compressor

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, with a powder-coated silver ion handle that helps prevent germ spread. The ARS8PVDR is an 8 cu.ft. all-refrigerator with an adjustable control range from +2 to +8ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Inside, the ARS8PVDR utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with two internal fans ensures excellent temperature stability and uniformity with rapid recovery after door openings. Four white powder-coated aluminum drawers provide ample storage and easy organization. Positioned on ball-bearing glides, the drawers offer full-extension for complete product access. Additionally, each drawer is removable allowing for transport of contents as needed. The drawers also lock into place for added security, while the perforated bottom ensures proper ventilation throughout the unit. LED internal lighting with an on/off rocker switch attractively illuminates the interior for easy viewing. The interior is constructed from white powder-coated metal to ensure added durability and better temperature retention.  The ARS8PVDR comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right-hand swing and self-closing function (note: self-closing is disabled once reversed to LHD). This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, the ARG8PVDR provides an energy-efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, door options, and units with a combination of standard shelving and drawers are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

DOWNLOADS



BROCHURE w/ DRAWINGS
ARS8PVDR.pdf





TECHNICAL DRAWING (.dwg)
ARS8PVDR_REF.__A-C_2018___1_.dwg





USE & CARE
ARG_ARS_Performance_Series_PV-ML_Use_and_Care__10.2021.pdf
